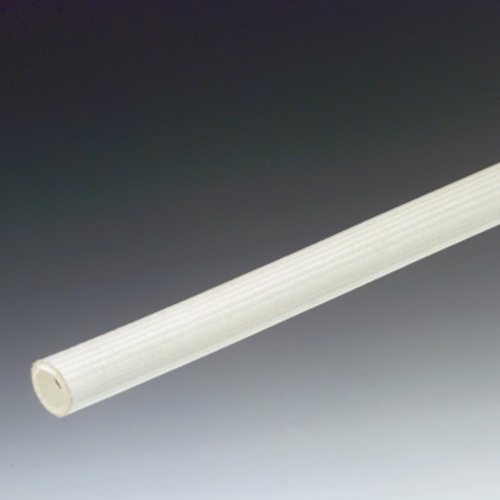

Silicone Pressure Tubing - flexible
Product specification Extremely flexible pressure tubing, also in the cold The jacket is... more
Product specification
Extremely flexible pressure tubing, also in the cold
The jacket is tightly vulcanized on the core tubing and impregnated with silicone rubber
Good resistance to ozone, aging, and weather
Antiadhesive surface
Technical specification
Material: Silicone (silicone rubber)
Colour: milky-transparent
Temperature range: -50 to +180 °C, for a short time +250 °C

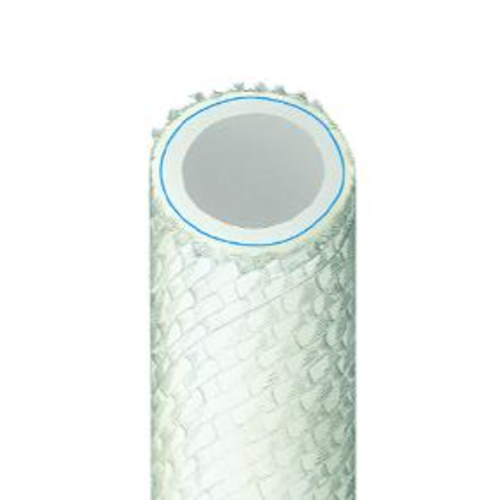

Insert: a layer of glass silk braiding
Design: inside smooth, milky and bordered; outside silicone impregnation
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|
12449 |
|
4 | 8 | 10 | 30 | 5 | 164.00 | |
12450 |
|
4 | 8 | 10 | 30 | 10 | 270.00 | |
12451 |
|
5 | 9 | 10 | 35 | 5 | 183.00 | |
12452 |
|
5 | 9 | 10 | 35 | 10 | 298.00 | |
12453 |
|
6 | 10 | 10 | 40 | 5 | 197.00 | |
12454 |
|
6 | 10 | 10 | 40 | 10 | 323.00 | |
12455 |
|
8 | 12 | 10 | 45 | 5 | 268.00 | |
12456 |
|
8 | 12 | 10 | 45 | 10 | 444.00 | |
12457 |
|
10 | 14 | 10 | 50 | 5 | 322.00 | |
12458 |
|
10 | 14 | 10 | 50 | 10 | 529.00 | |
12459 |
|
13 | 18 | 10 | 60 | 5 | 459.00 | |
12460 |
|
13 | 18 | 10 | 60 | 10 | 778.00 |
