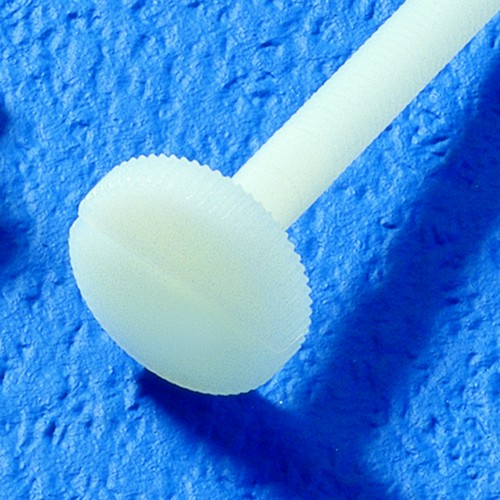

Knurled Thumb Screw (DIN 654) made of PP

Technical specification Material: PP (polypropylene) Colour: natural... more

Technical specification

Material: PP (polypropylene)

Colour: natural

Regulations: DIN 654

General Information Resistant to corrosion, abrasion and to most chemicals Extremely good... more

General Information

Resistant to corrosion, abrasion and to most chemicals

Extremely good impact toughness and notch impact strength

High surface hardness

Resistant to hydrolysis

Insulating against moisture and electricity

This material should not be used at freezing temperatures, because of embrittlement at temperatures below 0 °C

Chemical features:

Good resistance to alcohols, ketones, alkalis and acids (except strong and oxidizing acids); resistant to fats and oils, including mineral oils and fuels.

Material specification:

PP is a universally usable standard plastic with excellent properties

PP is sterilizable and has good electrical properties

Weldable; bondable only after pretreatment

PP is similar to PE (polyethylene), but more fat- and oil-resistant, and also features a higher hardness and stiffness than HDPE as well as a better resilience; its impact strength is, however, lower

UV radiation and weather: limited resistance

Material: PP (polypropylene)

Colour: natural

Density: 0.90 g/cm3 (DIN 53479)

Temperature range: 0 to +100 °C

Elastic modulus: 1,350 N/mm2 (ISO 527)

Yield stress: 30 N/mm2 (ISO 527-1)

Tearing strength: 25 - 40 N/mm2 (DIN 53455)

Elongation at break: 70 % (DIN 53455)

Impact resistance: without break (DIN 53453)

Notch impact strength: 7 kJ/m2 (DIN 53453)

Ball pressure hardness: 70 N/mm2 (DIN 53456)

Coefficient of sliding friction against steel (dry): approx. 0.30 - 0.40

Thermal conductivity: 0.22 W/m * K (DIN 52612)

Shore hardness D: 70° (DIN 53505)

Volume resistivity: 1017 Ohm x cm (DIN 53482)

Surface resistance: 1013 Ohm (DIN 53482)

Dielectric constant: 2.27 at 50 Hz (DIN 53483)

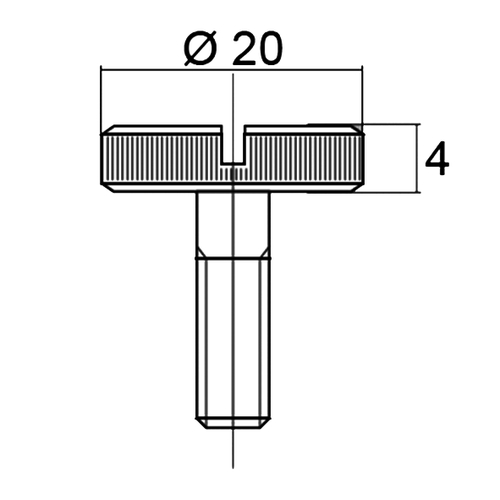

Item Image External thread Gewindelänge
mm
D
mm
l1
mm
d1
mm
l2
mm
Einheit
Stück
Price
Euro*
Buy
335341
M5 x 0,8 6 20 4 2,4 1,7 50 60.00
335342
M5 x 0,8 6 20 4 2,4 1,7 100 101.00
335343
M5 x 0,8 8 20 4 2,4 1,7 50 65.00
335344
M5 x 0,8 8 20 4 2,4 1,7 100 105.00
335345
M5 x 0,8 10 20 4 2,4 1,7 50 65.00
335346
M5 x 0,8 10 20 4 2,4 1,7 100 105.00
335347
M5 x 0,8 12 20 4 2,4 1,7 50 65.00
335348
M5 x 0,8 12 20 4 2,4 1,7 100 105.00
335349
M5 x 0,8 16 20 4 2,4 1,7 50 65.00
335350
M5 x 0,8 16 20 4 2,4 1,7 100 105.00
335351
M5 x 0,8 20 20 4 2,4 1,7 50 69.00
335352
M5 x 0,8 20 20 4 2,4 1,7 100 116.00
335353
M5 x 0,8 25 20 4 2,4 1,7 50 69.00
335354
M5 x 0,8 25 20 4 2,4 1,7 100 116.00
335355
M5 x 0,8 30 20 4 2,4 1,7 50 69.00
335356
M5 x 0,8 30 20 4 2,4 1,7 100 116.00
335357
M5 x 0,8 40 20 4 2,4 1,7 50 69.00
335358
M5 x 0,8 40 20 4 2,4 1,7 100 116.00
335359
M6 x 1 8 20 4 2,4 1,7 50 65.00
335360
M6 x 1 8 20 4 2,4 1,7 100 105.00
335361
M6 x 1 10 20 4 2,4 1,7 50 65.00
335362
M6 x 1 10 20 4 2,4 1,7 100 105.00
335363
M6 x 1 12 20 4 2,4 1,7 50 65.00
335364
M6 x 1 12 20 4 2,4 1,7 100 105.00
335365
M6 x 1 16 20 4 2,4 1,7 50 69.00
335366
M6 x 1 16 20 4 2,4 1,7 100 116.00
335367
M6 x 1 20 20 4 2,4 1,7 50 69.00
335368
M6 x 1 20 20 4 2,4 1,7 100 116.00
335371
M6 x 1 25 20 4 2,4 1,7 50 69.00
335372
M6 x 1 25 20 4 2,4 1,7 100 116.00
335373
M6 x 1 30 20 4 2,4 1,7 50 73.00
335374
M6 x 1 30 20 4 2,4 1,7 100 122.00
335375
M6 x 1 40 20 4 2,4 1,7 50 73.00
335376
M6 x 1 40 20 4 2,4 1,7 100 122.00
335377
M6 x 1 50 20 4 2,4 1,7 50 73.00
335378
M6 x 1 50 20 4 2,4 1,7 100 122.00
335379
M6 x 1 60 20 4 2,4 1,7 50 73.00
335380
M6 x 1 60 20 4 2,4 1,7 100 122.00
