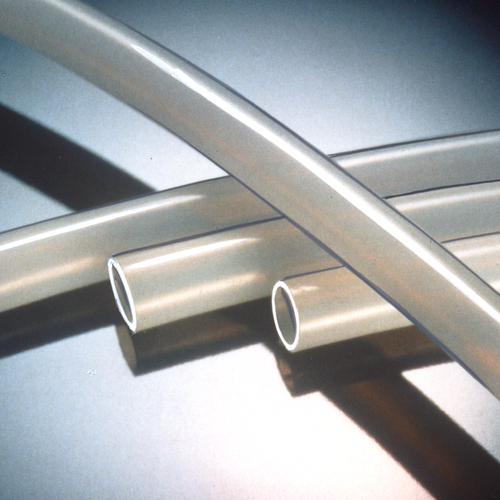

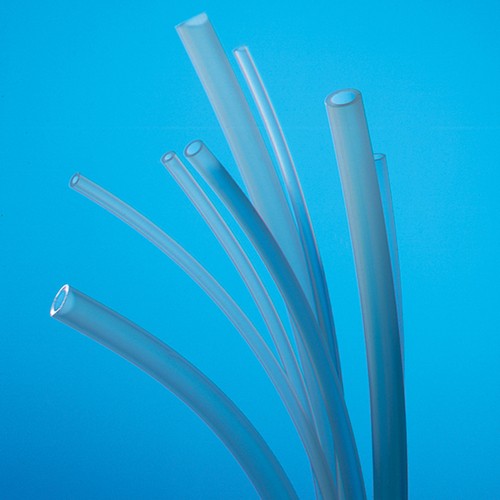

PA Tubing for Medical Engineering

Application area Hospital technology, hygiene technology, medical engineering, sterile... more

Application area

Hospital technology, hygiene technology, medical engineering, sterile technology

Product specification

Conveying and pressure tubing

Good mechanical stability

Good abrasion resistance

Good impact resistance

Good coefficient of sliding friction

Good temperature resistance

Smooth surface

Physiologically absolutely safe

Well tolerated by tissues, lack of tissue irritation and toxicity, thus suitable for surgery

Excellent material for i.v. cannulation

Medically pure, non-toxic

Technical specification

Material: PA 11 (polyamid 11, flexible); PA 6 (semirigid polyamide 6)

Colour: transparent

Temperature range: -40 to +80 °C

Sterilization: autoclavable (+121 °C); gas (ethylene oxide); gamma-rays

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	Ausführung	Einheit m	Price Euro*
10158	1	1,78	5	flexibel	5	40.00
10159	1	1,78	5	flexibel	15	84.00
10160	1,5	2,1	12,5	flexibel	5	45.00
10161	1,5	2,1	12,5	flexibel	15	122.00
10164	1,9	3,18	17,9	flexibel	5	74.00
10165	1,9	3,18	17,9	flexibel	15	201.00
10170	0,25	0,75	35,2	halbstarr	5	25.00
10171	0,25	0,75	35,2	halbstarr	15	68.00
10176	1	1,78	20,3	halbstarr	5	40.00
10177	1	1,78	20,3	halbstarr	15	84.00
