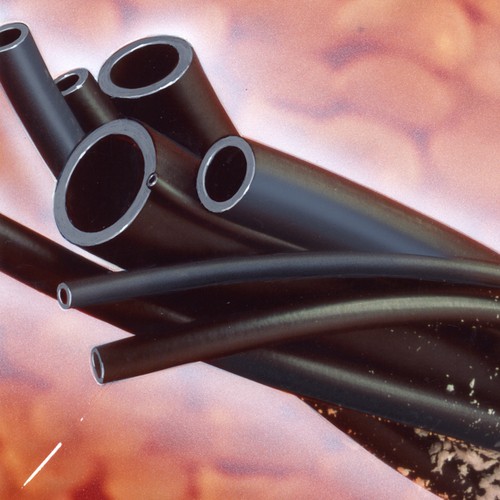

EPDM Chemical Tubing

Application area Chemical engineering, plant construction, process technology, mechanical... more

Application area

Chemical engineering, plant construction, process technology, mechanical engineering

Product specification

Extremely elastic rubber compound

Best resistance to many dilute alkalis, acids, and polar solvents, except to mineral oils

Very good resistance to weather

Good resistance to aging, heat, and cold

Chemical tubing resistant to hot water and antifreeze agents

Technical specification

Material: EPDM (ethylene-propylene-diene rubber)

Colour: black

Shore hardness A: 60° ±5° (DIN 53505)

Temperature range: -35 to +120 °C

Density: 1.18 ±0.2 g/cm³ (DIN 53479)

Tensile strength: 10 MPa (DIN 53504)

Elongation at break: 250 % (DIN 53504)

Compression set: at +100 °C / 2 h: 20 % (DIN 53517), at -25 °C / 2 h: 70 % (DIN 53517)

Tolerance: DIN ISO 3302-1 E2

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	Wandstärke mm	Einheit m	Price Euro*
330122	3	7	2	5	52.00
330123	3	7	2	15	125.00
330124	4	7	1,5	5	48.00
330125	4	7	1,5	15	116.00
330126	4	8	2	5	58.00
330127	4	8	2	15	142.00
330128	5	8	1,5	5	52.00
330129	5	8	1,5	15	127.00
330130	6	9	1,5	5	63.00
330131	6	9	1,5	15	144.00
330132	6	10	2	5	73.00
330133	6	10	2	15	174.00
330134	7	11	2	5	75.00
330135	7	11	2	15	176.00
330136	8	12	2	5	84.00
330137	8	12	2	15	202.00
330138	10	14	2	5	103.00
330139	10	14	2	15	249.00
330140	12	16	2	5	120.00
330141	12	16	2	15	287.00
