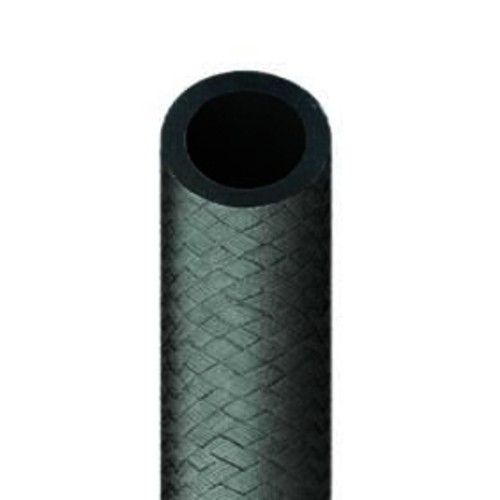

NBR Fuel Tubing - DIN 73379, type: B | Reichelt Chemietechnik

Application area Engine construction, automotive engineering, refrigerator technology,... more

Application area

Engine construction, automotive engineering, refrigerator technology, mineral oil industry, plant construction, chemical engineering, process engineering

Product specification

Fuel resistant chemical and hydraulic tubing according to DIN 73379

Resistant to fuels, fluids on mineral oil and glycol base, lubricants, animal oils, silicones, cooling water as well as diluted acids and alkalis at room temperature.

Good abrasion resistance

Good resistance to aging

Technical specification

Material: NBR (butadiene-acrylonitrile rubber)

Colour:

Liner: black

Jacket: with black textile braiding

Temperature range: -40 to +90 °C, for a short period +120 °C

Medium temperatures:

Fuels: +40 °C (benzene content up to max. 50 %)

Premium fuels: +40 °C

Diesel fuels: +80 °C

Universal fuels: +40 °C

Cooling materials: +90 °C (glycols, glysantine etc.)

Water: +90 °C

Air: +80 °C

Aqueous solutions: +80 °C (without oxid. materials)

Resistance to cold: -40 °C

Max. operating pressure: 15 bar at +20 °C

Bursting pressure: 60 bar at +20 °C

Regulations: DIN 73379 March 1982 Type: B

Tubing imprint: DIN 73379

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	Einheit m	Price Euro*
340162	3,2	7	15	5	73.00
340163	3,2	7	15	10	135.00
340164	3,5	7,5	15	5	82.00
340165	3,5	7,5	15	10	155.00
340166	4	9	15	5	88.00
340167	4	9	15	10	163.00
340168	4,5	9,5	15	5	90.00
340169	4,5	9,5	15	10	167.00
340170	5	10	15	5	97.00
340171	5	10	15	10	182.00
340172	5,5	10,5	15	5	101.00
340173	5,5	10,5	15	10	167.00
340174	6	11	15	5	103.00
340175	6	11	15	10	191.00
340176	7	12	15	5	116.00
340177	7	12	15	10	217.00
340178	7,5	12,5	15	5	118.00
340179	7,5	12,5	15	10	219.00
340180	8	13	15	5	120.00
340181	8	13	15	10	223.00
340182	9	14	15	5	131.00
340183	9	14	15	10	249.00
340184	11,5	17	15	5	165.00
340185	11,5	17	15	10	311.00
