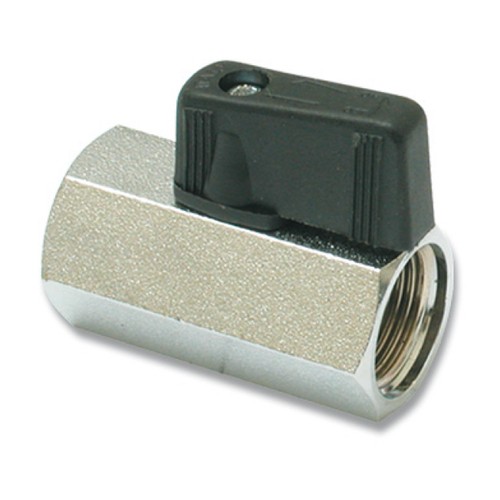

Ball Cock made of Brass - internal thread, with control knob

Preview: Ball Cock made of Brass - internal thread, with control knob Preview: Ball Cock made of Brass - internal thread, with control knob
Ball Cock made of Brass - internal thread, with control knob
Ball Cock made of Brass - internal thread, with control knob

Description General Information
Description
Product specification Sleeves on both sides, G-thread; control knob more
Close menu

Product specification

Sleeves on both sides, G-thread; control knob

General Information
General Information Shut-offs in temperature-loaded pressure line systems for neutral media.... more
Close menu

General Information

Shut-offs in temperature-loaded pressure line systems for neutral media.

Compactly constructed, easily operable ball cock system with low weight and small dimensions.

Material:

Cock plug: brass, polished

Housing: brass, compression moulded and nickel-plated

Ball seal: PTFE (Polytetrafluoroethylene)

Stem seal: FPM (fluorinated rubber)

Control handle: polyamide, black

Max. operating pressure: 15 bar bei +20 °C

Stop: 90°

Flow direction: arbitrary

Temperature range: -20 °C to +100 °C

Weight: <140 g

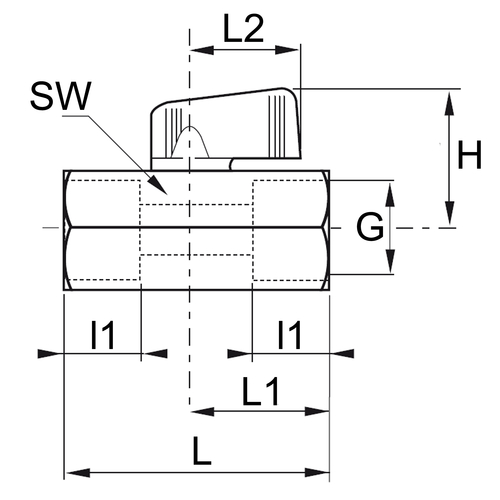

Item Image Internal thread NW
mm
 H
mm
 l1
mm
 L
mm
 L1
mm
 L2
mm
 SW
mm
 Einheit
Stück
 Price
Euro* 		Buy
46447
G 1/4" 8 31 11 41,5 22 22,5 21 1 17.00
46448
G 3/8" 8 31 11 41,5 22 22,5 21 1 17.00
46449
G 1/2" 10 33 13 49 26 22,5 25 1 17.00
