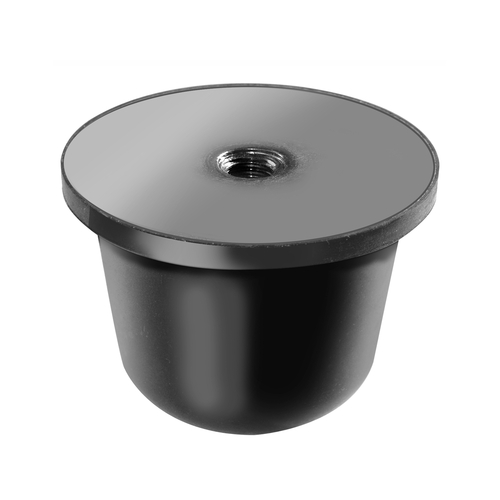

Rubber-Metal Buffer - rounded, with internal thread

Application area As mounts for vibration-reducing installation of sensitive equipment For... more

Application area

As mounts for vibration-reducing installation of sensitive equipment

For protection of floors

As elastic bump stop, e.g. for stroke limitation in vehicles

Product specification

Bump stops made of rubber in various sizes

With metal plate with internal thread in various sizes on one side only

Medium rubber hardness

For medium pressure load

Residues / discolorations caused by rubber can remain on sensitive surfaces

General Information Material: Rubber parts: natural rubber Metal parts: steel St37... more

General Information

Material:

Rubber parts: natural rubber

Metal parts: steel St37

Colour:

Rubber parts: black

Metal parts: white zinc plated

Shore hardness: 55° (rubber parts)

Max. temperature: +80 °C

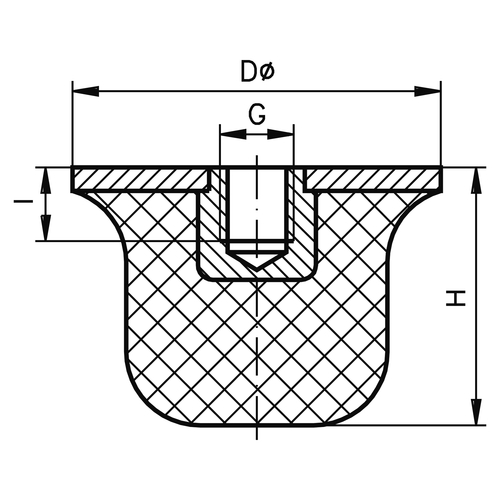

Item Image Average spring rate CD
N/mm
Admissible compressive load1
N
D
mm
H
mm
Thread (G) l
mm
Weight
g
Unit
piece
Price
Euro*
Buy
707097
100 400 50 35 M10 x 1,5 10 88 5 65.00
707098
100 400 50 35 M10 x 1,5 10 88 10 100.00
707099
170 1.200 80 60 M12 x 1,75 12 308 5 180.00
707100
170 1.200 80 60 M12 x 1,75 12 308 10 270.00
707101
260 3.000 125 90 M16 x 2 16 830 5 265.00
707102
260 3.000 125 90 M16 x 2 16 830 10 415.00
