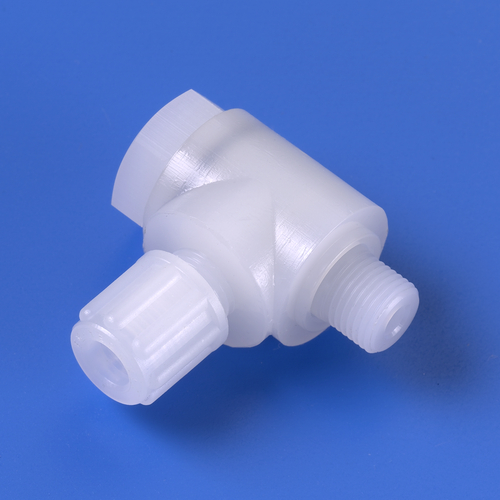

Elbow Swiveling Connector with Male Thread made of PP or PVDF

Product specification Tubing connection on one side, swiveling; male G-thread on the other side more

Product specification

Tubing connection on one side, swiveling; male G-thread on the other side

General Information The new swivel connectors of Series EMP-3 comprise just two parts.... more

General Information

The new swivel connectors of Series EMP-3 comprise just two parts. Fittings and flexible tubes with a defined installation position can be connected together rapidly and securely. The connector is simply screwed into the female thread of the fitting, brought into the desired position, seized and connected with the tube, thus producing a secure, tight and easy-releasable connection. The swivel connectors in the form of elbow swivel connectors or T-swivel connectors can be used in numerous applications and offer a flexible and safe solution particularly on the use of aggressive media.

PP (Polypropylene)

Gasket: FPM (fluorinated rubber)

Temperature range: +5 to +90 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

PVDF (Polyvinylidene fluoride)

Gasket: FPM (fluorinated rubber)

Temperature range: -40 to +140 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Item Image Tubing inside Ø
mm
Schlauch Außen-Ø
mm
Außengewinde D
mm
h
mm
H
mm
l1
mm
L
mm
SW
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
340978
4 6 G 1/8" 20 20,5 37,5 8 29 17 PP 4 75.00
340979
4 6 G 1/4" 20 26 43 12 29 17 PP 4 79.00
340980
4 6 G 3/8" 25 29 50,5 12 32 22 PP 4 89.00
340981
4 6 G 1/2" 30 34 60 14 34,5 27 PP 4 98.00
340982
6 8 G 1/8" 20 20,5 37,5 8 33 17 PP 4 86.00
340983
6 8 G 1/4" 20 26 43 12 33 17 PP 4 79.00
340984
6 8 G 3/8" 25 29 50,5 12 36 22 PP 4 91.00
340985
6 8 G 1/2" 30 34 60 14 38,5 27 PP 4 108.00
340986
6 10 G 1/4" 20 26 43 12 36 17 PP 4 94.00
340987
6 10 G 3/8" 25 29 50,5 12 39 22 PP 4 116.00
340988
6 10 G 1/2" 30 34 60 14 41,5 27 PP 4 143.00
340989
8 10 G 1/4" 20 26 43 12 36 17 PP 4 94.00
340990
8 10 G 3/8" 25 29 50,5 12 39 22 PP 4 116.00
340991
8 10 G 1/2" 30 34 60 14 41,5 27 PP 4 143.00
340992
8 12 G 1/4" 20 26 43 12 40 17 PP 4 129.00
340993
8 12 G 3/8" 25 29 50,5 12 43 22 PP 2 86.00
340994
8 12 G 1/2" 30 34 60 14 45,5 27 PP 2 129.00
340995
10 12 G 1/4" 20 26 43 12 40 17 PP 2 129.00
340996
10 12 G 3/8" 25 29 50,5 12 43 22 PP 2 86.00
340997
10 12 G 1/2" 30 34 60 14 45,5 27 PP 2 129.00
340998
10 14 G 3/8" 25 29 50,5 12 48 22 PP 2 150.00
340999
10 14 G 1/2" 30 34 60 14 50,5 27 PP 2 159.00
341022
4 6 G 1/8" 20 20,5 37,5 8 29 17 PVDF 1 86.00
341023
4 6 G 1/4" 20 26 43 12 29 17 PVDF 1 89.00
341024
4 6 G 3/8" 25 29 50,5 12 32 22 PVDF 1 91.00
341025
4 6 G 1/2" 30 34 60 14 34,5 27 PVDF 1 98.00
341026
6 8 G 1/8" 20 20,5 37,5 8 33 17 PVDF 1 100.00
341027
6 8 G 1/4" 20 26 43 12 33 17 PVDF 1 103.00
341028
6 8 G 3/8" 25 29 50,5 12 36 22 PVDF 1 105.00
341029
6 8 G 1/2" 30 34 60 14 38,5 27 PVDF 1 110.00
341030
6 10 G 1/4" 20 26 43 12 36 17 PVDF 1 108.00
341031
6 10 G 3/8" 25 29 50,5 12 39 22 PVDF 1 121.00
341032
6 10 G 1/2" 30 34 60 14 41,5 27 PVDF 1 131.00
341033
8 10 G 1/4" 20 26 43 12 36 17 PVDF 1 108.00
341034
8 10 G 3/8" 25 29 50,5 12 39 22 PVDF 1 121.00
341035
8 10 G 1/2" 30 34 60 14 41,5 27 PVDF 1 131.00
341036
8 12 G 1/4" 20 26 43 12 40 17 PVDF 1 121.00
341037
8 12 G 3/8" 25 29 50,5 12 43 22 PVDF 1 131.00
341038
8 12 G 1/2" 30 34 60 14 45,5 27 PVDF 1 150.00
341039
10 12 G 1/4" 20 26 43 12 40 17 PVDF 1 121.00
341040
10 12 G 3/8" 25 29 50,5 12 43 22 PVDF 1 131.00
341041
10 12 G 1/2" 30 34 60 14 45,5 27 PVDF 1 150.00
341042
10 14 G 3/8" 25 29 50,5 12 48 22 PVDF 1 150.00
341043
10 14 G 1/2" 30 34 60 14 50,5 27 PVDF 1 164.00
