Product specification

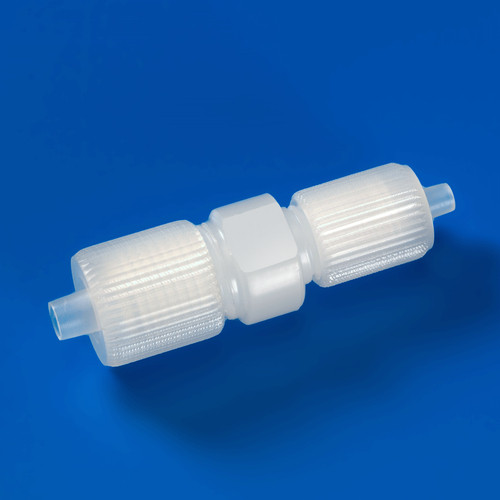

Reducing connections on both sides for imperial tubings.
General Information EMP-M1
Pressure-loadable screw connection for fixed mounting at rigid piping, apparatuses, and aggregates.
Seamlessly manufactured nozzles or thread ensure high tightness and long-term stability.
No cross-section reduction of the tubing due to special construction of locking ring and screw connection. Good resistance to media due to high-quality materials (PP, PP natural, PVDF).
Connection principle: Various connections due to three different thread types manufactured according to the standards DIN, USAS (American National Standards) and JIS (Japanese Industrial Standard).
Design: External thread on one side with G-, NPT- or UNF-thread, compression-type fitting for flexible tubing with diameters of 1/16" to 1/4" on the other side.
PP (Polypropylene)
Screw connection: PP
Locking ring: PVDF
Knurled nut: PP
Colour: grey or natural
Density: 0.90 g/cm3
Temperature range: +5 to +90 °C
Shore hardness D: 72°
Max. operating pressure: 6 bar at +20 °C
Water absorption: <0.05 %
Tensile strength: 25 - 40 N/mm2
Elongation at break: 800 %
Surface resistance: >1013 Ohm
Melt flow index MFR: 0.3 g/10 min.
PVDF (Polyvinylidene fluoride)
Screw connection, locking ring and knurled nut: PVDF
Colour: nature, slightly translucent
Density: 1.75 g/cm3
Temperature range: -40 to +140 °C
Shore hardness D: 79°
Max. operating pressure: 6 bar at +20 °C
Water absorption: <0.04 %
Tensile strength: 38 - 50 N/mm2
Surface resistance: >1013 Ohm
Melt flow index MFR: 6 g/10 min.

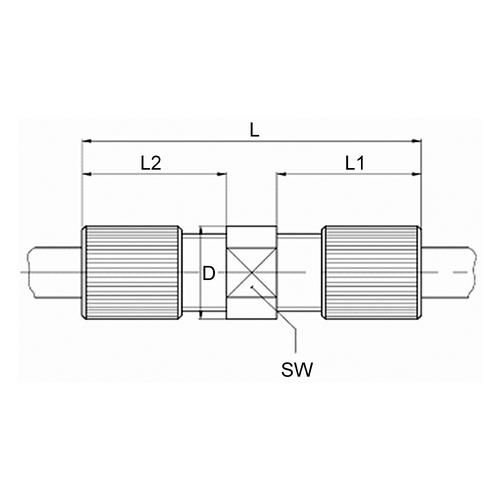

| Item | Image |
Tubing inside Ø (A) inch
|
Schlauch Außen-Ø (A) Zoll
|
Schlauch Innen-Ø (B) Zoll
|
Schlauch Außen-Ø (B) Zoll
|
D mm
|
L mm
|
L1 mm
|
L2 mm
|
SW mm
|
Werkstoff |
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 339409 |
|
3/32" | 3/16" | 1/8" | 1/4" | 12 | 43 | 17,5 | 17,5 | 10 | PVDF | 3 | 120.00 | |
