Pulleys T5 made of plastic

Product specification Pulleys made of black plastic with 2 flanges For timing belt profile... more

Product specification

Pulleys made of black plastic with 2 flanges

For timing belt profile T5 width 10 mm

With high hardness and low friction coefficient they can be used in various set-ups, even under water.

Inside these die-cast parts made of acetal resin are some cavities caused by production. These parts should therefore not be drilled too deep.

Technical specification

Material: acetal resin, in die-cast version

Bore: machined

Color: black

General Information Use for power transmission, bridging of large centre distances and... more

General Information

Use for power transmission, bridging of large centre distances and alteration of transmission ratios.

For various applications in machinery and plant engineering, in laboratory technology, in industrial and food processing plants, as well as in model making.

Quiet operation and synchronous transmission of power

Maintenance-free. Lubrication is not required.

High efficiency up to 98 %

Belt pre-tension is required

T timing belts made of polyurethane with pitch 2.5 or 5 mm. Light-coloured belts with little abrasion. For standard applications in machine building and food technology, to be used on T pulleys.

AT timing belts made of polyurethane with pitch 5 mm. Reinforced type for high loads with low space requirements. To be used on AT pulleys.

HTD timing belts made of neoprene with pitch 3, 5 or 8 mm. For high power transmission even at high speeds.

Black belts with dark abrasion (not for laboratory operations / food processing). To be used on HTD pulleys.

Notes on mounting and usage:

Pulleys must be aligned (precisely positioned)

The belt tension has to be adjusted (The overall sum of tensioning and peripheral force must not exceed the permitted tensile force of the belt.)

At least one pulley must be equipped with flanges.

And at least 6 teeth should be engaged at any time.

Timing belt drives run without lubrication.

General Information T / AT

Classical, trapezoid profile in accordance with DIN 7721 with metric dimensions

Type T: Standard type for normal set-ups in sizes T 2.5 and T5 in several widths. T timing belts only run on T pulleys.

Type AT: Reinforced type for the transmission of higher torques in size AT 5 in several widths. AT timing belts only run on AT pulleys. Due to their lower flexibility AT timing belts require a larger pulley diameter than T timing belts.

Pulleys available in aluminium (some also in plastic)

T and AT drives are not backlash-free

Good resistance against oils, fats and many chemicals

The timing belts are made of light-coloured plastic with little abrasion

Material: PUR - Polyurethane with tensile members of steel (little lengthening)

Temperature range: -30 to +80 °C

Pitch: T2.5: 2.5 mm; T5: 5.0 mm; AT5: 5.0 mm

Overall height: T2.5: 1.3 mm; T5: 2.2 mm; AT5: 2.7 mm

Tooth height: T2.5: 0.7 mm; T5: 1.2 mm; AT5: 1.2 mm

Tensile force: T2.5: 120 N; T5: 330 N; AT5: 700 N (permissible tensile force at 10 mm belt width)

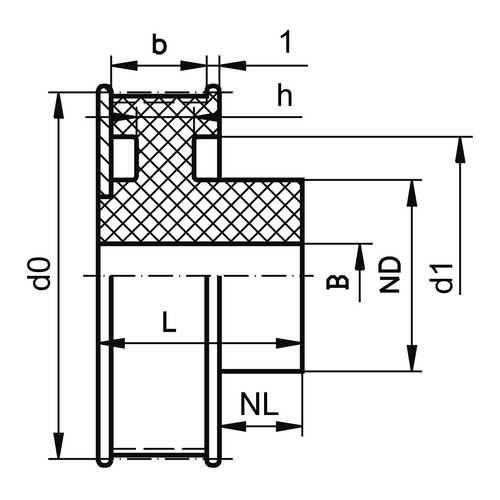

Item Image Profile Belt width
mm
Teeth Toothed wheel Ø1
mm
Flanged wheel Ø1
mm
Pitch circle (d0)
mm
Hub Ø (ND)
mm
Hub length (NL)
mm
d1
mm
L
mm
Tooth width (b)
mm
h
mm
Pilot bore (B)
mm
Weight
g
Unit
piece
Price
Euro*
Buy
701265
T5 10 12 18,25 20,65 19,1 15 8 0 22 7,5 5 6,2 5 50.00
701266
T5 10 12 18,25 20,65 19,1 15 8 0 22 7,5 5 6,2 10 85.00
701267
T5 10 13 19,85 22,25 20,69 15 8 0 22 7,5 5 7,2 5 55.00
701268
T5 10 13 19,85 22,25 20,69 15 8 0 22 7,5 5 7,2 10 90.00
701269
T5 10 14 21,45 23,85 22,28 15 8 0 22 7,5 5 8,1 5 55.00
701270
T5 10 14 21,45 23,85 22,28 15 8 0 22 7,5 5 8,1 10 95.00
701271
T5 10 15 23,05 25,45 23,87 16 8 19 22 7,5 7 6 8,6 5 55.00
701272
T5 10 15 23,05 25,45 23,87 16 8 19 22 7,5 7 6 8,6 10 90.00
701273
T5 10 16 24,6 27 25,46 16 8 19 22 7,5 7 6 9,6 5 55.00
701274
T5 10 16 24,6 27 25,46 16 8 19 22 7,5 7 6 9,6 10 90.00
701275
T5 10 17 26,2 28,6 27,06 16 8 19 22 7,5 7 6 10,8 5 60.00
701276
T5 10 17 26,2 28,6 27,06 16 8 19 22 7,5 7 6 10,8 10 100.00
701277
T5 10 18 27,8 30,2 28,65 16 8 19 22 7,5 7 6 12,2 5 60.00
701278
T5 10 18 27,8 30,2 28,65 16 8 19 22 7,5 7 6 12,2 10 100.00
701279
T5 10 19 29,4 31,8 30,24 16 8 22 22 7,5 6 8 12,3 5 65.00
701280
T5 10 19 29,4 31,8 30,24 16 8 22 22 7,5 6 8 12,3 10 105.00
701281
T5 10 20 31 33,4 31,83 16 8 25 22 7,5 6 8 12,5 5 65.00
701282
T5 10 20 31 33,4 31,83 16 8 25 22 7,5 6 8 12,5 10 105.00
701283
T5 10 22 34,15 36,55 35,01 18 8 27 22 7,5 6 8 15,3 5 70.00
701284
T5 10 22 34,15 36,55 35,01 18 8 27 22 7,5 6 8 15,3 10 115.00
701285
T5 10 25 38,95 41,35 39,79 18 8 32 22 7,5 6 8 18,8 5 75.00
701286
T5 10 25 38,95 41,35 39,79 18 8 32 22 7,5 6 8 18,8 10 120.00
701287
T5 10 28 43,75 46,15 44,56 18 8 36 22 7,5 6 10 22 5 80.00
701288
T5 10 28 43,75 46,15 44,56 18 8 36 22 7,5 6 10 22 10 130.00
701289
T5 10 32 50,1 52,5 50,93 18 8 42 22 7,5 6 10 27,7 5 85.00
701290
T5 10 32 50,1 52,5 50,93 18 8 42 22 7,5 6 10 27,7 10 140.00
701291
T5 10 36 56,45 58,85 57,3 18 8 47 22 7,5 6 10 34,9 5 85.00
701292
T5 10 36 56,45 58,85 57,3 18 8 47 22 7,5 6 10 34,9 10 140.00
701293
T5 10 40 62,85 65,25 63,66 18 8 53 22 7,5 6 10 41,9 5 95.00
701294
T5 10 40 62,85 65,25 63,66 18 8 53 22 7,5 6 10 41,9 10 155.00
701295
T5 10 48 75,55 77,95 76,39 18 8 66 22 7,5 6 10 57,7 5 105.00
701296
T5 10 48 75,55 77,95 76,39 18 8 66 22 7,5 6 10 57,7 10 170.00
701297
T5 10 60 94,65 97,05 95,49 18 8 85 22 7,5 6 10 86,5 5 110.00
701298
T5 10 60 94,65 97,05 95,49 18 8 85 22 7,5 6 10 86,5 10 185.00
701299
T5 10 72 113,75 116,15 114,59 18 8 104 22 7,5 6 10 126,5 5 120.00
701300
T5 10 72 113,75 116,15 114,59 18 8 104 22 7,5 6 10 126,5 10 195.00
701301
T5 10 84 132,9 135,3 133,69 18 8 123 22 7,5 6 10 169,6 5 125.00
701302
T5 10 84 132,9 135,3 133,69 18 8 123 22 7,5 6 10 169,6 10 205.00
