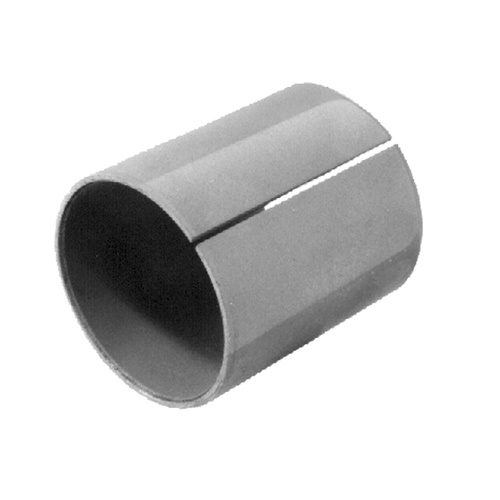

Plain Bearing Bush - slotted, without any lubrication, without flange

No additional information available.
General Information Use for packing machines, food-processing machines. Ready-to-install... more

General Information

Use for packing machines, food-processing machines.

Ready-to-install metal plain bearing bushes with special slide coating

Grease free and maintenance free

Suitable up to medium speeds at high loads, also for pivoting motions

Design as bushes without flange or as flange bushes

Ideal where greases are not allowed

For shaft diameters 3 to 50 mm

Long service life at high load, even with pivoting motion

Material: tin-plated steel back with multi-porous bronze layer and sliding surface from PTFE-lead-compound

Stat. surface pressure: approx. 250 N/mm2

Dyn. bearing load: approx. 56 N/mm2

Max. peripheral speed: 2 m/s

Temperature range: -195 to +280 °C

Tolerances:

Bore: H7

Shaft: f7

Shaft (recommended): hardened, surface finish Ra max. 0.3

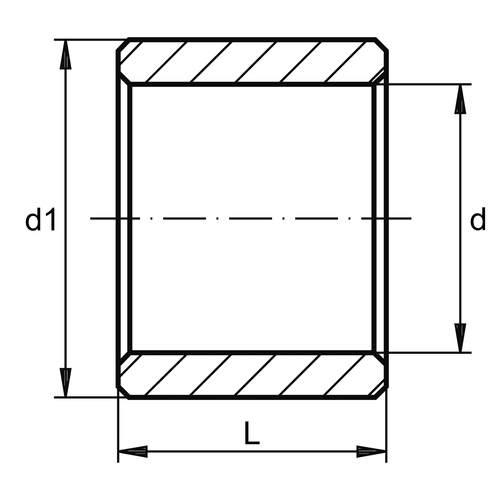

Item Image d
mm
d1
mm
L
mm
Weight
g
Unit
piece
Price
Euro*
Buy
706349
3 4,5 4 0,1 5 5.00
706350
3 4,5 4 0,1 10 10.00
706351
3 4,5 5 0,3 5 5.00
706352
3 4,5 5 0,3 10 10.00
706353
3 4,5 6 0,4 5 5.00
706354
3 4,5 6 0,4 10 10.00
706355
4 5,5 4 0,3 5 5.00
706356
4 5,5 4 0,3 10 10.00
706357
4 5,5 6 0,6 5 5.00
706358
4 5,5 6 0,6 10 10.00
706359
4 5,5 8 0,9 5 5.00
706360
4 5,5 8 0,9 10 10.00
706361
5 7 5 0,7 5 5.00
706362
5 7 5 0,7 10 10.00
706363
5 7 8 1,1 5 5.00
706364
5 7 8 1,1 10 10.00
706365
6 8 5 0,7 5 5.00
706366
6 8 5 0,7 10 10.00
706367
6 8 6 0,9 5 5.00
706368
6 8 6 0,9 10 10.00
706369
6 8 10 1,7 5 5.00
706370
6 8 10 1,7 10 10.00
706371
7 9 10 1,8 5 5.00
706372
7 9 10 1,8 10 10.00
706373
8 10 6 1,2 5 5.00
706374
8 10 6 1,2 10 10.00
706375
8 10 8 1,7 5 5.00
706376
8 10 8 1,7 10 10.00
706377
8 10 10 2,1 5 5.00
706378
8 10 10 2,1 10 10.00
706379
9 11 10 2,2 5 5.00
706380
9 11 10 2,2 10 10.00
706381
10 12 6 1,9 5 5.00
706382
10 12 6 1,9 10 10.00
706383
10 12 8 2 5 5.00
706384
10 12 8 2 10 10.00
706385
10 12 10 2,5 5 5.00
706386
10 12 10 2,5 10 10.00
706387
10 12 12 2,9 5 10.00
706388
10 12 12 2,9 10 15.00
706389
10 12 15 3,8 5 10.00
706390
10 12 15 3,8 10 15.00
706391
10 12 20 5,3 5 10.00
706392
10 12 20 5,3 10 15.00
706393
12 14 6 1,7 5 10.00
706394
12 14 6 1,7 10 15.00
706395
12 14 8 2 5 10.00
706396
12 14 8 2 10 15.00
706397
12 14 10 3 5 10.00
706398
12 14 10 3 10 15.00
706399
12 14 12 3,7 5 10.00
706400
12 14 12 3,7 10 15.00
706401
12 14 15 4,7 5 10.00
706402
12 14 15 4,7 10 15.00
706403
12 14 20 6,1 5 10.00
706404
12 14 20 6,1 10 15.00
706405
14 16 10 3,6 5 10.00
706406
14 16 10 3,6 10 15.00
706407
14 16 20 7,1 5 15.00
706408
14 16 20 7,1 10 20.00
706409
15 17 10 3,8 5 10.00
706410
15 17 10 3,8 10 15.00
706411
15 17 12 4,5 5 10.00
706412
15 17 12 4,5 10 15.00
706413
15 17 15 5,7 5 10.00
706414
15 17 15 5,7 10 15.00
706415
15 17 20 7,6 5 10.00
706416
15 17 20 7,6 10 15.00
706417
16 18 10 4,6 5 10.00
706418
16 18 10 4,6 10 15.00
706419
16 18 15 6,1 5 10.00
706420
16 18 15 6,1 10 15.00
706421
16 18 20 8,1 5 10.00
706422
16 18 20 8,1 10 15.00
706423
16 18 25 10,1 5 15.00
706424
16 18 25 10,1 10 20.00
706425
18 20 20 8,9 5 15.00
706426
18 20 20 8,9 10 20.00
706427
20 23 10 7,5 5 15.00
706428
20 23 10 7,5 10 20.00
706429
20 23 12 6,8 5 15.00
706430
20 23 12 6,8 10 20.00
706431
20 23 15 11,6 5 15.00
706432
20 23 15 11,6 10 20.00
706433
20 23 20 15,1 5 15.00
706434
20 23 20 15,1 10 20.00
706435
20 23 30 23 5 20.00
706436
20 23 30 23 10 35.00
706437
22 25 20 16,6 5 20.00
706438
22 25 20 16,6 10 30.00
706439
24 27 25 23,8 5 30.00
706440
24 27 25 23,8 10 40.00
706441
25 28 15 14,2 5 20.00
706442
25 28 15 14,2 10 30.00
706443
25 28 20 10 5 25.00
706444
25 28 20 10 10 35.00
706445
25 28 25 23,9 5 25.00
706446
25 28 25 23,9 10 35.00
706447
25 28 30 28,4 5 30.00
706448
25 28 30 28,4 10 40.00
706449
25 28 40 37,3 5 30.00
706450
25 28 40 37,3 10 50.00
706451
26 30 15 15,6 5 20.00
706452
26 30 15 15,6 10 30.00
706453
26 30 20 26,1 5 25.00
706454
26 30 20 26,1 10 40.00
706455
26 30 30 39 5 30.00
706456
26 30 30 39 10 45.00
706457
28 32 20 28,8 5 30.00
706458
28 32 20 28,8 10 40.00
706459
28 32 25 39 5 30.00
706460
28 32 25 39 10 45.00
706461
30 34 12 17,5 5 20.00
706462
30 34 12 17,5 10 30.00
706463
30 34 15 22,9 5 25.00
706464
30 34 15 22,9 10 35.00
706465
30 34 20 30,9 5 30.00
706466
30 34 20 30,9 10 45.00
706467
30 34 30 46,1 5 30.00
706468
30 34 30 46,1 10 45.00
706469
30 34 35 53 5 35.00
706470
30 34 35 53 10 50.00
706471
32 36 20 32 5 25.00
706472
32 36 20 32 10 35.00
706473
32 36 25 40,2 5 25.00
706474
32 36 25 40,2 10 35.00
706475
35 39 20 35,4 5 30.00
706476
35 39 20 35,4 10 45.00
706477
35 39 40 70,8 5 45.00
706478
35 39 40 70,8 10 65.00
706479
38 42 30 56,9 5 30.00
706480
38 42 30 56,9 10 50.00
706481
40 44 20 40 5 35.00
706482
40 44 20 40 10 50.00
706483
40 44 30 60,2 5 40.00
706484
40 44 30 60,2 10 55.00
706485
40 44 50 102 5 50.00
706486
40 44 50 102 10 75.00
706487
50 55 30 95 5 50.00
706488
50 55 30 95 10 80.00
706489
50 55 50 160 5 80.00
706490
50 55 50 160 10 115.00
