Application area
Delivery of liquids in the areas of medical and precision engineering, biotechnology, analytical technology and environmental technology.
Also for mobile use.
Product specification
Efficient, self-priming miniature diaphragm pumps for delivery of liquids also against pressure, safe to run dry and mainetance-free, medium-contacting parts made of proven, chemically resistant polymer material combinations, low-voltage drive with direct current motor.
Technical specification
Material:
Diaphragm: PTFE
Suction head: up to 3 m water column
Max. delivery head: 10 m water column
Max. working excess-pressure: 1 bar

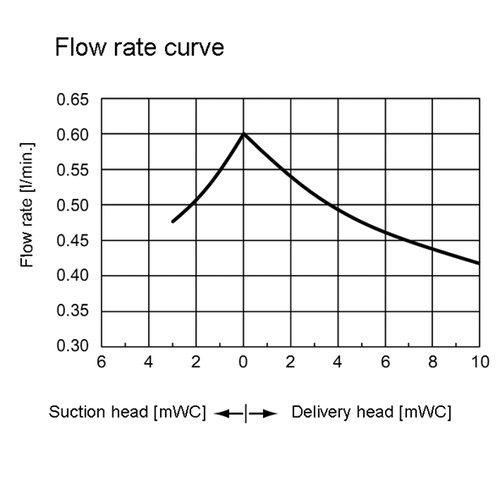

Max. delivery rate:
at atmospheric pressure (H2O +20 °C): 600 ml/min.
against 10 m water column: 400 ml/min.
Pipe connection: parallel tubing connections, straight, for tubing ID 4.8 mm
Max. temperature of medium: +80 °C
Max. ambient temperature: +5 to +40 °C
Voltage: 12 or 24 V=
Amperage: 1.25; 0.69; 0.36 A at load
Protective system: IP 00
EMC-Directive: EN 55014
Dimension: 74 x 31 x 60 mm (L x W x H)
Weight: approx. 190 g
| Item | Image |
Voltage volt
|
Werkstoff Pumpenkopf | Werkstoff Ventilplatte | Werkstoff Membran |
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|
| 16604 |
|
12= | PP | EPDM | EPDM | 1 | 388.00 | |
| 16605 |
|
24= | PP | EPDM | EPDM | 1 | 388.00 | |
| 16607 |
|
12= | PP | FFKM | PTFE | 1 | 481.00 | |
| 16608 |
|
24= | PP | FFKM | PTFE | 1 | 481.00 | |
| 16610 |
|
12= | PVDF | FFKM | PTFE | 1 | 547.00 | |
| 16611 |
|
24= | PVDF | FFKM | PTFE | 1 | 547.00 | |
