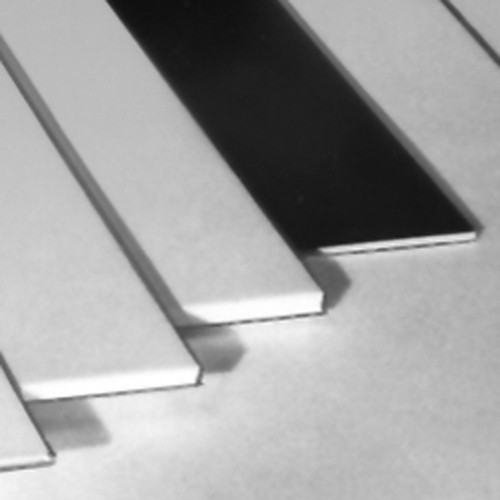

Sinter Plate on Cr-Ni-Steel Base (highly porous)

Sinter Plate on Cr-Ni-Steel Base (highly porous)
Application area Gas filtration, fluid filtration, clarification and separation filtration,... more

Application area

Gas filtration, fluid filtration, clarification and separation filtration, high pressure filtration, solvent separation, filtration of polyamides, polyesters and acetates before extrusion moulding of fibres and films

Product specification

Cleaning of dirty sinter plates: In simple cases the THOMAPOR®-sinter metal plates are cleaned in the countercurrent with a clean fluid or with clean gas according to the intended use of the filter. This method is always sufficient when all contaminations are retained at the surface of the filter element and no particles are lodged in the pore space.

Additionally, slight brushing with a soft nylon brush helps. If soiling particles are lodged in the filter and cleaning in the countercurrent is not sufficient, solvents can be used. Duration of cleaning and temperature can be varied depending on the degree of soiling. Use of acids or alkalis of high concentration and at high temperatures is not recommended. Neutralization with hot water should be done in any case.

THOMAPOR®-highly porous sinter metal plates comply with the directions of the German Food Law. Due to their very low carbon content they are highly resistant to intercristalline corrosion.

Technical specification

Material: chromium-nickel-steel, based on material 1.4404

Operating temperature:

in oxidizing atmosphere: +500 °C

in reducing atmosphere: +650 °C

No additional information available.
Zum anzeigen der Varianten bitte im Querformat benutzen.
Item Image Pore size
µm
Porosity
%
Density
g/cm³
Bubble Point
Pa
Tensile strength
N/mm²
Thickness
mm
Dimensions
mm
Unit
piece
Price
Euro*
Buy
52943
2,8 30 - 35 5,2 - 5,6 4.245 110 3 125 x 125 1 167.00
52944
2,8 30 - 35 5,2 - 5,6 4.245 110 5 125 x 125 1 210.00
52945
2,8 30 - 35 5,2 - 5,6 4.245 110 8 125 x 125 1 261.00
52946
2,8 30 - 35 5,2 - 5,6 4.245 110 10 125 x 125 1 356.00
52947
4 32 - 37 5,0 - 5,4 3.325 110 3 125 x 125 1 167.00
52948
4 32 - 37 5,0 - 5,4 3.325 110 5 125 x 125 1 210.00
52949
4 32 - 37 5,0 - 5,4 3.325 110 8 125 x 125 1 261.00
52950
4 32 - 37 5,0 - 5,4 3.325 110 10 125 x 125 1 356.00
52951
6 33 - 38 4,9 - 5,3 2.535 100 3 125 x 125 1 167.00
52952
6 33 - 38 4,9 - 5,3 2.535 100 5 125 x 125 1 210.00
52953
6 33 - 38 4,9 - 5,3 2.535 100 8 125 x 125 1 261.00
52954
6 33 - 38 4,9 - 5,3 2.535 100 10 125 x 125 1 356.00
52955
8 36 - 41 4,7 - 5,1 1.865 90 3 125 x 125 1 167.00
52956
8 36 - 41 4,7 - 5,1 1.865 90 5 125 x 125 1 210.00
52957
8 36 - 41 4,7 - 5,1 1.865 90 8 125 x 125 1 261.00
52958
8 36 - 41 4,7 - 5,1 1.865 90 10 125 x 125 1 356.00
52959
13 37 - 42 4,6 - 5,0 1.475 80 3 125 x 125 1 167.00
52960
13 37 - 42 4,6 - 5,0 1.475 80 5 125 x 125 1 210.00
52961
13 37 - 42 4,6 - 5,0 1.475 80 8 125 x 125 1 261.00
52962
13 37 - 42 4,6 - 5,0 1.475 80 10 125 x 125 1 356.00
52963
20 38 - 43 4,5 - 4,9 1.015 70 3 125 x 125 1 167.00
52964
20 38 - 43 4,5 - 4,9 1.015 70 5 125 x 125 1 210.00
52965
20 38 - 43 4,5 - 4,9 1.015 70 8 125 x 125 1 261.00
52966
20 38 - 43 4,5 - 4,9 1.015 70 10 125 x 125 1 356.00
52967
25 39 - 44 4,4 - 4,8 835 60 3 125 x 125 1 167.00
52968
25 39 - 44 4,4 - 4,8 835 60 5 125 x 125 1 210.00
52969
25 39 - 44 4,4 - 4,8 835 60 8 125 x 125 1 261.00
52970
25 39 - 44 4,4 - 4,8 835 60 10 125 x 125 1 356.00
52971
32 40 - 45 4,3 - 4,7 705 50 3 125 x 125 1 167.00
52972
32 40 - 45 4,3 - 4,7 705 50 5 125 x 125 1 210.00
52973
32 40 - 45 4,3 - 4,7 705 50 8 125 x 125 1 261.00
52974
32 40 - 45 4,3 - 4,7 705 50 10 125 x 125 1 356.00
52910
2,8 30 - 35 5,2 - 5,6 4.245 110 3 250 x 250 1 491.00
52911
2,8 30 - 35 5,2 - 5,6 4.245 110 5 250 x 250 1 563.00
52913
2,8 30 - 35 5,2 - 5,6 4.245 110 8 250 x 250 1 696.00
52914
2,8 30 - 35 5,2 - 5,6 4.245 110 10 250 x 250 1 1,038.00
52915
4 32 - 37 5,0 - 5,4 3.325 110 3 250 x 250 1 491.00
52916
4 32 - 37 5,0 - 5,4 3.325 110 5 250 x 250 1 563.00
52917
4 32 - 37 5,0 - 5,4 3.325 110 8 250 x 250 1 696.00
52918
4 32 - 37 5,0 - 5,4 3.325 110 10 250 x 250 1 1,038.00
52919
6 33 - 38 4,9 - 5,3 2.535 100 3 250 x 250 1 491.00
52920
6 33 - 38 4,9 - 5,3 2.535 100 5 250 x 250 1 563.00
52921
6 33 - 38 4,9 - 5,3 2.535 100 8 250 x 250 1 696.00
52922
6 33 - 38 4,9 - 5,3 2.535 100 10 250 x 250 1 1,038.00
52923
8 36 - 41 4,7 - 5,1 1.865 90 3 250 x 250 1 491.00
52924
8 36 - 41 4,7 - 5,1 1.865 90 5 250 x 250 1 563.00
52925
8 36 - 41 4,7 - 5,1 1.865 90 8 250 x 250 1 696.00
52926
8 36 - 41 4,7 - 5,1 1.865 90 10 250 x 250 1 1,038.00
52927
13 37 - 42 4,6 - 5,0 1.475 80 3 250 x 250 1 491.00
52928
13 37 - 42 4,6 - 5,0 1.475 80 5 250 x 250 1 563.00
52929
13 37 - 42 4,6 - 5,0 1.475 80 8 250 x 250 1 696.00
52930
13 37 - 42 4,6 - 5,0 1.475 80 10 250 x 250 1 1,038.00
52931
20 38 - 43 4,5 - 4,9 1.015 70 3 250 x 250 1 491.00
52932
20 38 - 43 4,5 - 4,9 1.015 70 5 250 x 250 1 563.00
52933
20 38 - 43 4,5 - 4,9 1.015 70 8 250 x 250 1 696.00
52934
20 38 - 43 4,5 - 4,9 1.015 70 10 250 x 250 1 1,038.00
52935
25 39 - 44 4,4 - 4,8 835 60 3 250 x 250 1 491.00
52936
25 39 - 44 4,4 - 4,8 835 60 5 250 x 250 1 563.00
52937
25 39 - 44 4,4 - 4,8 835 60 8 250 x 250 1 696.00
52938
25 39 - 44 4,4 - 4,8 835 60 10 250 x 250 1 1,038.00
52939
32 40 - 45 4,3 - 4,7 705 50 3 250 x 250 1 491.00
52940
32 40 - 45 4,3 - 4,7 705 50 5 250 x 250 1 563.00
52941
32 40 - 45 4,3 - 4,7 705 50 8 250 x 250 1 696.00
52942
32 40 - 45 4,3 - 4,7 705 50 10 250 x 250 1 1,038.00
