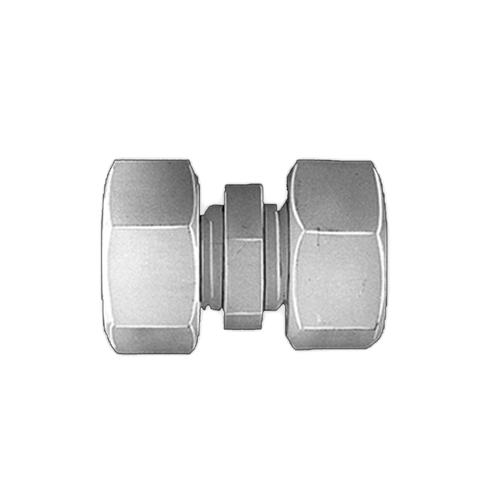

Straight Pipe Connector (reducing) made of PVDF

Product specification Straight, pipe connection on both sides, body and cap nut made of PVDF more

Product specification

Straight, pipe connection on both sides, body and cap nut made of PVDF

General Information MULTIFIT ® PVDF PVDF is a fluorinated thermoplastic with a... more

General Information MULTIFIT® PVDF

PVDF is a fluorinated thermoplastic with a lot of excellent chemical and mechanical properties.

A particular characteristic of the MULTIFIT®-pipe fittings is the construction of the gasket. The O-rings do not only prevent the formation of leaks but also the occurence of torsional tensions in the pipes. The torsional forces are not transmitted to the pipes but are confined to the screwed fitting parts; consequently, this system guarantees absolute safety even with the most complicated applications.

Material:

Housing: PVDF (polyvinylidene fluoride)

Gaskets: FPM (fluorinated rubber)

Colour: nature, slightly translucent

Density: 1.75 g/cm3

Temperature range: -40 to +140 °C

Shore hardness D: 79° (great hardness)

Water absorption: <0.04 % (water resistant)

Tensile strength: 38 - 50 N/mm2

Elongation at break: 12 %

Surface resistance: >1013 Ohm

Melt flow index MFR: 6 g/10 min.

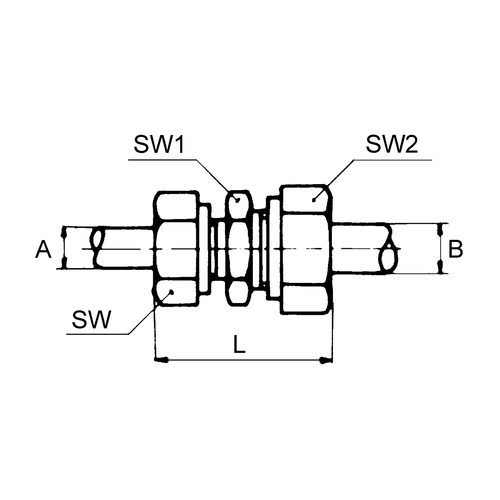

Item Image Pipe outside Ø (A)
mm
Rohr Außen-Ø (B)
mm
L
mm
SW
mm
SW1
mm
SW2
mm
Einheit
Stück
Price
Euro*
Buy
61653
4 6 35 17 17 22 1 72.00
61654
6 8 36 22 17 22 1 67.00
61655
8 10 39 22 19 24 1 67.00
61656
10 12 39 24 22 27 1 83.00
