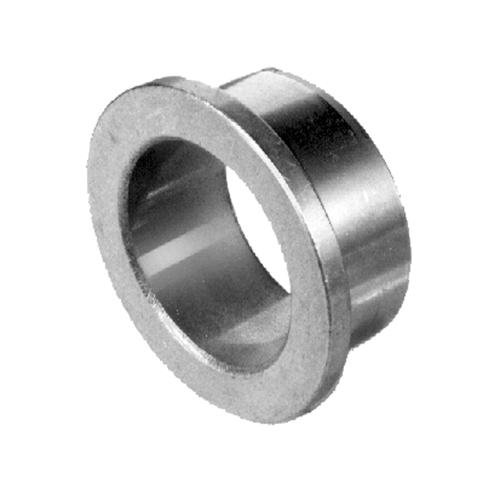

Plain Bearing Bush made of Sintered Bronze - Version V with flange

No additional information available.
General Information Ready-to-install calibrated multi-porous metal plain bearing bushes... more

General Information

Ready-to-install calibrated multi-porous metal plain bearing bushes

Oil-impregnated, maintenance free

Suitable for high speeds, also in case of frequent start/stop operations

Bushes without flange according to DIN 1850 (DIN 4379 Shape C)

Flange bushes according to DIN 1850 (DIN 4379 Shape F)

For shaft diameters 3 to 50 mm

Long service life at constant speed without reversion of rotation

Low speeds and alternating rotational directions are conditions that inhibit full-film lubrication from developing or being maintained at the contact surface to the shaft (leads to reduced service life)

After press-fitting into a bore H7, the inside diameter tolerance is H7 as well

Material: special sintered bronze, approx. 25 % of the volume coated with oil ISO VG 68

pv-value: 1.8 MPa x m/s

Dyn. bearing load: approx. 10 N/mm2

Max. peripheral speed: 6 m/s, depending on the surface pressure

Temperature range: -10 to +80 °C

Shaft (recommended): tolerance f7, surface finish Ra max. 0.6, strength min. 800 N/mm2

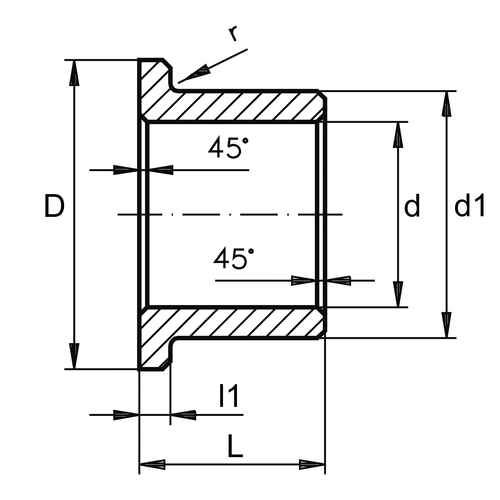

Item Image d1
mm
d12
mm
Ø flange (D)3
mm
L4
mm
l15
mm
Gewicht
g
Einheit
Stück
Price
Euro*
Buy
706243
3 6 9 4 1,5 0,92 5 17.00
706244
3 6 9 4 1,5 0,92 10 22.00
706245
3 6 9 10 1,5 1,77 5 17.00
706246
3 6 9 10 1,5 1,77 10 22.00
706247
4 8 12 4 2 1,79 5 22.00
706248
4 8 12 4 2 1,79 10 27.00
706249
4 8 12 12 2 3,87 5 43.00
706250
4 8 12 12 2 3,87 10 59.00
706251
6 10 14 6 2 3,03 5 22.00
706252
6 10 14 6 2 3,03 10 27.00
706253
6 10 14 10 2 4,38 5 22.00
706254
6 10 14 10 2 4,38 10 27.00
706255
6 10 14 16 2 6,4 5 22.00
706256
6 10 14 16 2 6,4 10 27.00
706257
8 12 16 8 2 4,53 5 22.00
706258
8 12 16 8 2 4,53 10 27.00
706259
8 12 16 12 2 6,22 5 22.00
706260
8 12 16 12 2 6,22 10 27.00
706261
8 12 16 16 2 7,91 5 22.00
706262
8 12 16 16 2 7,91 10 27.00
706263
10 13 16 10 1,5 9,08 5 22.00
706264
10 13 16 10 1,5 9,08 10 27.00
706265
10 13 16 16 1,5 6,5 5 22.00
706266
10 13 16 16 1,5 6,5 10 27.00
706267
10 15 20 10 3 9,34 5 33.00
706268
10 15 20 10 3 9,34 10 43.00
706269
10 16 22 10 3 11,8 5 43.00
706270
10 16 22 10 3 11,8 10 59.00
706271
10 16 22 16 3 16,7 5 49.00
706272
10 16 22 16 3 16,7 10 65.00
706273
12 15 18 12 1,5 5,89 5 22.00
706274
12 15 18 12 1,5 5,89 10 27.00
706275
12 15 18 16 1,5 7,6 5 22.00
706276
12 15 18 16 1,5 7,6 10 27.00
706277
12 17 22 20 3 18,3 5 54.00
706278
12 17 22 20 3 18,3 10 70.00
706279
12 17 22 12 3 11,7 5 22.00
706280
12 17 22 12 3 11,7 10 27.00
706281
12 18 24 20 3 22,9 5 59.00
706282
12 18 24 20 3 22,9 10 81.00
706283
14 18 22 14 2 11,1 5 33.00
706284
14 18 22 14 2 11,1 10 49.00
706285
16 20 24 16 2 14 5 38.00
706286
16 20 24 16 2 14 10 49.00
706287
16 20 24 20 2 17,2 5 38.00
706288
16 20 24 20 2 17,2 10 54.00
706289
16 22 28 25 3 34,7 5 124.00
706290
16 22 28 25 3 34,7 10 166.00
706291
16 22 28 16 3 24 5 59.00
706292
16 22 28 16 3 24 10 81.00
706293
16 22 28 20 3 28,6 5 59.00
706294
16 22 28 20 3 28,6 10 81.00
706295
18 22 26 18 2 17,1 5 38.00
706296
18 22 26 18 2 17,1 10 54.00
706297
18 24 30 18 3 29 5 70.00
706298
18 24 30 18 3 29 10 97.00
706299
20 24 28 16 2 17 5 43.00
706300
20 24 28 16 2 17 10 59.00
706301
20 24 28 20 2 20,7 5 49.00
706302
20 24 28 20 2 20,7 10 70.00
706303
20 26 32 15 3 21,8 5 75.00
706304
20 26 32 15 3 21,8 10 102.00
706305
20 26 32 16 3 28,9 5 54.00
706306
20 26 32 16 3 28,9 10 86.00
706307
20 26 32 20 3 34,5 5 65.00
706308
20 26 32 20 3 34,5 10 91.00
706309
20 26 32 25 3 41,7 5 70.00
706310
20 26 32 25 3 41,7 10 102.00
706311
20 26 32 32 3 51,9 5 102.00
706312
20 26 32 32 3 51,9 10 150.00
706313
20 28 35 20 4 49,7 5 91.00
706314
20 28 35 20 4 49,7 10 140.00
706315
25 30 35 20 2,5 33,2 5 70.00
706316
25 30 35 20 2,5 33,2 10 102.00
706317
25 30 35 25 2,5 40,4 5 65.00
706318
25 30 35 25 2,5 40,4 10 97.00
706319
25 32 39 25 4 64,6 5 134.00
706320
25 32 39 25 4 64,6 10 198.00
706321
28 33 38 22 2,5 40 5 86.00
706322
28 33 38 22 2,5 40 10 129.00
706323
28 33 38 36 2,5 62,4 5 124.00
706324
28 33 38 36 2,5 62,4 10 182.00
706325
28 36 44 22 4 72,7 5 102.00
706326
28 36 44 22 4 72,7 10 156.00
706327
30 38 46 20 4 71,4 5 124.00
706328
30 38 46 20 4 71,4 10 182.00
706329
30 38 46 25 4 85,7 5 134.00
706330
30 38 46 25 4 85,7 10 198.00
706331
30 38 46 30 4 100 5 156.00
706332
30 38 46 30 4 100 10 231.00
706333
36 45 54 28 4,5 128,4 5 204.00
706334
36 45 54 28 4,5 128,4 10 300.00
706335
36 45 54 36 4,5 159,1 5 247.00
706336
36 45 54 36 4,5 159,1 10 364.00
706337
36 45 54 22 4,5 105,4 5 134.00
706338
36 45 54 22 4,5 105,4 10 198.00
706339
40 46 52 40 3 117,8 5 188.00
706340
40 46 52 40 3 117,8 10 279.00
706341
40 50 60 25 5 147,3 5 198.00
706342
40 50 60 25 5 147,3 10 295.00
706343
40 50 60 40 5 218,3 5 279.00
706344
40 50 60 40 5 218,3 10 407.00
706345
50 60 70 32 5 219,3 5 311.00
706346
50 60 70 32 5 219,3 10 450.00
706347
50 60 70 50 5 323,4 5 343.00
706348
50 60 70 50 5 323,4 10 493.00
