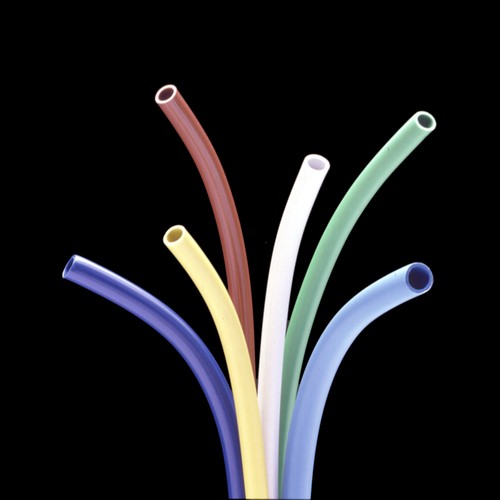

LLDPE Tubing for Drinking Water Supply

Application area Drinking water supply, drinking water purification, domestic engineering,... more

Close menu

Application area

Drinking water supply, drinking water purification, domestic engineering, food technology, biotechnological plants

Product specification

High flexibility

High pressure resistance

Good abrasion resistance

Good vibration and impact strength

Antiadhesive surface (smooth-walled)

Resistant to aging

Non-toxic

Odorless and tasteless

Low permeability to steam combined with extremely low O₂- and CO₂-permeability

Technical specification

Material: LLDPE (linear polyethylene, low density, highly cross-linked)

Colour: transparent, blue, red, black

Temperature range: -30 to +65 °C

Tolerances outside Ø: 6-12 mm: +0.05 / -0.10 mm

Regulations: approval according to DVGW worksheet W 270, KTW, NSF and WRC

Close menu

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	max. Betr.-Druck² bar	min. Biegeradius mm	Farbe	Einheit m	Price Euro*
302120	2,5	4	16	8	25	natur	5	38.00
302121	2,5	4	16	8	25	natur	15	94.00
302122	2,5	4	16	8	25	blau	5	38.00
302123	2,5	4	16	8	25	blau	15	94.00
302124	2,5	4	16	8	25	rot	5	38.00
302125	2,5	4	16	8	25	rot	15	94.00
302126	2,5	4	16	8	25	schwarz	5	38.00
302127	2,5	4	16	8	25	schwarz	15	94.00
303093	4	6	16	8	25	natur	5	45.00
303094	4	6	16	8	25	natur	15	114.00
303095	4	6	16	8	25	blau	5	45.00
303096	4	6	16	8	25	blau	15	114.00
303097	4	6	16	8	25	rot	5	45.00
303098	4	6	16	8	25	rot	15	114.00
303099	4	6	16	8	25	schwarz	5	45.00
303100	4	6	16	8	25	schwarz	15	114.00
303193	4,4	6,4	16	8	26	natur	5	45.00
303194	4,4	6,4	16	8	26	natur	15	114.00
303195	4,4	6,4	16	8	26	blau	5	45.00
303196	4,4	6,4	16	8	26	blau	15	114.00
303197	4,4	6,4	16	8	26	rot	5	45.00
303198	4,4	6,4	16	8	26	rot	15	114.00
303199	4,4	6,4	16	8	26	schwarz	5	45.00
303200	4,4	6,4	16	8	26	schwarz	15	114.00
330001	4,8	7,9	16	8	29	natur	5	52.00
330002	4,8	7,9	16	8	29	natur	15	127.00
330003	4,8	7,9	16	8	29	blau	5	52.00
330004	4,8	7,9	16	8	29	blau	15	127.00
330005	4,8	7,9	16	8	29	rot	5	52.00
330006	4,8	7,9	16	8	29	rot	15	127.00
330007	4,8	7,9	16	8	29	schwarz	5	52.00
330008	4,8	7,9	16	8	29	schwarz	15	127.00
330172	6	8	10	6	30	natur	5	57.00
330173	6	8	10	6	30	natur	15	136.00
330174	6	8	10	6	30	blau	5	57.00
330175	6	8	10	6	30	blau	15	136.00
330176	6	8	10	6	30	rot	5	57.00
330177	6	8	10	6	30	rot	15	136.00
330178	6	8	10	6	30	schwarz	5	57.00
330179	6	8	10	6	30	schwarz	15	136.00
330180	6,4	9,5	16	8	32	natur	5	59.00
330181	6,4	9,5	16	8	32	natur	15	142.00
330182	6,4	9,5	16	8	32	blau	5	59.00
330183	6,4	9,5	16	8	32	blau	15	142.00
330184	6,4	9,5	16	8	32	rot	5	59.00
330185	6,4	9,5	16	8	32	rot	15	142.00
330186	6,4	9,5	16	8	32	schwarz	5	59.00
330187	6,4	9,5	16	8	32	schwarz	15	142.00
330009	7	10	16	8	32	natur	5	63.00
330010	7	10	16	8	32	natur	15	157.00
330011	7	10	16	8	32	blau	5	63.00
330012	7	10	16	8	32	blau	15	157.00
330013	7	10	16	8	32	rot	5	63.00
330014	7	10	16	8	32	rot	15	157.00
330015	7	10	16	8	32	schwarz	5	63.00
330016	7	10	16	8	32	schwarz	15	157.00
330017	9	12	10	6	63	natur	5	73.00
330018	9	12	10	6	63	natur	15	180.00
330019	9	12	10	6	63	blau	5	73.00
330020	9	12	10	6	63	blau	15	180.00
330021	9	12	10	6	63	rot	5	73.00
330022	9	12	10	6	63	rot	15	180.00
330023	9	12	10	6	63	schwarz	5	73.00
330024	9	12	10	6	63	schwarz	15	180.00
330188	9,5	12,7	10	6	64	natur	5	73.00
330189	9,5	12,7	10	6	64	natur	15	180.00
330190	9,5	12,7	10	6	64	blau	5	73.00
330191	9,5	12,7	10	6	64	blau	15	180.00
330192	9,5	12,7	10	6	64	rot	5	73.00
330193	9,5	12,7	10	6	64	rot	15	180.00
330194	9,5	12,7	10	6	64	schwarz	5	73.00
330195	9,5	12,7	10	6	64	schwarz	15	180.00
