Product specification

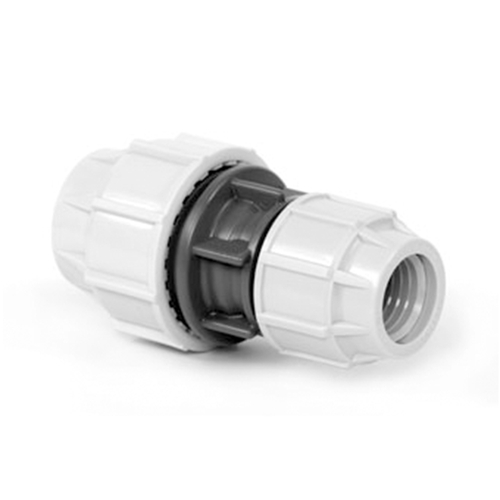

Straight coupling for pipes of different outside diameters
General Information
Laboratory-oriented straight, reducing, and elbow pipe couplings made of rigid, resistant PP (polypropylene) with chemically stable NBR (nitrile rubber) sealing; usable up to +60 °C.
The coupling body made of PP runs into threads with cap nuts at the ends. At each end of the coupling body a sealing ring made of nitrile rubber is fitted in, which is kept in place by means of an inside cross-grooved press bushing made of acetal resin.
The prepared pipe is slipped into the coupling body and solidly screwed with the cap nut.
A resilient, inside cross-grooved press cone (ferrule) made of acetal resin is slipped on the pipe to be connected in such a way that the pulled through end projects approx. 40 mm.
| Item | Image |

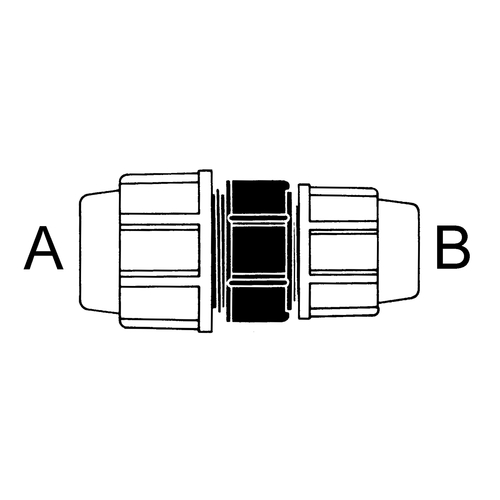

Pipe outside Ø (A) mm
|
Rohr Außen-Ø (B) mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|
| 42937 |
|
20 | 16 | 5 | 158.00 | |
| 42938 |
|
25 | 16 | 5 | 178.00 | |
| 42939 |
|
25 | 20 | 5 | 178.00 | |
| 42940 |
|
32 | 20 | 4 | 178.00 | |
