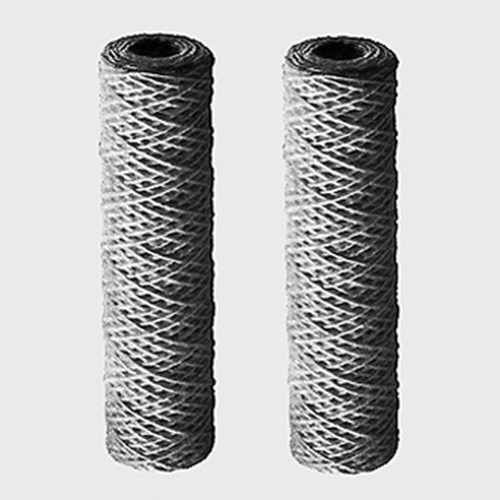

Yarn Wound Filter Element

Yarn Wound Filter Element
Application area Filtration in chemical and pharmaceutical industries, cosmetics industry,... more

Application area

Filtration in chemical and pharmaceutical industries, cosmetics industry, petroleum industry, food processing industry, paints and coatings industry, electroplating technology, water purification, nuclear power plant construction, as well as filtration of photographic fluids.

Product specification

Excellent dirt uptake due to strongly structured, helically wound filter yarn

Large yarn assortment allows use with many media

High flow rate throughput combines great economic efficiency

Selected quality yarns are wound on a retaining core by a special winding mode. The structure of the winding is carried out in such a way that the spiral tapers off inwards. By this special winding mode the yarn construction guarantees regularity of the filter structure and high dirt uptake capacity.

Depending on the application area the filters are to be manufactured with yarns made of cotton, PP (polypropylene) or viscose and retaining cores made of PP (polypropylene) and stainless steel.

Application examples based on material PP (polypropylene):

For filtration of industrial water, drinking water, mineral water, condensates, deionized water, aqueous solutions (pH 3-9), electroplating baths (pH 3-9), electroplating baths (pH <3), fluoroborate baths, cyanide baths (alkaline), pyrophosphate baths, acids and alkalis (pH 0-14), hydrochloric acid, sulfuric acid, phosphoric acid, hydrofluoric acid, nitric acid, pickling and phosphatizing baths, radioactive solutions, photochemical baths, lyes, hydraulic oils, heating and diesel oils, petrols, lubricating oils, alcohols, glycerols, chlorine, hydrogen chloride, hydrogen fluoride, and other aggressive gases.

Application examples based on material cotton:

For filtration of industrial water, drinking water, mineral water, condensates, deionized water, aqueous solutions (pH 3-9), electroplating baths (pH 3-9), tin baths (alkaline), pyrophosphate baths, radioactive solutions, photochemical baths, solvents, degreasing baths, freons, hydraulic fluids, heating and diesel oils, petrols, lubricating oils, edible oils, edible fats, alcohols, glycerols, aggressive gases.

The filter elements fit following housings:

Item 94482: filter length 125 mm

Items 94445, 52851, 52853, 94479, 52863: filter length 248 and 254 mm

Technical specification

Material:

Retaining core: PP (polypropylene)

Yarn: cotton

Inside diameter: 26 mm

Outside diameter: 63 mm

Filter length: 125 mm (5”), 248 mm (9 3/4”) and 254 mm (10”)

Max. temperature: with retaining core made of polypropylene up to +80 °C; with retaining core made of stainless steel up to +130 °C

Performance: see table (at a pressure difference of 0.15 bar and various viscosities)

No additional information available.
Item Image Length
mm
Filter fineness
µm
Max. DR at 1 °E1
l/h
Max. DR at 3.7 °E1
l/h
Max. DR at 9.5 °E1
l/h
Material yarn Material support body Unit
piece
Price
Euro*
Buy
58915
125 0,5 55 38 25 Baumwolle PP 1 15.00
58916
125 1 75 55 36 Baumwolle PP 1 15.00
58917
125 5 225 100 55 Baumwolle PP 1 15.00
58918
125 10 360 162 85 Baumwolle PP 1 15.00
58919
125 25 675 450 225 Baumwolle PP 1 15.00
58895
125 50 1.000 725 475 Baumwolle PP 1 15.00
58896
125 100 1.000 1.000 1.000 Baumwolle PP 1 15.00
53872
248 0,5 107 73 48 Baumwolle PP 1 19.00
53873
248 1 145 107 70 Baumwolle PP 1 19.00
53874
248 5 440 195 107 Baumwolle PP 1 19.00
53875
248 10 705 318 165 Baumwolle PP 1 19.00
53876
248 25 1.325 880 440 Baumwolle PP 1 19.00
53877
248 50 2.000 1.420 930 Baumwolle PP 1 19.00
53878
248 100 2.000 2.000 2.000 Baumwolle PP 1 19.00
53865
254 0,5 110 75 50 Baumwolle PP 1 19.00
53866
254 1 150 110 72 Baumwolle PP 1 19.00
53867
254 5 450 200 110 Baumwolle PP 1 19.00
53868
254 10 720 325 170 Baumwolle PP 1 19.00
53869
254 25 1.350 900 450 Baumwolle PP 1 19.00
53870
254 50 2.000 1.450 950 Baumwolle PP 1 19.00
53871
254 100 2.000 2.000 2.000 Baumwolle PP 1 19.00
58897
125 0,5 55 38 25 PP PP 1 15.00
58898
125 1 75 55 36 PP PP 1 15.00
12073
125 5 225 100 55 PP PP 1 15.00
12074
125 10 360 162 85 PP PP 1 15.00
12075
125 25 675 450 225 PP PP 1 15.00
12076
125 50 1.000 725 475 PP PP 1 15.00
12077
125 100 1.000 1.000 1.000 PP PP 1 15.00
53886
248 0,5 107 73 48 PP PP 1 19.00
53887
248 1 145 107 70 PP PP 1 19.00
53888
248 5 440 195 107 PP PP 1 19.00
53889
248 10 705 318 165 PP PP 1 19.00
53890
248 25 1.325 880 440 PP PP 1 19.00
53891
248 50 2.000 1.420 930 PP PP 1 19.00
53892
248 100 2.000 2.000 2.000 PP PP 1 19.00
53879
254 0,5 110 75 50 PP PP 1 19.00
53880
254 1 150 110 72 PP PP 1 19.00
53881
254 5 450 200 110 PP PP 1 19.00
53882
254 10 720 325 170 PP PP 1 19.00
53883
254 25 1.350 900 450 PP PP 1 19.00
53884
254 50 2.000 1.450 950 PP PP 1 19.00
53885
254 100 2.000 2.000 2.000 PP PP 1 19.00
12078
125 0,5 55 38 25 Viskose PP 1 15.00
12079
125 1 75 55 36 Viskose PP 1 15.00
12080
125 5 225 100 55 Viskose PP 1 15.00
12081
125 10 360 162 85 Viskose PP 1 15.00
12082
125 25 675 450 225 Viskose PP 1 15.00
12083
125 50 1.000 725 475 Viskose PP 1 15.00
12084
125 100 1.000 1.000 1.000 Viskose PP 1 15.00
53900
248 0,5 107 73 48 Viskose PP 1 19.00
53901
248 1 145 107 70 Viskose PP 1 19.00
53902
248 5 440 195 107 Viskose PP 1 19.00
53903
248 10 705 318 165 Viskose PP 1 19.00
53904
248 25 1.325 880 440 Viskose PP 1 19.00
53905
248 50 2.000 1.420 930 Viskose PP 1 19.00
53906
248 100 2.000 2.000 2.000 Viskose PP 1 19.00
53893
254 0,5 110 75 50 Viskose PP 1 19.00
53894
254 1 150 110 72 Viskose PP 1 19.00
53895
254 5 450 200 110 Viskose PP 1 19.00
53896
254 10 720 325 170 Viskose PP 1 19.00
53897
254 25 1.350 900 450 Viskose PP 1 19.00
53898
254 50 2.000 1.450 950 Viskose PP 1 19.00
53899
254 100 2.000 2.000 2.000 Viskose PP 1 19.00
12085
125 0,5 55 38 25 Baumwolle Edelstahl 1 18.00
12086
125 1 75 55 36 Baumwolle Edelstahl 1 18.00
12087
125 5 225 100 55 Baumwolle Edelstahl 1 18.00
12088
125 10 360 162 85 Baumwolle Edelstahl 1 18.00
12089
125 25 675 450 225 Baumwolle Edelstahl 1 18.00
12090
125 50 1.000 725 425 Baumwolle Edelstahl 1 18.00
12091
125 100 1.000 1.000 1.000 Baumwolle Edelstahl 1 18.00
53915
248 0,5 107 73 48 Baumwolle Edelstahl 1 22.00
53916
248 1 145 107 70 Baumwolle Edelstahl 1 22.00
53917
248 5 440 195 107 Baumwolle Edelstahl 1 22.00
53918
248 10 705 318 165 Baumwolle Edelstahl 1 22.00
53919
248 25 1.325 880 440 Baumwolle Edelstahl 1 22.00
53920
248 50 2.000 1.420 930 Baumwolle Edelstahl 1 22.00
53921
248 100 2.000 2.000 2.000 Baumwolle Edelstahl 1 22.00
53908
254 0,5 110 75 50 Baumwolle Edelstahl 1 22.00
53909
254 1 150 110 72 Baumwolle Edelstahl 1 22.00
53910
254 5 450 200 110 Baumwolle Edelstahl 1 22.00
53911
254 10 720 325 170 Baumwolle Edelstahl 1 22.00
53912
254 25 1.350 900 450 Baumwolle Edelstahl 1 22.00
53913
254 50 2.000 1.450 950 Baumwolle Edelstahl 1 22.00
53914
254 100 2.000 2.000 2.000 Baumwolle Edelstahl 1 22.00
12092
125 0,5 55 38 25 PP Edelstahl 1 18.00
12093
125 1 75 55 36 PP Edelstahl 1 18.00
12094
125 5 225 100 55 PP Edelstahl 1 18.00
12095
125 10 360 162 85 PP Edelstahl 1 18.00
12096
125 25 675 450 225 PP Edelstahl 1 18.00
12097
125 50 1.000 725 425 PP Edelstahl 1 18.00
12098
125 100 1.000 1.000 1.000 PP Edelstahl 1 18.00
53929
248 0,5 107 73 48 PP Edelstahl 1 22.00
53930
248 1 145 107 70 PP Edelstahl 1 22.00
53931
248 5 440 195 107 PP Edelstahl 1 22.00
53932
248 10 705 318 165 PP Edelstahl 1 22.00
53933
248 25 1.325 880 440 PP Edelstahl 1 22.00
53934
248 50 2.000 1.420 930 PP Edelstahl 1 22.00
53935
248 100 2.000 2.000 2.000 PP Edelstahl 1 22.00
53922
254 0,5 110 75 50 PP Edelstahl 1 22.00
53923
254 1 150 110 72 PP Edelstahl 1 22.00
53924
254 5 450 200 110 PP Edelstahl 1 22.00
53925
254 10 720 325 170 PP Edelstahl 1 22.00
53926
254 25 1.350 900 450 PP Edelstahl 1 22.00
53927
254 50 2.000 1.450 950 PP Edelstahl 1 22.00
53928
254 100 2.000 2.000 2.000 PP Edelstahl 1 22.00
12099
125 0,5 55 38 25 Viskose Edelstahl 1 18.00
12100
125 1 75 55 36 Viskose Edelstahl 1 18.00
12101
125 5 225 100 55 Viskose Edelstahl 1 18.00
12102
125 10 360 162 85 Viskose Edelstahl 1 18.00
12103
125 25 675 450 225 Viskose Edelstahl 1 18.00
12104
125 50 1.000 725 425 Viskose Edelstahl 1 18.00
12105
125 100 1.000 1.000 1.000 Viskose Edelstahl 1 18.00
53943
248 0,5 107 73 48 Viskose Edelstahl 1 22.00
53944
248 1 145 107 70 Viskose Edelstahl 1 22.00
53945
248 5 440 195 107 Viskose Edelstahl 1 22.00
53946
248 10 705 318 165 Viskose Edelstahl 1 22.00
53947
248 25 1.325 880 440 Viskose Edelstahl 1 22.00
53948
248 50 2.000 1.420 930 Viskose Edelstahl 1 22.00
53949
248 100 2.000 2.000 2.000 Viskose Edelstahl 1 22.00
53936
254 0,5 110 75 50 Viskose Edelstahl 1 22.00
53937
254 1 150 110 72 Viskose Edelstahl 1 22.00
53938
254 5 450 200 110 Viskose Edelstahl 1 22.00
53939
254 10 720 325 170 Viskose Edelstahl 1 22.00
53940
254 25 1.350 900 450 Viskose Edelstahl 1 22.00
53941
254 50 2.000 1.450 950 Viskose Edelstahl 1 22.00
53942
254 100 2.000 2.000 2.000 Viskose Edelstahl 1 22.00
