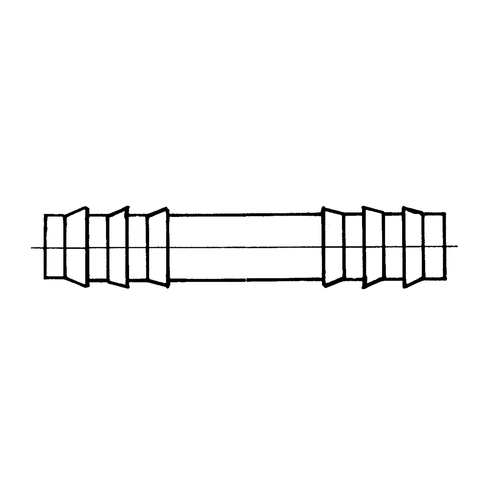

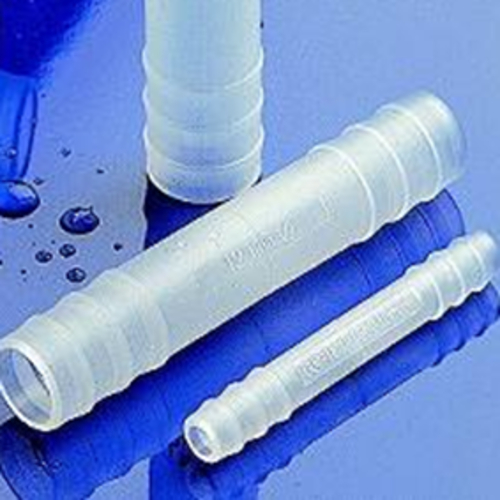

Straight Barb Union made of PP or PVDF
Product specification Tubing connections on both sides Autoclavable at +121 °C, 20 min.... more
Product specification
Tubing connections on both sides
Autoclavable at +121 °C, 20 min.
Suitable for contact with food
Item | Image |
Tubing inside Ø mm
|
NW mm
|
Werkstoff |
max. Temp. °C
|
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|
29363 |
|
3 - 5 | 2 | PP | 135 | 10 | 49.00 | |
29364 |
|
3 - 5 | 2 | PVDF | 160 | 10 | 73.00 | |
29365 |
|
5 - 7 | 4 | PP | 135 | 10 | 55.00 | |
29366 |
|
5 - 7 | 4 | PVDF | 160 | 10 | 75.00 | |
29367 |
|
7 - 9 | 6 | PP | 135 | 10 | 65.00 | |
29368 |
|
7 - 9 | 6 | PVDF | 160 | 10 | 80.00 | |
29369 |
|
9 - 11 | 8 | PP | 135 | 10 | 66.00 | |
29370 |
|
9 - 11 | 8 | PVDF | 160 | 10 | 86.00 | |
29371 |
|
11 - 13 | 10 | PP | 135 | 10 | 67.00 | |
29372 |
|
11 - 13 | 10 | PVDF | 160 | 10 | 94.00 | |
29373 |
|
13 - 15 | 12 | PP | 135 | 10 | 69.00 | |
14274 |
|
13 - 15 | 12 | PVDF | 160 | 10 | 102.00 |
