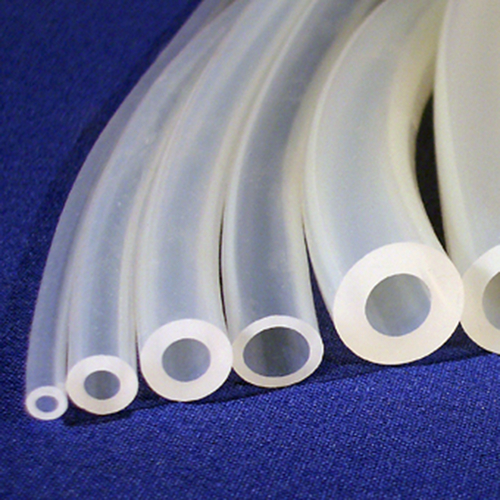

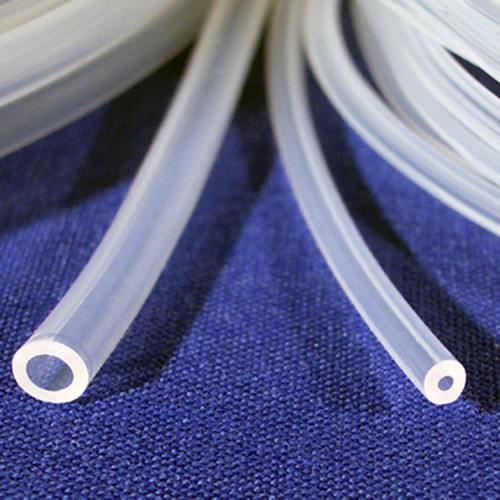

Silicone Pump Tubing - tear- and tension-proof

Application area Analytical technology, biotechnology, medical engineering, process... more

Application area

Analytical technology, biotechnology, medical engineering, process engineering, food processing technology

Product specification

Silicone peristaltic pump tubing are extruded from an especially high-grade silicone elastomer and are vulcanized. The cured goods do not contain any extractable constituents, they are completely odourless and tasteless, physiologically inert, and absolutely well tolerated by the body. Resistance to most organic solvents. The formulation meets the regulations of FDA § 177.2600, USP Class VI and BfR XV.

Free from natural rubber latex, dry natural rubber, or synthetic latex

Technical specification

Material: Silicone (silicone rubber)

Colour: translucent

Shore hardness A: 50°

Temperature range: -55 to +220 °C

Sterilization: autoclavable (+136 °C); hot air (+160 °C)

Density: 1.13 g/cm3

Elongation at break: 640 %

Tearing strength: 9.5 MPa

Tear propagation resistance: 38 kN/m

Regulations: FDA §177.2600; BfR XV; USP Class VI

No additional information available.
Item Image Inside Ø
mm
Außen-Ø
mm
Wandstärke
mm
Einheit
m
Price
Euro*
Buy
11446
0,5 1 0,25 10 132.00
11447
0,5 1,5 0,5 10 147.00
11449
0,8 4 1,6 10 226.00
11450
1 2 0,5 10 171.00
11451
1 3 1 10 136.00
11452
1 5 2 10 244.00
11453
1,5 2,5 0,5 10 162.00
11454
1,5 3,5 1 10 170.00
11455
1,6 4,8 1,6 10 201.00
11456
2 3 0,5 10 187.00
11457
2 4 1 10 194.00
11458
2 4,5 1,25 10 196.00
11459
2,5 3,5 0,5 10 197.00
K11460-3
2,5 4,5 1 3 68.00
11460
2,5 4,5 1 10 197.00
11461
3,2 4,8 0,8 10 200.00
11462
3,2 5,2 1 10 203.00
11463
3,2 6,4 1,6 10 275.00
11464
3,2 7,2 2 10 299.00
11465
3,2 9,5 3,2 10 476.00
11466
4 6 1 10 284.00
11467
4 7,2 1,6 10 285.00
11468
4 8 2 10 315.00
11469
4,5 7,7 1,6 10 299.00
11470
4,8 7,9 1,6 10 301.00
11471
4,8 9,5 2,4 10 391.00
11472
5 7 1 10 287.00
11473
5 8,2 1,6 10 298.00
11474
5 11,4 3,2 10 503.00
11476
5,5 10,5 2,5 10 430.00
11477
6 9,5 1,75 10 366.00
11478
6 10 2 10 369.00
11479
6 14 4 10 495.00
11480
6,4 9,5 1,6 10 355.00
11481
6,4 11,1 2,5 10 408.00
11482
6,4 12,7 3,2 10 431.00
11483
7,5 10,7 1,6 10 410.00
11484
7,9 11,1 1,6 10 425.00
11486
7,9 14,3 3,2 5 303.00
11485
8 12 2 10 434.00
11487
8 16 4 5 319.00
11488
8 18 5 5 404.00
11489
8,5 12,5 2 5 266.00
11491
8,5 16,5 4 5 403.00
11492
9 14 2,5 5 267.00
11493
9 15,4 3,2 5 281.00
11494
9 17 4 5 346.00
11495
9,5 15,9 3,2 5 283.00
11496
10 14 2 5 265.00
11497
10 16,4 3,2 5 269.00
11498
12,7 19 3,2 5 283.00
11499
12,7 20,6 4 5 364.00
11500
15,9 22,2 3,2 5 376.00
11501
19 25,4 3,2 5 412.00
11502
19 28,6 4,8 5 639.00
11504
25,4 31,8 3,2 5 681.00
11505
24,4 35 4,8 5 1,064.00
