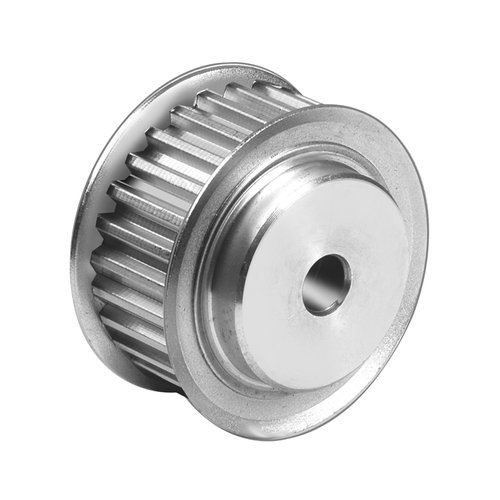

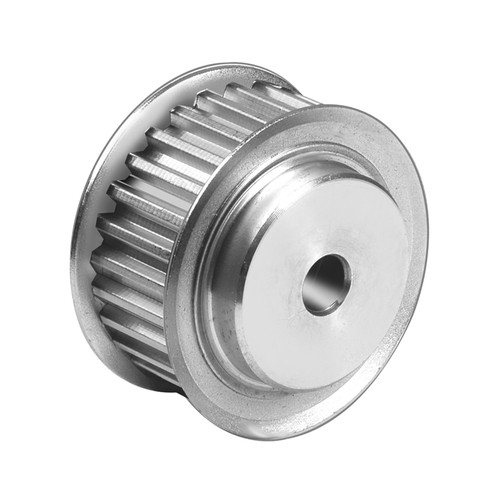

Pulleys T5 made of aluminium

Product specification Pulleys made of aluminium, up to 42 teeth with 2 flanges, from 44 teeth... more

Product specification

Pulleys made of aluminium, up to 42 teeth with 2 flanges, from 44 teeth without flanges

For timing belt profile T5 width 10 mm, 16 and 25 mm

Technical specification

Material:

Housing: aluminium 6082-T6, UNI 9006

Flanges: zinc-plated steel

Bore: some pre-drilled (dimension B), otherwise with centre hole

General Information Use for power transmission, bridging of large centre distances and... more

General Information

Use for power transmission, bridging of large centre distances and alteration of transmission ratios.

For various applications in machinery and plant engineering, in laboratory technology, in industrial and food processing plants, as well as in model making.

Quiet operation and synchronous transmission of power

Maintenance-free. Lubrication is not required.

High efficiency up to 98 %

Belt pre-tension is required

T timing belts made of polyurethane with pitch 2.5 or 5 mm. Light-coloured belts with little abrasion. For standard applications in machine building and food technology, to be used on T pulleys.

AT timing belts made of polyurethane with pitch 5 mm. Reinforced type for high loads with low space requirements. To be used on AT pulleys.

HTD timing belts made of neoprene with pitch 3, 5 or 8 mm. For high power transmission even at high speeds.

Black belts with dark abrasion (not for laboratory operations / food processing). To be used on HTD pulleys.

Notes on mounting and usage:

Pulleys must be aligned (precisely positioned)

The belt tension has to be adjusted (The overall sum of tensioning and peripheral force must not exceed the permitted tensile force of the belt.)

At least one pulley must be equipped with flanges.

And at least 6 teeth should be engaged at any time.

Timing belt drives run without lubrication.

General Information T / AT

Classical, trapezoid profile in accordance with DIN 7721 with metric dimensions

Type T: Standard type for normal set-ups in sizes T 2.5 and T5 in several widths. T timing belts only run on T pulleys.

Type AT: Reinforced type for the transmission of higher torques in size AT 5 in several widths. AT timing belts only run on AT pulleys. Due to their lower flexibility AT timing belts require a larger pulley diameter than T timing belts.

Pulleys available in aluminium (some also in plastic)

T and AT drives are not backlash-free

Good resistance against oils, fats and many chemicals

The timing belts are made of light-coloured plastic with little abrasion

Material: PUR - Polyurethane with tensile members of steel (little lengthening)

Temperature range: -30 to +80 °C

Pitch: T2.5: 2.5 mm; T5: 5.0 mm; AT5: 5.0 mm

Overall height: T2.5: 1.3 mm; T5: 2.2 mm; AT5: 2.7 mm

Tooth height: T2.5: 0.7 mm; T5: 1.2 mm; AT5: 1.2 mm

Tensile force: T2.5: 120 N; T5: 330 N; AT5: 700 N (permissible tensile force at 10 mm belt width)

Item Image Profile Belt width
mm

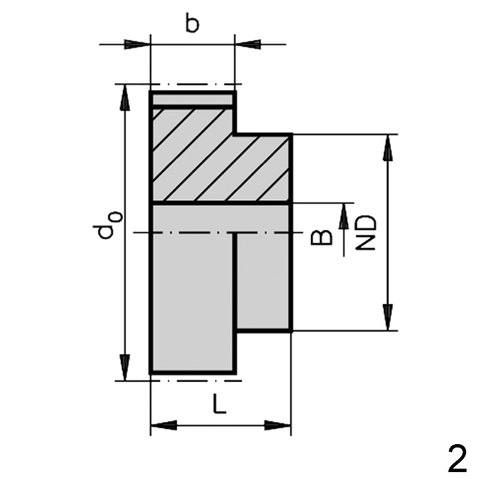

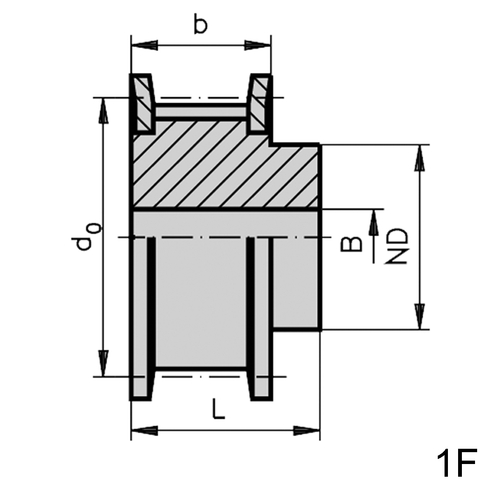

Design Teeth Toothed wheel Ø1
mm
Flanged wheel Ø1
mm
Pitch circle (d0)
mm
Hub Ø (ND)
mm
Tooth width (b)
mm
L
mm
Pilot bore (B)
mm
Weight
g
Unit
piece
Price
Euro*
Buy
701341
T5 10 1F 10 15,05 19,5 15,92 8 15 21 12 5 65.00
701342
T5 10 1F 10 15,05 19,5 15,92 8 15 21 12 10 110.00
701343
T5 10 1F 12 18,25 23 19,1 10 15 21 16 5 70.00
701344
T5 10 1F 12 18,25 23 19,1 10 15 21 16 10 115.00
701345
T5 10 1F 14 21,45 25 22,28 13 15 21 19 5 70.00
701346
T5 10 1F 14 21,45 25 22,28 13 15 21 19 10 115.00
701347
T5 10 1F 15 23,05 28 23,87 16 15 21 21 5 75.00
701348
T5 10 1F 15 23,05 28 23,87 16 15 21 21 10 120.00
701349
T5 10 1F 16 24,6 32 25,46 18 15 21 25 5 80.00
701350
T5 10 1F 16 24,6 32 25,46 18 15 21 25 10 125.00
701351
T5 10 1F 18 27,8 32 28,65 20 15 21 31 5 85.00
701352
T5 10 1F 18 27,8 32 28,65 20 15 21 31 10 140.00
701353
T5 10 1F 19 29,4 36 30,24 22 15 21 36 5 85.00
701354
T5 10 1F 19 29,4 36 30,24 22 15 21 36 10 145.00
701355
T5 10 1F 20 31 36 31,83 23 15 21 38 5 90.00
701356
T5 10 1F 20 31 36 31,83 23 15 21 38 10 145.00
701357
T5 10 1F 22 34,15 38 35,01 24 15 21 46 5 90.00
701358
T5 10 1F 22 34,15 38 35,01 24 15 21 46 10 150.00
701359
T5 10 1F 24 37,4 42 38,2 26 15 21 54 5 95.00
701360
T5 10 1F 24 37,4 42 38,2 26 15 21 54 10 155.00
701361
T5 10 1F 25 38,95 44 39,79 26 15 21 58 5 100.00
701362
T5 10 1F 25 38,95 44 39,79 26 15 21 58 10 160.00
701363
T5 10 1F 26 40,6 44 41,38 26 15 21 62 5 100.00
701364
T5 10 1F 26 40,6 44 41,38 26 15 21 62 10 160.00
701365
T5 10 1F 27 42,2 48 42,97 30 15 21 8 64 5 100.00
701366
T5 10 1F 27 42,2 48 42,97 30 15 21 8 64 10 165.00
701367
T5 10 1F 28 43,75 48 44,56 32 15 21 8 71 5 105.00
701368
T5 10 1F 28 43,75 48 44,56 32 15 21 8 71 10 170.00
701369
T5 10 1F 30 46,95 51 47,75 34 15 21 8 75 5 105.00
701370
T5 10 1F 30 46,95 51 47,75 34 15 21 8 75 10 170.00
701371
T5 10 1F 32 50,1 54 50,93 38 15 21 8 88 5 110.00
701372
T5 10 1F 32 50,1 54 50,93 38 15 21 8 88 10 180.00
701373
T5 10 1F 36 56,45 63 57,3 38 15 21 8 114 5 130.00
701374
T5 10 1F 36 56,45 63 57,3 38 15 21 8 114 10 210.00
701375
T5 10 1F 40 62,85 66 63,66 40 15 21 8 138 2 58.00
701376
T5 10 1F 40 62,85 66 63,66 40 15 21 8 138 6 132.00
701377
T5 10 1F 42 66 71 66,84 40 15 21 8 180 2 60.00
701378
T5 10 1F 42 66 71 66,84 40 15 21 8 180 6 138.00
701379
T5 10 2 44 69,2 70,03 45 15 21 8 185 2 58.00
701380
T5 10 2 44 69,2 70,03 45 15 21 8 185 6 138.00
701381
T5 10 2 48 75,55 76,39 50 15 21 8 200 2 64.00
701382
T5 10 2 48 75,55 76,39 50 15 21 8 200 6 150.00
701383
T5 10 2 60 94,65 95,49 65 15 21 8 307 2 76.00
701384
T5 10 2 60 94,65 95,49 65 15 21 8 307 6 180.00
701385
T5 16 1F 10 15,05 19,5 15,92 8 21 27 16 5 70.00
701386
T5 16 1F 10 15,05 19,5 15,92 8 21 27 16 10 120.00
701387
T5 16 1F 12 18,25 23 19,1 10 21 27 22 5 75.00
701388
T5 16 1F 12 18,25 23 19,1 10 21 27 22 10 125.00
701389
T5 16 1F 14 21,45 25 22,28 13 21 27 26 5 75.00
701390
T5 16 1F 14 21,45 25 22,28 13 21 27 26 10 125.00
701391
T5 16 1F 15 23,05 28 23,87 16 21 27 29 5 80.00
701392
T5 16 1F 15 23,05 28 23,87 16 21 27 29 10 130.00
701393
T5 16 1F 16 24,6 32 25,46 18 21 27 35 5 85.00
701394
T5 16 1F 16 24,6 32 25,46 18 21 27 35 10 135.00
701395
T5 16 1F 18 27,8 32 28,65 20 21 27 43 5 90.00
701396
T5 16 1F 18 27,8 32 28,65 20 21 27 43 10 145.00
701397
T5 16 1F 19 29,4 36 30,24 22 21 27 49 5 95.00
701398
T5 16 1F 19 29,4 36 30,24 22 21 27 49 10 155.00
701399
T5 16 1F 20 31 36 31,83 23 21 27 53 5 100.00
701400
T5 16 1F 20 31 36 31,83 23 21 27 53 10 160.00
701401
T5 16 1F 22 34,15 38 35,01 24 21 27 54 5 100.00
701402
T5 16 1F 22 34,15 38 35,01 24 21 27 54 10 165.00
701403
T5 16 1F 24 37,4 42 38,2 26 21 27 76 5 100.00
701404
T5 16 1F 24 37,4 42 38,2 26 21 27 76 10 165.00
701405
T5 16 1F 25 38,95 44 39,79 26 21 27 81 5 105.00
701406
T5 16 1F 25 38,95 44 39,79 26 21 27 81 10 170.00
701407
T5 16 1F 26 40,6 44 41,38 26 21 27 85 5 105.00
701408
T5 16 1F 26 40,6 44 41,38 26 21 27 85 10 170.00
701409
T5 16 1F 27 42,2 48 42,97 30 21 27 8 90 5 110.00
701410
T5 16 1F 27 42,2 48 42,97 30 21 27 8 90 10 180.00
701411
T5 16 1F 28 43,75 48 44,56 32 21 27 8 92 5 115.00
701412
T5 16 1F 28 43,75 48 44,56 32 21 27 8 92 10 190.00
701413
T5 16 1F 30 46,95 51 47,75 34 21 27 8 105 5 115.00
701414
T5 16 1F 30 46,95 51 47,75 34 21 27 8 105 10 190.00
701415
T5 16 1F 32 50,1 54 50,93 38 21 27 8 123 5 130.00
701416
T5 16 1F 32 50,1 54 50,93 38 21 27 8 123 10 210.00
701417
T5 16 1F 36 56,45 63 57,3 38 21 27 8 160 2 56.00
701418
T5 16 1F 36 56,45 63 57,3 38 21 27 8 160 6 132.00
701419
T5 16 1F 40 62,85 66 63,66 40 21 27 8 193 2 64.00
701420
T5 16 1F 40 62,85 66 63,66 40 21 27 8 193 6 144.00
701421
T5 16 1F 42 66 71 66,84 40 21 27 8 205 2 66.00
701422
T5 16 1F 42 66 71 66,84 40 21 27 8 205 6 150.00
701423
T5 16 2 44 69,2 70,03 45 21 27 8 228 2 68.00
701424
T5 16 2 44 69,2 70,03 45 21 27 8 228 6 156.00
701425
T5 16 2 48 75,55 76,39 50 21 27 8 280 2 70.00
701426
T5 16 2 48 75,55 76,39 50 21 27 8 280 6 168.00
701427
T5 16 2 60 94,65 95,49 65 21 27 8 430 2 88.00
701428
T5 16 2 60 94,65 95,49 65 21 27 8 430 6 210.00
701429
T5 25 1F 10 15,05 19,5 15,92 8 30 36 20 3 57.00
701430
T5 25 1F 10 15,05 19,5 15,92 8 30 36 20 10 150.00
701431
T5 25 1F 12 18,25 23 19,1 10 30 36 30 3 57.00
701432
T5 25 1F 12 18,25 23 19,1 10 30 36 30 10 150.00
701433
T5 25 1F 14 21,45 25 22,28 13 30 36 40 3 60.00
701434
T5 25 1F 14 21,45 25 22,28 13 30 36 40 10 160.00
701435
T5 25 1F 15 23,05 28 23,87 16 30 36 40 3 60.00
701436
T5 25 1F 15 23,05 28 23,87 16 30 36 40 10 160.00
701437
T5 25 1F 16 24,6 32 25,46 18 30 36 50 3 63.00
701438
T5 25 1F 16 24,6 32 25,46 18 30 36 50 10 170.00
701439
T5 25 1F 18 27,8 32 28,65 20 30 36 60 3 66.00
701440
T5 25 1F 18 27,8 32 28,65 20 30 36 60 10 175.00
701441
T5 25 1F 19 29,4 36 30,24 22 30 36 70 3 69.00
701442
T5 25 1F 19 29,4 36 30,24 22 30 36 70 10 180.00
701443
T5 25 1F 20 31 36 31,83 23 30 36 80 3 72.00
701444
T5 25 1F 20 31 36 31,83 23 30 36 80 10 190.00
701445
T5 25 1F 22 34,15 38 35,01 24 30 36 80 3 72.00
701446
T5 25 1F 22 34,15 38 35,01 24 30 36 80 10 190.00
701447
T5 25 1F 24 37,4 42 38,2 26 30 36 110 3 75.00
701448
T5 25 1F 24 37,4 42 38,2 26 30 36 110 10 200.00
701449
T5 25 1F 25 38,95 44 39,79 26 30 36 120 3 78.00
701450
T5 25 1F 25 38,95 44 39,79 26 30 36 120 10 210.00
701451
T5 25 1F 26 40,6 44 41,38 26 30 36 120 3 81.00
701452
T5 25 1F 26 40,6 44 41,38 26 30 36 120 10 215.00
701453
T5 25 1F 27 42,2 48 42,97 30 30 36 8 130 2 56.00
701454
T5 25 1F 27 42,2 48 42,97 30 30 36 8 130 6 126.00
701455
T5 25 1F 28 43,75 48 44,56 32 30 36 8 140 2 56.00
701456
T5 25 1F 28 43,75 48 44,56 32 30 36 8 140 6 126.00
701457
T5 25 1F 30 46,95 51 47,75 34 30 36 8 150 2 56.00
701458
T5 25 1F 30 46,95 51 47,75 34 30 36 8 150 6 126.00
701459
T5 25 1F 32 50,1 54 50,93 38 30 36 8 180 2 62.00
701460
T5 25 1F 32 50,1 54 50,93 38 30 36 8 180 6 138.00
701461
T5 25 1F 36 56,45 63 57,3 38 30 36 8 230 2 64.00
701462
T5 25 1F 36 56,45 63 57,3 38 30 36 8 230 6 150.00
701463
T5 25 1F 40 62,85 66 63,66 40 30 36 8 280 2 66.00
701464
T5 25 1F 40 62,85 66 63,66 40 30 36 8 280 6 156.00
701465
T5 25 1F 42 66 71 66,84 40 30 36 8 290 2 72.00
701466
T5 25 1F 42 66 71 66,84 40 30 36 8 290 6 168.00
701467
T5 25 1F 44 69,2 70,03 45 30 36 8 310 2 72.00
701468
T5 25 1F 44 69,2 70,03 45 30 36 8 310 6 174.00
701469
T5 25 1F 48 75,55 76,39 50 30 36 8 400 2 82.00
701470
T5 25 1F 48 75,55 76,39 50 30 36 8 400 6 192.00
701471
T5 25 1F 60 94,65 95,49 65 30 36 8 610 2 102.00
701472
T5 25 1F 60 94,65 95,49 65 30 36 8 610 6 240.00
