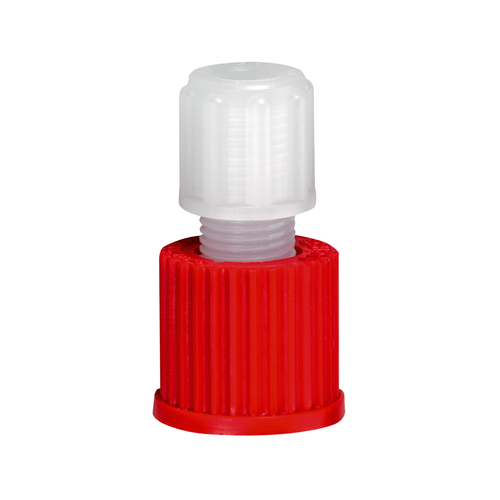

Tube Connector made of PP, PVDF or PFA - loose GL-nut

Product specification Tube connection on one side, loose cap nut with GL threat and O-ring on... more

Product specification

Tube connection on one side, loose cap nut with GL threat and O-ring on the other side.

The glass thread apapter is used as a connecting element between the laboratory glass cylinder with GL thread and a pipe.

The connector is suitable for max. 6 bar (at +20 ° C)

General Information The glass thread adapter G3 serves as a connecting element between the... more

General Information

The glass thread adapter G3 serves as a connecting element between the laboratory glass cylinder with GL thread and either a hose or pipe connection or a external G-thread.

The adapter has on the one hand the rotatable union nut with GL thread, on the other hand a external G-thread, a hose or pipe connection, so that there are various connection options.

Available in PP, PVDF or PFA (high-quality materials) for chemically demanding applications.

The GL union nut is made of PBT (polybutylene terephthalate) with 30 % glass fiber.

An O-ring made of FPM is used for sealing, which can also be exchanged for EPDM or FFKM on request.

PP (Polypropylene)

Extremely good impact toughness and notch impact strength

Higher hardness and stiffness as well as better resilience than PE

Thermoforming possible

Very good dielectrical properties

Good resistance to alcohols, ketones, conc. acids and alkalis

Not stable to aromatic hydrocarbons, fats and oils, halogenes

Autoclavable

Resistant to hydrolysis

Physiologically safe

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: grey

Density: 0.90 g/cm3

Temperature range: +5 to +90 °C

Shore hardness D: 72°

Max. operating pressure: 6 bar at +20 °C

Water absorption: <0.05 %

Tensile strength: 25 - 40 N/mm2

Elongation at break: 800 %

Surface resistance: >1013 Ohm

Melt flow index MFR: 0.3 g/10 min.

PVDF (Polyvinylidene fluoride)

High-quality technical plastic for chemical apparatus and machine building, especially in the petrochemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology.

High impact toughness even at low temperatures

Good breakdown strength

Low dielectric loss factor

Highest mechanical stability and stiffness

Meeting highest purity requirements

Comply with the guidelines from FDA and USP class VI, additionally PVDF has the KTW approval. Up to +150 °C it is non-toxic and since it has a similar property to glass it is a no-culture medium for microorganisms.

Can be treated by autoclave (absolute sterile) and sterilized with gamma-rays without losing its mechanical qualities

Outstanding resistance to UV, weather and aging

Flame-resistant

High thermal stability

Resistant to alcohols, fats and oils, halogenes, alkalis, acids

Not stable to aromatic hydrocarbons, ketones, amines, pyridine, dimethylformamide, hot alkalis, fuming sulfuric acid

Colour: nature, slightly translucent

Density: 1.75 g/cm3

Temperature range: -40 to +140 °C

Shore hardness D: 79°

Max. operating pressure: 6 bar at +20 °C

Water absorption: <0.04 %

Tensile strength: 38 - 50 N/mm2

Surface resistance: >1013 Ohm

Melt flow index MFR: 6 g/10 min.

PFA (Perfluoroalkoxy)

High-quality technical plastic for chemical apparatus and machine construction as well as electrical engineering

Chemical, thermal and dielectrical properties practically such as PTFE, but suitable for thermoplastic processing (welding, die casting, deep drawing). Lower medium diffusion, better transparency, larger hardness and better dimensional stability (lower tendency to cold flow) compared to PTFE.

Highest temperature resistance of all meltable fluorinated plastics

Very high dimensional stability in heat

Very high resistance to media

Very good pressure resistance

Low friction coefficient

Can be treated by autoclave (absolute sterile)

Comply with the guidelines from FDA and USP class VI.

Excellent resistance to weather

Flame-resistant

Colour: milky, translucent

Density: 2.10 g/cm3

Temperature range: -200 to +200 °C (highest dimensional stability in heat)

Shore hardness D: 60° to 65°

Max. operating pressure: 6 bar at +20 °C

Coefficient of sliding friction: 0.2 - 0.3 (dynamic against steel, dry)

Tensile strength: 27 to 32 N/mm2 at +23 °C

Water absorption: <0.03 %

Dielectric constant: 2,1

Surface resistance: >1017 Ohm

FPM (Fluorinated rubber)

FPM is a polymer of highest quality made of fluorinated hydrocarbons (fluorine content 64 % to 70 %) and belongs to the group of elastomers

FPM has the best resistance to swelling in mineral oils compared to all elastomers

Highest sealing force in continuous operation (after 100 h at +150 °C in air still 90 % of the initial sealing force)

Lowest evaporation rates at high vacuum

Low permeability to gas

Outstanding radiation resistance

Excellent chemical and physical properties, almost identical to those of PTFE. The essential difference compared to PTFE is the lower cold flow, lower diffusion and better transparency.

High chemical resistance to many chemicals, ozone, heat and weather.

Unstable to polar solvents such as ketones and esters (considerable swelling), organic acids (acetic acid or formic acid), strong bases such as amines (chemical attack).

Not suitable for applications at temperatures below -20 °C as well as in hot steam.

Colour: black

Density: 1.10 g/cm3

Temperature range: -30 to +220 °C, for a short time +300 °C

Water absorption: no data

Tensile strength: 13 N/mm2

Elongation at break: 450 %

Shore hardness A: 75°

Surface resistance: no data

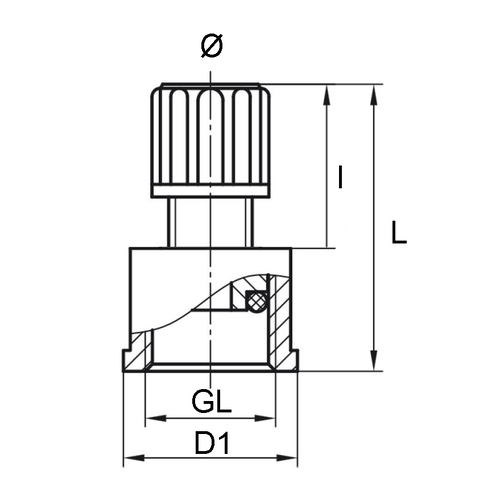

Item Image Tubing inside Ø
mm
Schlauch Außen-Ø
mm
Schlauch Innen-Ø
Zoll
Schlauch Außen-Ø
Zoll
Innengewinde D1
mm
l
mm
L
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
341882
4 6 GL14 20 19 36 PP 1 20.00
341883
4 6 GL14 20 19 36 PVDF 1 24.00
341884
4 6 GL14 20 19 36 PFA 1 50.00
341885
4 6 GL18 24 18 38 PP 1 20.00
341886
4 6 GL18 24 18 38 PVDF 1 24.00
341887
4 6 GL18 24 18 38 PFA 1 50.00
341888
4 6 GL25 33 16 39 PP 1 21.00
341889
4 6 GL25 33 16 39 PVDF 1 25.00
341890
4 6 GL25 33 16 39 PFA 1 52.00
341891
4 6 GL32 42 26 52 PP 1 21.00
341892
4 6 GL32 42 26 52 PVDF 1 26.00
341893
4 6 GL32 42 26 52 PFA 1 54.00
341894
6 8 GL14 20 24 36 PP 1 20.00
341895
6 8 GL14 20 24 36 PVDF 1 24.00
341896
6 8 GL14 20 24 36 PFA 1 50.00
341897
6 8 GL18 24 23 43 PP 1 21.00
341898
6 8 GL18 24 23 43 PVDF 1 26.00
341899
6 8 GL18 24 23 43 PFA 1 58.00
341900
6 8 GL25 33 21 44 PP 1 24.00
341901
6 8 GL25 33 21 44 PVDF 1 28.00
341902
6 8 GL25 33 21 44 PFA 1 59.00
341903
6 8 GL32 42 28 54 PP 1 24.00
341904
6 8 GL32 42 28 54 PVDF 1 29.00
341905
6 8 GL32 42 28 54 PFA 1 61.00
341906
8 10 GL25 33 33 56 PP 1 29.00
341907
8 10 GL25 33 33 56 PVDF 1 34.00
341908
8 10 GL25 33 33 56 PFA 1 69.00
341909
8 10 GL32 42 33 59 PP 1 30.00
341910
8 10 GL32 42 33 59 PVDF 1 35.00
341911
8 10 GL32 42 33 59 PFA 1 71.00
341912
10 12 GL25 33 37 60 PP 1 38.00
341913
10 12 GL25 33 37 60 PVDF 1 47.00
341914
10 12 GL25 33 37 60 PFA 1 95.00
341915
10 12 GL32 42 37 63 PP 1 39.00
341916
10 12 GL32 42 37 63 PVDF 1 48.00
341917
10 12 GL32 42 37 63 PFA 1 94.00
341918
1/8" 1/4" GL14 20 19 36 PP 1 20.00
341919
1/8" 1/4" GL14 20 19 36 PVDF 1 24.00
341920
1/8" 1/4" GL14 20 19 36 PFA 1 50.00
341921
1/8" 1/4" GL18 24 19 36 PP 1 20.00
341922
1/8" 1/4" GL18 24 19 36 PVDF 1 24.00
341923
1/8" 1/4" GL18 24 19 36 PFA 1 50.00
341924
1/8" 1/4" GL25 33 19 36 PP 1 21.00
341925
1/8" 1/4" GL25 33 19 36 PVDF 1 25.00
341926
1/8" 1/4" GL25 33 19 36 PFA 1 52.00
341927
1/8" 1/4" GL32 42 19 36 PP 1 21.00
341928
1/8" 1/4" GL32 42 19 36 PVDF 1 26.00
341929
1/8" 1/4" GL32 42 19 36 PFA 1 54.00
341930
1/4" 3/8" GL18 24 23 43 PP 1 21.00
341931
1/4" 3/8" GL18 24 23 43 PVDF 1 26.00
341932
1/4" 3/8" GL18 24 23 43 PFA 1 58.00
341933
1/4" 3/8" GL25 33 36 59 PP 1 29.00
341934
1/4" 3/8" GL25 33 36 59 PVDF 1 34.00
341935
1/4" 3/8" GL25 33 36 59 PFA 1 69.00
341936
1/4" 3/8" GL32 42 33 59 PP 1 30.00
341937
1/4" 3/8" GL32 42 33 59 PVDF 1 35.00
341938
1/4" 3/8" GL32 42 33 59 PFA 1 71.00
341939
3/8" 1/2" GL25 33 37 60 PP 1 38.00
341940
3/8" 1/2" GL25 33 37 60 PVDF 1 47.00
341941
3/8" 1/2" GL25 33 37 60 PFA 1 95.00
341942
3/8" 1/2" GL32 42 37 63 PP 1 39.00
341943
3/8" 1/2" GL32 42 37 63 PVDF 1 48.00
341944
3/8" 1/2" GL32 42 37 63 PFA 1 94.00
