No additional information available.

General Information O-Rings These O-Ring materials are specially developed for use in the... more

Close menu

General Information O-Rings

These O-Ring materials are specially developed for use in the food processing, pharmaceutical, petrochemical and chemical industries, as well as in technological processes

Design: O-Rings are vulcanised in moulds

Method of operation: O-Rings are double-acting sealing elements. The initial squeeze acting in a radial or axial direction due to the installation gives the O-Ring its initial sealing capability. These forces are superimposed by the system pressure to create the total sealing force which increases with increasing system pressure. Under pressure, the O-Ring behaves in a similar way to a fluid with high surface tension. The pressure is transmitted uniformly to all directions (see Figure Sealing forces).

Compared with other sealing elements, the O-Ring has a wide range of advantages: Inexpensive, allows low cost solutions; simple, one-piece groove design reduces hardware and design costs; compact design allows smaller hardware; easy, foolproof installation reduces risk; applicable to a wide range of sealing problems, static, dynamic, single or double acting; wide compound choice for compatibility with most fluids

Most common applications: Sealing of static machine parts against liquid or gaseous media; as a radial static seal, e.g. for bushings, covers, pipes, cylinders; as an axial static seal, e.g. for flanges, plates, caps; as a dynamic sealing element at axial, rotating and oscillating movements

Branch-specific sealing solutions: Approvals and conformities in the food processing industry: ADI free, FDA, 3-A; Sanitary Standards; pharmaceutical industry: ADI free, USP Class VI

Petrochemical industry: ex. decompression

Chemistry: permeation density and chemical stability

Dimensions: Inched ARP 001 - 932; Metric ID 3 - 193 mm; Cord thickness 1 - 8 mm

Manufacturing: According to the latest standards, with an optimal tool park, for quick and flexible handling, the traceability of materials is guaranteed, all parts go through a quality check before packaging

Usual application areas for elastomers regarding temperature and polarity of the used media

Approvals and certificates in the food, pharmaceutical and drinking water industries (see list of approvals)

Usual cleaning media for continuous plants in the food and pharmaceutical industries (see list of cleaning products)

General Information EPDM

Very well suited for use in:

Hot water and water steam (constant +180 °C, short-term +210 °C)

Glycoles and brake fluids (on glycol base)

Acids (hydrochloric and nitric acid)

Bases (sodium hydroxide, potassium hydroxide)

Ozone (+40 °C, 200 pphm) and oxygen

CIP /SIP media for continuous plants in the food, beverage and pharmaceutical industries (see EPDM diagram and fat diagram)

CIP (Cleaning in Place) = diluted acids or bases combined with cleaning additives

SIP (Sterilization in Place) = disinfectants, steam, oxidizing media (e.g. peracetic acid) and / or polar organic solvents (e.g. acetic acid)

Well suited for use in animal fats at low temperatures

Should not be used in mineral fats, oils and waxes, fuels

Recommended lubricant for installation:

Silicone grease (e.g. Paraliq GTE 703 with NSF H1 approval) (see fat diagram)

Explanation: This EPDM O-Ring (at low temperatures) is very well suited even at high fat content. Once the curve in the diagram is achieved, another suitable material type (FPM, VMQ or HNBR) should be chosen for the respective application.

Food quality

Very good resistance to weather and aging

Very good resistance to light

Good cold and thermal resistance

Good elastic behaviour

Good elongation at break and tearing strength

Very good abrasion resistance

Very good resistance to polar and oxidative media

Material: EPDM (ethylene-propylene-diene rubber)

Color: black

Crosslinking: peroxidic

Shore hardness A: 75° ±5 (test plate) (DIN 53505)

IRHD: 70 +5/-8 (o-ring) (DIN ISO 48 M)

Density: 1.09 g/cm³ (DIN EN ISO 1183)

Rebound elasticity: 46 % (DIN 53512)

Modulus at 100 % elongation: 9.8 N/mm² (DIN 53504)

Tensile strength: 16.2 N/mm² (DIN 53504)

Elongation at break: 165 % (DIN 53504)

Tear propagation resistance: 11.5 N/mm² (DIN 53515)

Compression set:

10 % at +100 °C / 24 h / 25 %

15 % at +150 °C / 24 h / 25 %

24 % at +150 °C / 70 h / 25 % (DIN ISO 815)

Temperature range: -40 to +150 °C in air; -40 to +180 °C in water and steam

Sterilization temperature: +121 °C (perishable foods and pharmacy)

Cleaning temperature: +82 °C (perishable foods)

Regulations:

For the food processing industry: conforming to FDA (21 CFR 177.2600)

Free from animal derived ingredients (ADI free)

For perishable foods: 3-A Sanitary Standards Class II

For the pharmacy: USP Plastic Class VI up to +121 °C

For the drinking water industry: USA (NSF 61); GB (WRAS); Austria (ÖVGW); France (ACS); Germany (DVGW) KTW, W 270, W 534

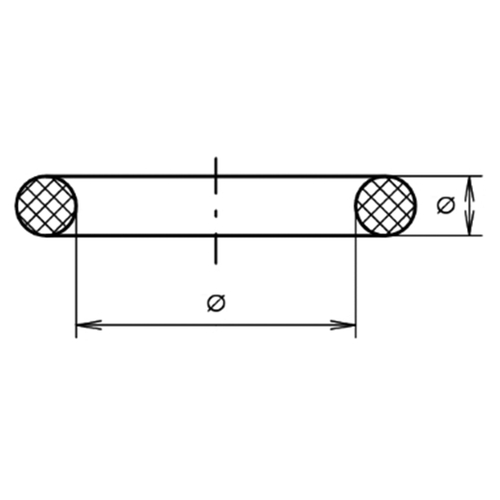

Item	Inside Ø mm	Schnur Ø mm	Einheit Stück	Price Euro*
400000	0,74	1,02	10	45.00
400001	0,74	1,02	20	78.00
400002	1,07	1,27	10	45.00
400003	1,07	1,27	20	78.00
400004	4,2	1,42	10	45.00
400005	4,2	1,42	20	78.00
400006	1,42	1,52	10	45.00
400007	1,42	1,52	20	78.00
400010	7,65	1,63	10	50.00
400011	7,65	1,63	20	86.00
400012	1,78	1,78	10	50.00
400013	1,78	1,78	20	86.00
400014	2,57	1,78	10	50.00
400015	2,57	1,78	20	86.00
400016	2,9	1,78	10	50.00
400017	2,9	1,78	20	86.00
400018	3,68	1,78	10	50.00
400019	3,68	1,78	20	86.00
400020	4,47	1,78	10	50.00
400021	4,47	1,78	20	86.00
400022	5,28	1,78	10	50.00
400023	5,28	1,78	20	86.00
400024	6,07	1,78	10	50.00
400025	6,07	1,78	20	86.00
400026	7,65	1,78	10	50.00
400027	7,65	1,78	20	86.00
400028	9,25	1,78	10	50.00
400029	9,25	1,78	20	86.00
400030	10,82	1,78	10	50.00
400031	10,82	1,78	20	86.00
400032	12,42	1,78	10	50.00
400033	12,42	1,78	20	86.00
400034	14	1,78	10	50.00
400035	14	1,78	20	86.00
400036	15,6	1,78	10	50.00
400037	15,6	1,78	20	86.00
400038	17,17	1,78	10	50.00
400039	17,17	1,78	20	86.00
400040	18,77	1,78	10	52.00
400041	18,77	1,78	20	88.00
400042	20,35	1,78	10	52.00
400043	20,35	1,78	20	88.00
400044	21,95	1,78	10	52.00
400045	21,95	1,78	20	88.00
400046	23,52	1,78	10	52.00
400047	23,52	1,78	20	88.00
400048	25,12	1,78	10	63.00
400049	25,12	1,78	20	105.00
400050	26,7	1,78	10	63.00
400051	26,7	1,78	20	105.00
400052	28,3	1,78	10	63.00
400053	28,3	1,78	20	105.00
400054	29,87	1,78	10	63.00
400055	29,87	1,78	20	105.00
400056	31,47	1,78	10	63.00
400057	31,47	1,78	20	105.00
400058	33,05	1,78	10	63.00
400059	33,05	1,78	20	105.00
400060	34,65	1,78	10	80.00
400061	34,65	1,78	20	133.00
400062	37,82	1,78	10	80.00
400063	37,82	1,78	20	133.00
400064	41	1,78	10	80.00
400065	41	1,78	20	133.00
400066	44,17	1,78	10	80.00
400067	44,17	1,78	20	133.00
400068	47,35	1,78	10	80.00
400069	47,35	1,78	20	133.00
400070	50,52	1,78	10	80.00
400071	50,52	1,78	20	133.00
400072	53,7	1,78	10	101.00
400073	53,7	1,78	20	172.00
400074	56,87	1,78	10	101.00
400075	56,87	1,78	20	172.00
400076	60,05	1,78	10	101.00
400077	60,05	1,78	20	172.00
400078	63,22	1,78	10	101.00
400079	63,22	1,78	20	172.00
400080	66,4	1,78	10	101.00
400081	66,4	1,78	20	172.00
400082	69,57	1,78	10	101.00
400083	69,57	1,78	20	172.00
400084	72,75	1,78	10	101.00
400085	72,75	1,78	20	172.00
400086	75,92	1,78	5	78.00
400087	75,92	1,78	10	133.00
400088	82,27	1,78	5	78.00
400089	82,27	1,78	10	133.00
400090	88,62	1,78	5	78.00
400091	88,62	1,78	10	133.00
400092	94,97	1,78	5	78.00
400093	94,97	1,78	10	133.00
400094	101,32	1,78	5	78.00
400095	101,32	1,78	10	133.00
400096	107,67	1,78	5	93.00
400097	107,67	1,78	10	159.00
400098	114,02	1,78	5	93.00
400099	114,02	1,78	10	159.00
400100	120,37	1,78	5	93.00
400101	120,37	1,78	10	159.00
400102	126,72	1,78	5	93.00
400103	126,72	1,78	10	159.00
400104	133,07	1,78	5	93.00
400105	133,07	1,78	10	159.00
400106	8,92	1,83	10	60.00
400107	8,92	1,83	20	103.00
400108	10,52	1,83	10	60.00
400109	10,52	1,83	20	103.00
400110	11,89	1,98	10	60.00
400111	11,89	1,98	20	103.00
400112	13,46	2,08	10	60.00
400113	13,46	2,08	20	103.00
400114	16,6	2,4	10	60.00
400115	16,6	2,4	20	103.00
400116	17,93	2,46	10	63.00
400117	17,93	2,46	20	110.00
400118	19,18	2,46	10	63.00
400119	19,18	2,46	20	110.00
400120	21,92	2,46	10	63.00
400121	21,92	2,46	20	110.00
400122	1,24	2,62	10	63.00
400123	1,24	2,62	20	110.00
400124	2,06	2,62	10	63.00
400125	2,06	2,62	20	110.00
400126	2,84	2,62	10	63.00
400127	2,84	2,62	20	110.00
400128	3,63	2,62	10	63.00
400129	3,63	2,62	20	110.00
400130	4,42	2,62	10	63.00
400131	4,42	2,62	20	110.00
400132	5,23	2,62	10	63.00
400133	5,23	2,62	20	110.00
400134	6,02	2,62	10	63.00
400135	6,02	2,62	20	110.00
400136	7,59	2,62	10	63.00
400137	7,59	2,62	20	110.00
400138	9,19	2,62	10	63.00
400139	9,19	2,62	20	110.00
400140	10,77	2,62	10	63.00
400141	10,77	2,62	20	110.00
400142	12,37	2,62	10	63.00
400143	12,37	2,62	20	110.00
400144	13,94	2,62	10	63.00
400145	13,94	2,62	20	110.00
400146	15,54	2,62	10	63.00
400147	15,54	2,62	20	110.00
400148	17,12	2,62	10	63.00
400149	17,12	2,62	20	110.00
400150	18,72	2,62	10	63.00
400151	18,72	2,62	20	110.00
400152	20,29	2,62	10	67.00
400153	20,29	2,62	20	114.00
400154	21,89	2,62	10	67.00
400155	21,89	2,62	20	114.00
400156	23,47	2,62	10	67.00
400157	23,47	2,62	20	114.00
400158	25,07	2,62	10	67.00
400159	25,07	2,62	20	114.00
400160	26,64	2,62	10	67.00
400161	26,64	2,62	20	114.00
400162	28,24	2,62	10	67.00
400163	28,24	2,62	20	114.00
400164	29,82	2,62	10	67.00
400165	29,82	2,62	20	114.00
400166	31,42	2,62	10	86.00
400167	31,42	2,62	20	144.00
400168	32,99	2,62	10	86.00
400169	32,99	2,62	20	144.00
400170	34,59	2,62	10	86.00
400171	34,59	2,62	20	144.00
400172	36,17	2,62	10	86.00
400173	36,17	2,62	20	144.00
400174	37,77	2,62	10	86.00
400175	37,77	2,62	20	144.00
400176	39,34	2,62	10	86.00
400177	39,34	2,62	20	144.00
400178	40,94	2,62	10	86.00
400179	40,94	2,62	20	144.00
400180	42,52	2,62	10	86.00
400181	42,52	2,62	20	144.00
400182	44,12	2,62	10	86.00
400183	44,12	2,62	20	144.00
400184	45,69	2,62	10	86.00
400185	45,69	2,62	20	144.00
400186	47,29	2,62	10	99.00
400187	47,29	2,62	20	170.00
400188	48,9	2,62	10	99.00
400189	48,9	2,62	20	170.00
400190	50,47	2,62	10	99.00
400191	50,47	2,62	20	170.00
400192	52,07	2,62	10	99.00
400193	52,07	2,62	20	170.00
400194	53,64	2,62	10	99.00
400195	53,64	2,62	20	170.00
400196	55,25	2,62	10	99.00
400197	55,25	2,62	20	170.00
400198	56,82	2,62	10	99.00
400199	56,82	2,62	20	170.00
400200	58,42	2,62	10	99.00
400201	58,42	2,62	20	170.00
400202	59,99	2,62	10	116.00
400203	59,99	2,62	20	197.00
400204	61,6	2,62	10	116.00
400205	61,6	2,62	20	197.00
400206	63,17	2,62	10	116.00
400207	63,17	2,62	20	197.00
400208	64,77	2,62	10	116.00
400209	64,77	2,62	20	197.00
400210	66,34	2,62	10	116.00
400211	66,34	2,62	20	197.00
400212	67,95	2,62	10	116.00
400213	67,95	2,62	20	197.00
400214	69,52	2,62	10	140.00
400215	69,52	2,62	20	234.00
400216	71,12	2,62	10	140.00
400217	71,12	2,62	20	234.00
400218	72,69	2,62	10	140.00
400219	72,69	2,62	20	234.00
400220	75,87	2,62	10	140.00
400221	75,87	2,62	20	234.00
400222	82,22	2,62	10	140.00
400223	82,22	2,62	20	234.00
400224	88,57	2,62	10	140.00
400225	88,57	2,62	20	234.00
400226	94,92	2,62	5	101.00
400227	94,92	2,62	10	174.00
400228	101,27	2,62	5	101.00
400229	101,27	2,62	10	174.00
400230	107,62	2,62	5	127.00
400231	107,62	2,62	10	217.00
400232	113,97	2,62	5	127.00
400233	113,97	2,62	10	217.00
400234	120,32	2,62	5	127.00
400235	120,32	2,62	10	217.00
400236	126,67	2,62	5	127.00
400237	126,67	2,62	10	217.00
400238	133,02	2,62	5	131.00
400239	133,02	2,62	10	221.00
400240	139,37	2,62	5	131.00
400241	139,37	2,62	10	221.00
400242	145,72	2,62	5	131.00
400243	145,72	2,62	10	221.00
400244	152,07	2,62	5	131.00
400245	152,07	2,62	10	221.00
400246	158,42	2,62	5	137.00
400247	158,42	2,62	10	223.00
400248	164,77	2,62	5	137.00
400249	164,77	2,62	10	223.00
400250	171,12	2,62	5	137.00
400251	171,12	2,62	10	223.00
400252	177,47	2,62	5	137.00
400253	177,47	2,62	10	223.00
400254	183,82	2,62	5	148.00
400255	183,82	2,62	10	240.00
400256	190,17	2,62	5	148.00
400257	190,17	2,62	10	240.00
400258	196,52	2,62	5	148.00
400259	196,52	2,62	10	240.00
400260	202,87	2,62	5	148.00
400261	202,87	2,62	10	240.00
400262	209,22	2,62	5	163.00
400263	209,22	2,62	10	262.00
400264	215,57	2,62	5	163.00
400265	215,57	2,62	10	262.00
400266	221,92	2,62	5	163.00
400267	221,92	2,62	10	262.00
400268	228,27	2,62	5	163.00
400269	228,27	2,62	10	262.00
400270	234,62	2,62	5	163.00
400271	234,62	2,62	10	262.00
400272	240,97	2,62	5	163.00
400273	240,97	2,62	10	262.00
400274	247,32	2,62	5	163.00
400275	247,32	2,62	10	262.00
400276	23,47	2,95	10	88.00
400277	23,47	2,95	20	152.00
400278	25,04	2,95	10	88.00
400279	25,04	2,95	20	152.00
400280	26,59	2,95	10	88.00
400281	26,59	2,95	20	152.00
400282	29,74	2,95	10	88.00
400283	29,74	2,95	20	152.00
400284	34,42	2,95	10	88.00
400285	34,42	2,95	20	152.00
400286	37,47	3	10	88.00
400287	37,47	3	20	152.00
400288	43,69	3	10	93.00
400289	43,69	3	20	156.00
400290	53,09	3	10	127.00
400291	53,09	3	20	212.00
400292	60	3	10	127.00
400293	60	3	20	212.00
400294	4,34	3,53	10	60.00
400295	4,34	3,53	20	101.00
400296	5,94	3,53	10	60.00
400297	5,94	3,53	20	101.00
400298	7,52	3,53	10	60.00
400299	7,52	3,53	20	101.00
400300	9,12	3,53	10	60.00
400301	9,12	3,53	20	101.00
400302	10,69	3,53	10	69.00
400303	10,69	3,53	20	118.00
400304	12,29	3,53	10	69.00
400305	12,29	3,53	20	118.00
400306	13,87	3,53	10	69.00
400307	13,87	3,53	20	118.00
400308	15,47	3,53	10	69.00
400309	15,47	3,53	20	118.00
400310	17,04	3,53	10	69.00
400311	17,04	3,53	20	118.00
400312	18,64	3,53	10	69.00
400313	18,64	3,53	20	118.00
400314	20,22	3,53	10	69.00
400315	20,22	3,53	20	118.00
400316	21,82	3,53	10	82.00
400317	21,82	3,53	20	140.00
400318	23,39	3,53	10	82.00
400319	23,39	3,53	20	140.00
400320	24,99	3,53	10	82.00
400321	24,99	3,53	20	140.00
400322	26,57	3,53	10	82.00
400323	26,57	3,53	20	140.00
400324	28,17	3,53	10	82.00
400325	28,17	3,53	20	140.00
400326	29,74	3,53	10	82.00
400327	29,74	3,53	20	140.00
400328	31,34	3,53	10	82.00
400329	31,34	3,53	20	140.00
400330	32,92	3,53	10	82.00
400331	32,92	3,53	20	140.00
400332	34,52	3,53	10	82.00
400333	34,52	3,53	20	140.00
400334	36,09	3,53	10	82.00
400335	36,09	3,53	20	140.00
400336	37,69	3,53	10	99.00
400337	37,69	3,53	20	170.00
400338	40,87	3,53	10	99.00
400339	40,87	3,53	20	170.00
400340	44,04	3,53	10	99.00
400341	44,04	3,53	20	170.00
400342	47,22	3,53	10	99.00
400343	47,22	3,53	20	170.00
400344	50,39	3,53	10	120.00
400345	50,39	3,53	20	202.00
400346	53,57	3,53	10	120.00
400347	53,57	3,53	20	202.00
400348	56,74	3,53	10	120.00
400349	56,74	3,53	20	202.00
400350	59,92	3,53	10	120.00
400351	59,92	3,53	20	202.00
400352	63,09	3,53	5	97.00
400353	63,09	3,53	10	165.00
400354	66,27	3,53	5	97.00
400355	66,27	3,53	10	165.00
400356	69,44	3,53	5	97.00
400357	69,44	3,53	10	165.00
400358	72,62	3,53	5	97.00
400359	72,62	3,53	10	165.00
400360	75,79	3,53	5	97.00
400361	75,79	3,53	10	165.00
400362	78,97	3,53	5	97.00
400363	78,97	3,53	10	165.00
400364	82,14	3,53	5	112.00
400365	82,14	3,53	10	193.00
400366	85,32	3,53	5	112.00
400367	85,32	3,53	10	193.00
400368	88,49	3,53	5	112.00
400369	88,49	3,53	10	193.00
400370	91,67	3,53	5	112.00
400371	91,67	3,53	10	193.00
400372	94,84	3,53	5	112.00
400373	94,84	3,53	10	193.00
400374	98,02	3,53	5	127.00
400375	98,02	3,53	10	221.00
400376	101,19	3,53	5	127.00
400377	101,19	3,53	10	221.00
400378	104,37	3,53	5	127.00
400379	104,37	3,53	10	221.00
400380	107,54	3,53	5	144.00
400381	107,54	3,53	10	251.00
400382	110,72	3,53	5	144.00
400383	110,72	3,53	10	251.00
400384	113,89	3,53	5	144.00
400385	113,89	3,53	10	251.00
400386	117,07	3,53	5	144.00
400387	117,07	3,53	10	251.00
400388	120,24	3,53	5	159.00
400389	120,24	3,53	10	274.00
400390	123,42	3,53	5	159.00
400391	123,42	3,53	10	274.00
400392	126,59	3,53	5	159.00
400393	126,59	3,53	10	274.00
400394	129,77	3,53	5	159.00
400395	129,77	3,53	10	274.00
400396	132,94	3,53	5	165.00
400397	132,94	3,53	10	281.00
400398	136,12	3,53	5	165.00
400399	136,12	3,53	10	281.00
400400	139,29	3,53	5	165.00
400401	139,29	3,53	10	281.00
400402	142,47	3,53	5	165.00
400403	142,47	3,53	10	281.00
400404	145,64	3,53	5	165.00
400405	145,64	3,53	10	281.00
400406	148,82	3,53	5	182.00
400407	148,82	3,53	10	315.00
400408	151,99	3,53	5	182.00
400409	151,99	3,53	10	315.00
400410	158,34	3,53	5	182.00
400411	158,34	3,53	10	315.00
400412	164,69	3,53	5	182.00
400413	164,69	3,53	10	315.00
400414	171,04	3,53	5	206.00
400415	171,04	3,53	10	345.00
400416	177,39	3,53	5	206.00
400417	177,39	3,53	10	345.00
400418	183,74	3,53	5	206.00
400419	183,74	3,53	10	345.00
400420	190,09	3,53	5	206.00
400421	190,09	3,53	10	345.00
400422	196,44	3,53	5	206.00
400423	196,44	3,53	10	345.00
400424	202,79	3,53	5	225.00
400425	202,79	3,53	10	375.00
400426	209,14	3,53	5	225.00
400427	209,14	3,53	10	375.00
400428	215,49	3,53	5	225.00
400429	215,49	3,53	10	375.00
400430	221,84	3,53	5	225.00
400431	221,84	3,53	10	375.00
400432	228,19	3,53	5	225.00
400433	228,19	3,53	10	375.00
400434	234,54	3,53	5	225.00
400435	234,54	3,53	10	375.00
400436	240,89	3,53	5	242.00
400437	240,89	3,53	10	396.00
400438	247,24	3,53	5	242.00
400439	247,24	3,53	10	396.00
400440	253,59	3,53	5	242.00
400441	253,59	3,53	10	396.00
400442	266,29	3,53	5	242.00
400443	266,29	3,53	10	396.00
400444	278,99	3,53	5	242.00
400445	278,99	3,53	10	396.00
400446	291,69	3,53	5	287.00
400447	291,69	3,53	10	469.00
400448	304,39	3,53	5	287.00
400449	304,39	3,53	10	469.00
400450	329,79	3,53	5	287.00
400451	329,79	3,53	10	469.00
400452	355,19	3,53	5	330.00
400453	355,19	3,53	10	527.00
400454	380,59	3,53	5	330.00
400455	380,59	3,53	10	527.00
400456	405,26	3,53	5	330.00
400457	405,26	3,53	10	527.00
400458	430,66	3,53	5	377.00
400459	430,66	3,53	10	604.00
400460	456,06	3,53	5	377.00
400461	456,06	3,53	10	604.00
400462	10,46	5,33	10	86.00
400463	10,46	5,33	20	142.00
400464	12,07	5,33	10	86.00
400465	12,07	5,33	20	142.00
400466	13,64	5,33	10	86.00
400467	13,64	5,33	20	142.00
400468	15,24	5,33	10	86.00
400469	15,24	5,33	20	142.00
400470	16,81	5,33	10	86.00
400471	16,81	5,33	20	142.00
400472	18,42	5,33	10	86.00
400473	18,42	5,33	20	142.00
400474	19,99	5,33	10	86.00
400475	19,99	5,33	20	142.00
400476	21,59	5,33	10	86.00
400477	21,59	5,33	20	142.00
400478	23,16	5,33	10	105.00
400479	23,16	5,33	20	180.00
400480	24,77	5,33	10	105.00
400481	24,77	5,33	20	180.00
400482	26,34	5,33	10	105.00
400483	26,34	5,33	20	180.00
400484	27,94	5,33	10	105.00
400485	27,94	5,33	20	180.00
400486	29,51	5,33	10	105.00
400487	29,51	5,33	20	180.00
400488	31,12	5,33	10	105.00
400489	31,12	5,33	20	180.00
400490	32,69	5,33	10	142.00
400491	32,69	5,33	20	236.00
400492	34,29	5,33	10	142.00
400493	34,29	5,33	20	236.00
400494	37,47	5,33	10	142.00
400495	37,47	5,33	20	236.00
400496	40,64	5,33	10	142.00
400497	40,64	5,33	20	236.00
400498	43,82	5,33	10	142.00
400499	43,82	5,33	20	236.00
400500	46,99	5,33	5	105.00
400501	46,99	5,33	10	187.00
400502	50,17	5,33	5	105.00
400503	50,17	5,33	10	187.00
400504	53,34	5,33	5	105.00
400505	53,34	5,33	10	187.00
400506	56,52	5,33	5	129.00
400507	56,52	5,33	10	220.00
400508	59,69	5,33	5	129.00
400509	59,69	5,33	10	220.00
400510	62,87	5,33	5	129.00
400511	62,87	5,33	10	220.00
400512	66,04	5,33	5	129.00
400513	66,04	5,33	10	220.00
400514	69,22	5,33	5	146.00
400515	69,22	5,33	10	253.00
400516	72,39	5,33	5	146.00
400517	72,39	5,33	10	253.00
400518	75,57	5,33	5	146.00
400519	75,57	5,33	10	253.00
400520	78,74	5,33	5	146.00
400521	78,74	5,33	10	253.00
400522	81,92	5,33	5	167.00
400523	81,92	5,33	10	289.00
400524	85,09	5,33	5	167.00
400525	85,09	5,33	10	289.00
400526	88,27	5,33	5	167.00
400527	88,27	5,33	10	289.00
400528	91,44	5,33	5	167.00
400529	91,44	5,33	10	289.00
400530	94,62	5,33	5	187.00
400531	94,62	5,33	10	324.00
400532	97,79	5,33	5	187.00
400533	97,79	5,33	10	324.00
400534	100,97	5,33	5	187.00
400535	100,97	5,33	10	324.00
400536	104,14	5,33	5	187.00
400537	104,14	5,33	10	324.00
400538	107,32	5,33	5	202.00
400539	107,32	5,33	10	349.00
400540	110,49	5,33	5	202.00
400541	110,49	5,33	10	349.00
400542	113,67	5,33	5	202.00
400543	113,67	5,33	10	349.00
400544	116,84	5,33	5	221.00
400545	116,84	5,33	10	384.00
400546	120,02	5,33	5	221.00
400547	120,02	5,33	10	384.00
400548	123,19	5,33	5	221.00
400549	123,19	5,33	10	384.00
400550	126,37	5,33	5	221.00
400551	126,37	5,33	10	384.00
400552	129,54	5,33	5	244.00
400553	129,54	5,33	10	422.00
400554	132,72	5,33	5	244.00
400555	132,72	5,33	10	422.00
400556	135,89	5,33	5	244.00
400557	135,89	5,33	10	422.00
400558	139,07	5,33	5	244.00
400559	139,07	5,33	10	422.00
400560	142,24	5,33	5	249.00
400561	142,24	5,33	10	424.00
400562	145,42	5,33	5	249.00
400563	145,42	5,33	10	424.00
400564	148,59	5,33	5	249.00
400565	148,59	5,33	10	424.00
400566	151,77	5,33	5	249.00
400567	151,77	5,33	10	424.00
400568	158,12	5,33	5	285.00
400569	158,12	5,33	10	488.00
400570	164,47	5,33	5	285.00
400571	164,47	5,33	10	488.00
400572	170,82	5,33	5	285.00
400573	170,82	5,33	10	488.00
400574	177,17	5,33	5	285.00
400575	177,17	5,33	10	488.00
400576	183,52	5,33	5	300.00
400577	183,52	5,33	10	508.00
400578	189,87	5,33	5	300.00
400579	189,87	5,33	10	508.00
400580	196,22	5,33	5	300.00
400581	196,22	5,33	10	508.00
400582	202,57	5,33	5	300.00
400583	202,57	5,33	10	508.00
400584	208,92	5,33	5	330.00
400585	208,92	5,33	10	559.00
400586	215,27	5,33	5	330.00
400587	215,27	5,33	10	559.00
400588	221,62	5,33	5	330.00
400589	221,62	5,33	10	559.00
400590	227,97	5,33	5	330.00
400591	227,97	5,33	10	559.00
400592	234,32	5,33	5	362.00
400593	234,32	5,33	10	608.00
400594	240,67	5,33	5	362.00
400595	240,67	5,33	10	608.00
400596	247,02	5,33	5	362.00
400597	247,02	5,33	10	608.00
400598	253,37	5,33	5	362.00
400599	253,37	5,33	10	608.00
400600	266,07	5,33	5	414.00
400601	266,07	5,33	10	700.00
400602	278,77	5,33	5	414.00
400603	278,77	5,33	10	700.00
400604	291,47	5,33	5	414.00
400605	291,47	5,33	10	700.00
400606	304,17	5,33	5	458.00
400607	304,17	5,33	10	767.00
400608	329,57	5,33	5	458.00
400609	329,57	5,33	10	767.00
400610	354,97	5,33	5	458.00
400611	354,97	5,33	10	767.00
400612	380,37	5,33	5	512.00
400613	380,37	5,33	10	837.00
400614	405,26	5,33	5	512.00
400615	405,26	5,33	10	837.00
400616	430,66	5,33	5	512.00
400617	430,66	5,33	10	837.00
400618	456,06	5,33	5	574.00
400619	456,06	5,33	10	940.00
400620	481,41	5,33	5	574.00
400621	481,41	5,33	10	940.00
400622	506,81	5,33	5	574.00
400623	506,81	5,33	10	940.00
400624	532,21	5,33	5	690.00
400625	532,21	5,33	10	1,130.00
400626	557,61	5,33	5	690.00
400627	557,61	5,33	10	1,130.00
400628	582,68	5,33	5	690.00
400629	582,68	5,33	10	1,130.00
400630	608,08	5,33	5	756.00
400631	608,08	5,33	10	1,237.00
400632	633,48	5,33	5	756.00
400633	633,48	5,33	10	1,237.00
400634	658,88	5,33	5	756.00
400635	658,88	5,33	10	1,237.00
400636	113,67	6,99	5	244.00
400637	113,67	6,99	10	424.00
400638	116,84	6,99	5	244.00
400639	116,84	6,99	10	424.00
400640	120,02	6,99	5	244.00
400641	120,02	6,99	10	424.00
400642	123,19	6,99	5	244.00
400643	123,19	6,99	10	424.00
400644	126,37	6,99	5	257.00
400645	126,37	6,99	10	441.00
400646	129,54	6,99	5	257.00
400647	129,54	6,99	10	441.00
400648	132,72	6,99	5	257.00
400649	132,72	6,99	10	441.00
400650	135,89	6,99	5	257.00
400651	135,89	6,99	10	441.00
400652	139,07	6,99	5	257.00
400653	139,07	6,99	10	441.00
400654	142,24	6,99	5	283.00
400655	142,24	6,99	10	484.00
400656	145,42	6,99	5	283.00
400657	145,42	6,99	10	484.00
400658	148,59	6,99	5	283.00
400659	148,59	6,99	10	484.00
400660	151,77	6,99	5	283.00
400661	151,77	6,99	10	484.00
400662	158,12	6,99	5	304.00
400663	158,12	6,99	10	516.00
400664	164,47	6,99	5	304.00
400665	164,47	6,99	10	516.00
400666	170,82	6,99	5	304.00
400667	170,82	6,99	10	516.00
400668	177,17	6,99	5	304.00
400669	177,17	6,99	10	516.00
400670	183,52	6,99	5	336.00
400671	183,52	6,99	10	572.00
400672	189,87	6,99	5	336.00
400673	189,87	6,99	10	572.00
400674	196,22	6,99	5	336.00
400675	196,22	6,99	10	572.00
400676	202,57	6,99	5	384.00
400677	202,57	6,99	10	640.00
400678	215,27	6,99	5	384.00
400679	215,27	6,99	10	640.00
400680	227,97	6,99	5	384.00
400681	227,97	6,99	10	640.00
400682	240,67	6,99	5	384.00
400683	240,67	6,99	10	640.00
400684	253,37	6,99	5	443.00
400685	253,37	6,99	10	726.00
400686	266,07	6,99	5	443.00
400687	266,07	6,99	10	726.00
400688	278,77	6,99	5	443.00
400689	278,77	6,99	10	726.00
400690	291,47	6,99	5	443.00
400691	291,47	6,99	10	726.00
400692	304,17	6,99	5	443.00
400693	304,17	6,99	10	726.00
400694	316,87	6,99	5	518.00
400695	316,87	6,99	10	848.00
400696	329,57	6,99	5	518.00
400697	329,57	6,99	10	848.00
400698	342,27	6,99	5	518.00
400699	342,27	6,99	10	848.00
400700	354,97	6,99	5	518.00
400701	354,97	6,99	10	848.00
400702	367,67	6,99	5	585.00
400703	367,67	6,99	10	957.00
400704	380,37	6,99	5	585.00
400705	380,37	6,99	10	957.00
400706	393,07	6,99	5	585.00
400707	393,07	6,99	10	957.00
400708	405,26	6,99	5	585.00
400709	405,26	6,99	10	957.00
400710	417,96	6,99	5	651.00
400711	417,96	6,99	10	1,068.00
400712	430,66	6,99	5	651.00
400713	430,66	6,99	10	1,068.00
400714	443,36	6,99	5	651.00
400715	443,36	6,99	10	1,068.00
400716	456,06	6,99	5	651.00
400717	456,06	6,99	10	1,068.00
400718	468,76	6,99	5	724.00
400719	468,76	6,99	10	1,184.00
400720	481,46	6,99	5	724.00
400721	481,46	6,99	10	1,184.00
400722	494,16	6,99	5	724.00
400723	494,16	6,99	10	1,184.00
400724	506,86	6,99	5	724.00
400725	506,86	6,99	10	1,184.00
400726	532,26	6,99	5	756.00
400727	532,26	6,99	10	1,207.00
400728	557,66	6,99	5	756.00
400729	557,66	6,99	10	1,207.00
400730	582,68	6,99	5	756.00
400731	582,68	6,99	10	1,207.00
400732	608,08	6,99	5	851.00
400733	608,08	6,99	10	1,362.00
400734	633,48	6,99	5	851.00
400735	633,48	6,99	10	1,362.00
400736	658,88	6,99	5	851.00
400737	658,88	6,99	10	1,362.00
