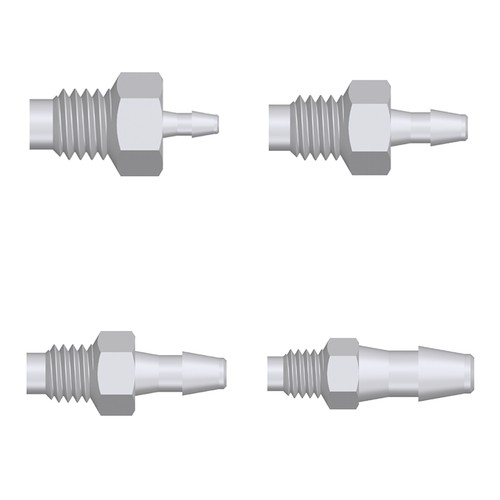

Mini Screw-in Connector with male thread M6x1
Product specification
Tubing connection on one side, M6x1-external thread on the other side, for flexible tubing
General Information
PA 6.6 (polyamide 6.6, nylon)
Colour: white
Temperature range: -40 to +115 °C
Max. operating pressure: 3 bar at +20 °C
Yellowing and reduction of strength depending on temperature and interaction time
Regulatory compliance to RoHS, BPA, DEHP
Good sterilization with autoclave, ethylene oxide and gamma radiation (may discolour to brownish hue)
PP (polypropylene)
Colour: natural
Temperature range: -5 to +120 °C
Max. operating pressure: 3 bar at +20 °C
Regulatory compliance to USP Class VI, FDA 21 CFR 177.1520, RoHS, BPA, DEHP, ADI-free
Good sterilization with ethylene oxide and gamma radiation (bis 6 Mrads; may discolor the material with repeated sterilization), autoclave limited to short term +121 °C for 20 min.
PVDF (Polyvinylidene fluoride)
Colour: natural
Temperature range: -40 to +140 °C
Max. operating pressure: 3 bar at +20 °C
Regulatory compliance to USP Class VI, FDA 21 CFR 177.2510, RoHS, BPA-free, DEHP-free, ADI-free
PVDF is non-toxic and can be used in the food industry without hesitation. According to FDA (USA), the material is physiologically safe. It is as unsuitable as glass for propagation and growing of microorganisms.
Excellent sterilization with autoclave, ethylene oxide and gamma radiation (will discolour to brownish hue)
Item | Image |
Tubing inside Ø mm
|
Außengewinde | Werkstoff | Farbe |
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|

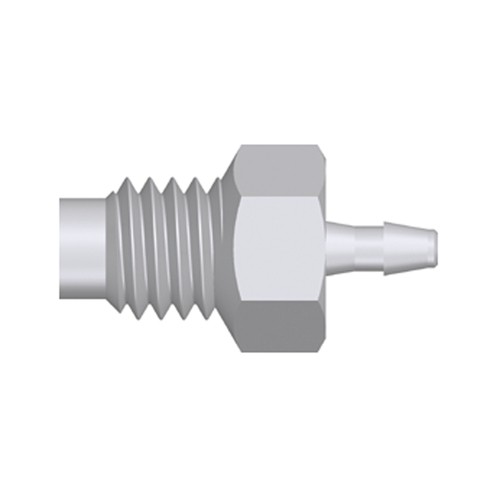

29029 |
Mini Screw-in Connector with male thread M6x1
Mini Screw-in Connector with male thread M6x1
|
1,6 | M6 x 1 | PP | natur | 10 | 42.00 | |

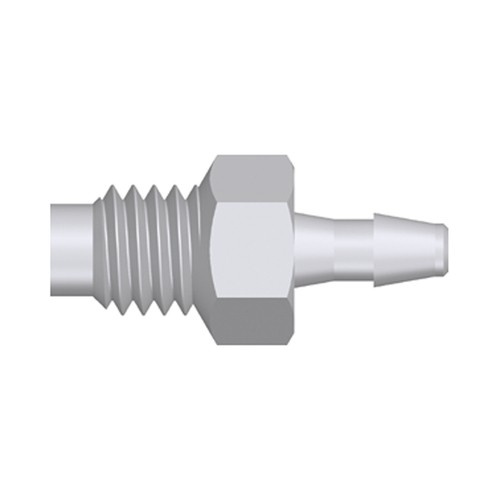

29033 |
Mini Screw-in Connector with male thread M6x1
Mini Screw-in Connector with male thread M6x1
|
2,4 | M6 x 1 | PP | natur | 10 | 42.00 | |
29034 |
Mini Screw-in Connector with male thread M6x1
Mini Screw-in Connector with male thread M6x1
|
2,4 | M6 x 1 | PVDF | natur | 5 | 50.00 | |
29035 |
Mini Screw-in Connector with male thread M6x1
Mini Screw-in Connector with male thread M6x1
|
3,2 | M6 x 1 | PA 6.6 | weiß | 15 | 52.00 | |
29036 |
Mini Screw-in Connector with male thread M6x1
Mini Screw-in Connector with male thread M6x1
|
3,2 | M6 x 1 | PA 6.6 | schwarz | 15 | 52.00 | |

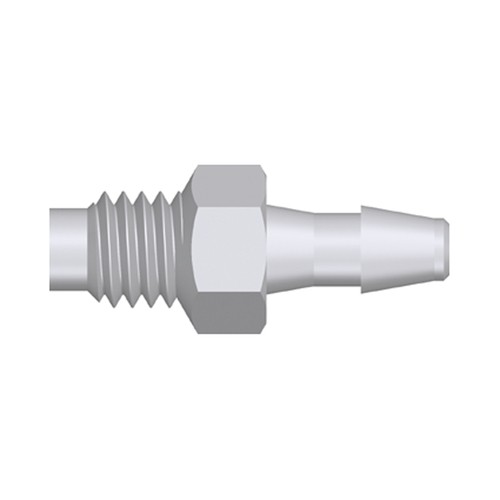

29037 |
Mini Screw-in Connector with male thread M6x1
Mini Screw-in Connector with male thread M6x1
|
3,2 | M6 x 1 | PP | natur | 10 | 42.00 | |

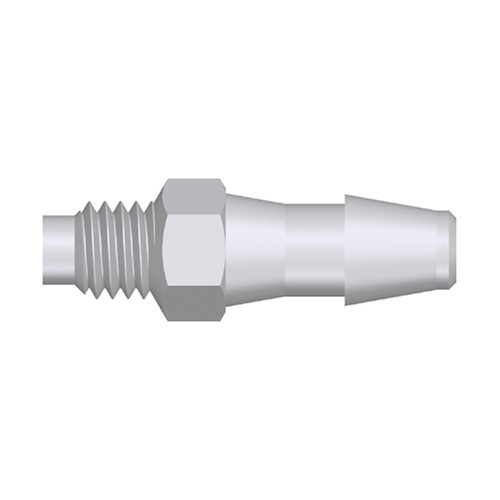

29044 |
Mini Screw-in Connector with male thread M6x1
Mini Screw-in Connector with male thread M6x1
|
4,8 | M6 x 1 | PA 6.6 | schwarz | 15 | 52.00 | |
29045 |
Mini Screw-in Connector with male thread M6x1
Mini Screw-in Connector with male thread M6x1
|
4,8 | M6 x 1 | PP | natur | 10 | 42.00 |
