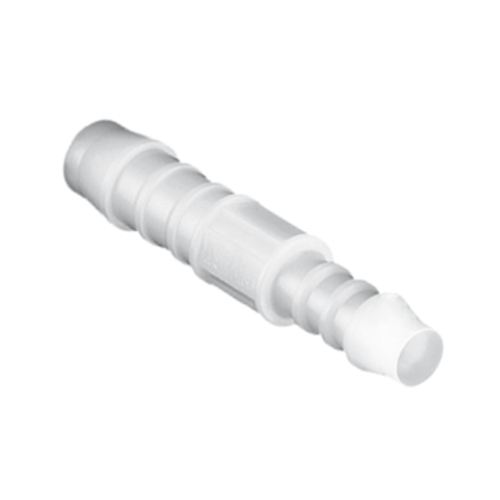

Straight Barb Union (reducing) made of POM

Preview: Straight Barb Union (reducing) made of POM Preview: Straight Barb Union (reducing) made of POM
Straight Barb Union (reducing) made of POM
Straight Barb Union (reducing) made of POM

Description General Information
Description
more
Close menu
No additional information available.
General Information
General Information Resistance to alcohols, aldehydes, petrol, ethers, esters, glycols, motor... more
Close menu

General Information

Resistance to alcohols, aldehydes, petrol, ethers, esters, glycols, motor oils, neutral salt solutions and water

Material: POM (acetal resin, polyoxymethylene)

Colour: white

Temperature range: -40 to +80 °C, for a short time (1 h) +110 °C

Max. operating pressure: 10 bar at +20 °C

Flammability rating: UL 94 HB

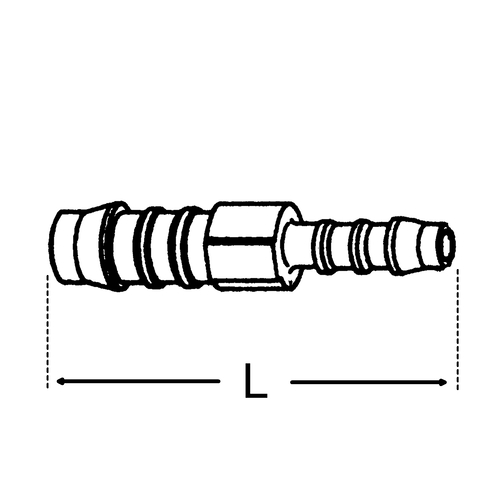

Item Image Tubing inside Ø (A)
mm
 Schlauch Innen-Ø (B)
mm
 NW
mm
 L
mm
 Einheit
Stück
 Price
Euro* 		Buy
94189
4 3 2,5 30 10 19.00
94180
6 4 2,7 43 10 23.00
94181
8 4 2,7 48 10 32.00
94182
8 6 4 54 10 37.00
94183
9 4 3 48 10 32.00
94184
9 6 5,6 54 10 37.00
26386
10 6 4 58 10 50.00
26387
10 8 5,6 61 10 50.00
26388
12 8 5,6 63 10 50.00
94909
12 10 7 64 10 50.00
94185
13 9 6 63 10 50.00
94186
13 10 7 64 10 50.00
