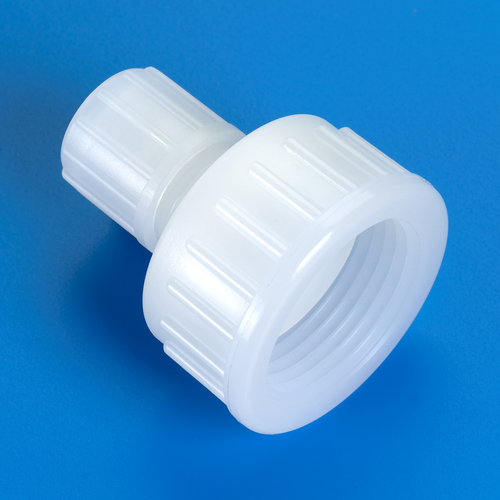

Tube Connector made of PP, PVDF or PFA - loose cap nut DIN 8063

Tube Connector made of PP, PVDF or PFA - loose cap nut DIN 8063

Product specification Tubing connection on one side, loose cap nut on the other side more

Close menu

Product specification

Tubing connection on one side, loose cap nut on the other side

General Information The connectors of Series EMP-E3 can be directly fastened to existing... more

Close menu

General Information

The connectors of Series EMP-E3 can be directly fastened to existing fittings with DIN 8063 male threads and are immediately ready for use with both flexible and rigid tubes. The special design of our connectors integrates many features in a single product that would otherwise have to be tediously welded together from various components. The inlay component -manufactured from a single piece- contains an integrated thread connector. This helps to ensure that the connector is leak-proof and thus safe to use. To allow for a range of threaded connectors, the loose cap nut is available in typical sizes from G 3/4" to G 1 1/2". These can be combined with various tube and pipe connectors as well as with G or NPT external thread.

PP (Polypropylene)

Extremely good impact toughness and notch impact strength

Higher hardness and stiffness as well as better resilience than PE

Thermoforming possible

Very good dielectrical properties

Good resistance to alcohols, ketones, conc. acids and alkalis

Not stable to aromatic hydrocarbons, fats and oils, halogenes

Autoclavable

Resistant to hydrolysis

Physiologically safe

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: grey

Density: 0.90 g/cm³

Temperature range: +5 to +90 °C

Shore hardness D: 72°

Max. operating pressure: 6 bar at +20 °C

Water absorption: <0.05 %

Tensile strength: 25 - 40 N/mm²

Elongation at break: 800 %

Surface resistance: >10¹³ Ohm

Melt flow index MFR: 0.3 g/10 min.

PVDF (Polyvinylidene fluoride)

High-quality technical plastic for chemical apparatus and machine building, especially in the petrochemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology.

High impact toughness even at low temperatures

Good breakdown strength

Low dielectric loss factor

Highest mechanical stability and stiffness

Meeting highest purity requirements

Comply with the guidelines from FDA and USP class VI, additionally PVDF has the KTW approval. Up to +150 °C it is non-toxic and since it has a similar property to glass it is a no-culture medium for microorganisms.

Can be treated by autoclave (absolute sterile) and sterilized with gamma-rays without losing its mechanical qualities

Outstanding resistance to UV, weather and aging

Flame-resistant

High thermal stability

Resistant to alcohols, fats and oils, halogenes, alkalis, acids

Not stable to aromatic hydrocarbons, ketones, amines, pyridine, dimethylformamide, hot alkalis, fuming sulfuric acid

Colour: nature, slightly translucent

Density: 1.75 g/cm³

Temperature range: -40 to +140 °C

Shore hardness D: 79°

Max. operating pressure: 6 bar at +20 °C

Water absorption: <0.04 %

Tensile strength: 38 - 50 N/mm²

Surface resistance: >10¹³ Ohm

Melt flow index MFR: 6 g/10 min.

PFA (Perfluoroalkoxy)

High-quality technical plastic for chemical apparatus and machine construction as well as electrical engineering

Chemical, thermal and dielectrical properties practically such as PTFE, but suitable for thermoplastic processing (welding, die casting, deep drawing). Lower medium diffusion, better transparency, larger hardness and better dimensional stability (lower tendency to cold flow) compared to PTFE.

Highest temperature resistance of all meltable fluorinated plastics

Very high dimensional stability in heat

Very high resistance to media

Very good pressure resistance

Low friction coefficient

Can be treated by autoclave (absolute sterile)

Comply with the guidelines from FDA and USP class VI.

Excellent resistance to weather

Flame-resistant

Colour: milky, translucent

Density: 2.10 g/cm³

Temperature range: -200 to +200 °C (highest dimensional stability in heat)

Shore hardness D: 60° to 65°

Max. operating pressure: 6 bar at +20 °C

Coefficient of sliding friction: 0.2 - 0.3 (dynamic against steel, dry)

Tensile strength: 27 to 32 N/mm² at +23 °C

Water absorption: <0.03 %

Dielectric constant: 2,1

Surface resistance: >10¹⁷ Ohm

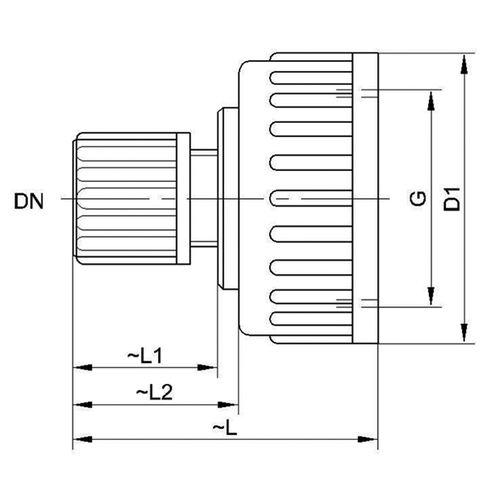

Item	Tubing inside Ø mm	Schlauch Außen-Ø mm	Innengewinde	D1 mm	L mm	L2 mm	Werkstoff	Einheit Stück	Price Euro*
341503	4	6	G 3/4"	38	43	21	PP	3	81.00
341504	6	8	G 3/4"	38	47	25	PP	3	87.00
341505	8	10	G 3/4"	38	50	28	PP	3	87.00
341506	10	12	G 3/4"	38	54	32	PP	2	75.00
341507	12	14	G 3/4"	38	59	37	PP	2	93.00
341508	6	8	G 1"	46	49	25	PP	3	94.00
341509	8	10	G 1"	46	52	28	PP	3	97.00
341510	10	12	G 1"	46	56	32	PP	2	82.00
341511	12	14	G 1"	46	61	37	PP	2	97.00
341512	14	16	G 1"	46	63	39	PP	2	103.00
341513	16	18	G 1"	46	66	42	PP	1	75.00
341514	10	12	G 1 1/4"	56	56	32	PP	2	83.00
341515	12	14	G 1 1/4"	56	61	37	PP	2	99.00
341516	14	16	G 1 1/4"	56	63	39	PP	2	105.00
341517	16	18	G 1 1/4"	56	66	42	PP	1	78.00
341518	18	20	G 1 1/4"	56	68	44	PP	1	84.00
341519	16	18	G 1 1/2"	66	66	42	PP	1	84.00
341520	18	20	G 1 1/2"	66	68	44	PP	1	86.00
341521	4	6	G 3/4"	38	43	21	PVDF	3	242.00
341522	6	8	G 3/4"	38	47	25	PVDF	3	272.00
341523	8	10	G 3/4"	38	50	28	PVDF	3	272.00
341524	10	12	G 3/4"	38	54	32	PVDF	1	122.00
341525	12	14	G 3/4"	38	59	37	PVDF	1	138.00
341526	6	8	G 1"	46	49	25	PVDF	1	98.00
341527	8	10	G 1"	46	52	28	PVDF	1	98.00
341528	10	12	G 1"	46	56	32	PVDF	1	122.00
341529	12	14	G 1"	46	61	37	PVDF	1	140.00
341530	14	16	G 1"	46	63	39	PVDF	1	154.00
341531	16	18	G 1"	46	66	42	PVDF	1	214.00
341532	10	12	G 1 1/4"	56	56	32	PVDF	1	124.00
341533	12	14	G 1 1/4"	56	61	37	PVDF	1	142.00
341534	14	16	G 1 1/4"	56	63	39	PVDF	1	158.00
341535	16	18	G 1 1/4"	56	66	42	PVDF	1	218.00
341536	18	20	G 1 1/4"	56	68	44	PVDF	1	238.00
341537	16	18	G 1 1/2"	66	66	42	PVDF	1	238.00
341538	18	20	G 1 1/2"	66	68	44	PVDF	1	240.00
341539	4	6	G 3/4"	38	43	21	PFA	1	95.00
341540	6	8	G 3/4"	38	47	25	PFA	1	130.00
341541	8	10	G 3/4"	38	50	28	PFA	1	130.00
341542	10	12	G 3/4"	38	54	32	PFA	1	144.00
341543	12	14	G 3/4"	46	59	37	PFA	1	178.00
341544	6	8	G 1"	46	49	25	PFA	1	138.00
341545	8	10	G 1"	46	52	28	PFA	1	135.00
341546	10	12	G 1"	46	56	32	PFA	1	146.00
341547	12	14	G 1"	46	61	37	PFA	1	182.00
341548	14	16	G 1"	46	63	39	PFA	1	196.00
341549	16	18	G 1"	46	66	42	PFA	1	276.00
341550	10	12	G 1 1/4"	56	56	32	PFA	1	148.00
341551	12	14	G 1 1/4"	56	61	37	PFA	1	184.00
341552	14	16	G 1 1/4"	56	63	39	PFA	1	198.00
341553	16	18	G 1 1/4"	56	66	42	PFA	1	288.00
341554	18	20	G 1 1/4"	56	68	44	PFA	1	328.00
341555	16	18	G 1 1/2"	66	66	42	PFA	1	328.00
341556	18	20	G 1 1/2"	66	68	44	PFA	1	334.00
