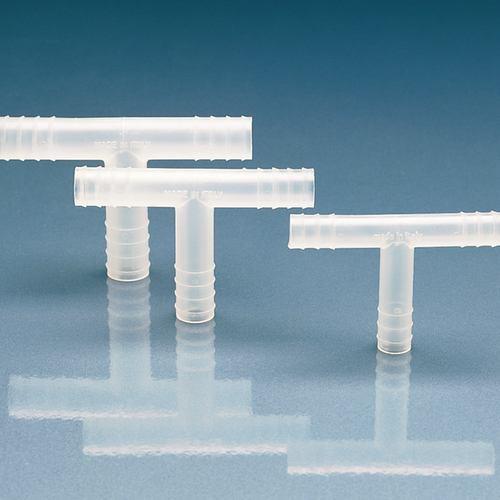

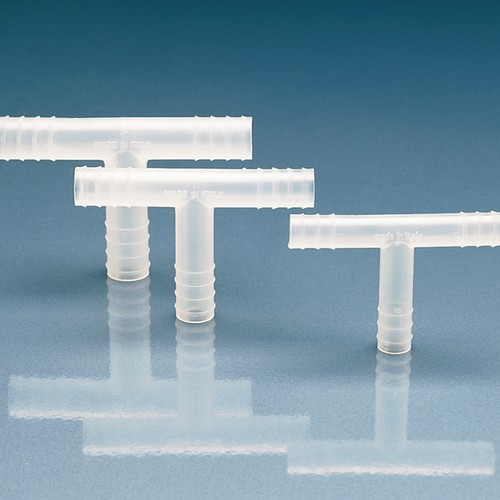

T-Shaped Barb Union made of PP or PVDF
| Item |
Tubing inside Ø mm
|
NW mm
|
Werkstoff |
max. Temp. °C
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|
| 29389 | 3 - 5 | 2 | PP | 135 | 15 | 52.00 | |
| 29390 | 3 - 5 | 2 | PVDF | 160 | 15 | 65.00 | |
| 60797 | 4 - 5 | 3,7 | PP | 121 | 10 | 24.00 | |
| 29391 | 5 - 7 | 4 | PP | 135 | 15 | 61.00 | |
| 29392 | 5 - 7 | 4 | PVDF | 160 | 15 | 68.00 | |
| 60798 | 6 - 7 | 4,4 | PP | 121 | 10 | 24.00 | |
| 29393 | 7 - 9 | 6 | PP | 135 | 10 | 49.00 | |
| 29394 | 7 - 9 | 6 | PVDF | 160 | 10 | 66.00 | |
| 60799 | 8 - 9 | 6,3 | PP | 121 | 10 | 26.00 | |
| 29395 | 9 - 11 | 8 | PP | 135 | 10 | 55.00 | |
| 29396 | 9 - 11 | 8 | PVDF | 160 | 10 | 67.00 | |
| 60800 | 10 - 11 | 8,2 | PP | 121 | 10 | 35.00 | |
| 29397 | 11 - 13 | 10 | PP | 135 | 10 | 58.00 | |
| 29398 | 11 - 13 | 10 | PVDF | 160 | 10 | 69.00 | |
| 29399 | 13 - 15 | 12 | PP | 135 | 10 | 63.00 | |
| 29400 | 13 - 15 | 12 | PVDF | 160 | 10 | 75.00 | |
| 60802 | 14 - 15 | 12,1 | PP | 121 | 5 | 28.00 | |
