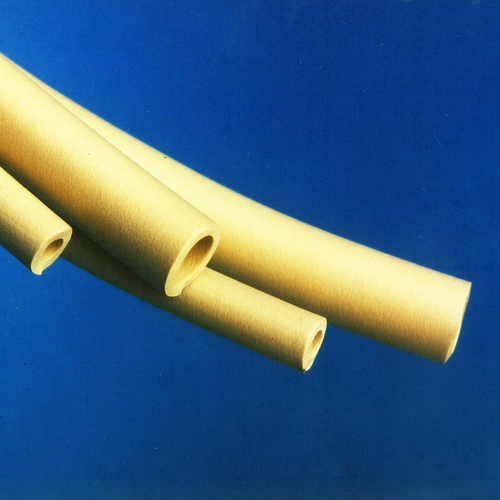

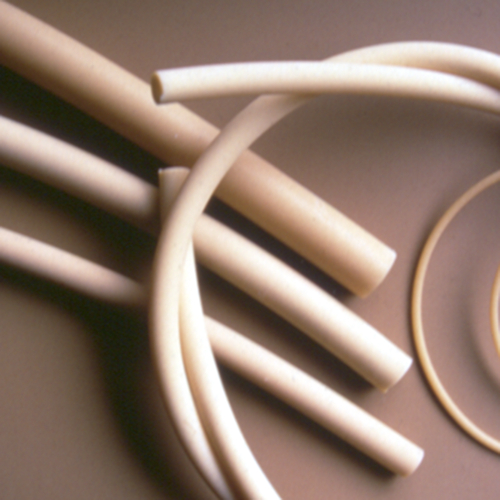

EPDM/PP Pharmaceutical Tubing

Application area Conveying of sensible and highly purified fluids and of gases High... more

Application area

Conveying of sensible and highly purified fluids and of gases

High performance pump tubing for peristaltic

Product specification

Flexible and elastic high-tech tubing of highest resistance to bending and abrasion, chemically resistant, free from extractable constituents, complying to the USP Class IV.

Absolutely biocompatible, neither cytotoxic nor hemolytical, approved for direct contact with food and for use in equipments for food production according to the FDA and NSF guidelines.

Extremely low permeability to gas, not permeable to UV and daylight, repeatedly autoclavable, and chemically sterilizable

Heat-sealing and bonding properties, up to 30 times longer service lives than comparable silicone products

Plasticizer-free

Technical specification

Material: EPDM/PP (ethylene-propylene-diene/polypropylene, thermoplastic elastomer);

compound of EPDM and PP, as well as stabilizing additives

Colour: natural-yellow

Shore hardness A: 68°

Temperature range: -40 to +135 °C

Density: 0.92 g/cm3

Embrittlement temperature: -70 °C

Tensile strength: 2.4 MPa (ASTM D412)

Tensile strength at break: 5.9 MPa (ASTM D412)

Elongation at break: 480 %

Permeability: extremely low

Sterilization: autoclavable (+136 °C); gamma-rays (up to 2.5 mrad)

Regulations: FDA 21 CFR §177.2600, EU 10/2011, EG 1935/2004, EU and CHINA RoHS. USP Class VI (on request)

No additional information available.
Item Image Inside Ø
mm
Außen-Ø
mm
Wandstärke
mm
Einheit
m
Price
Euro*
Buy
14806
0,5 3,7 1,6 3 71.00
84627
0,5 3,7 1,6 7,5 147.00
14807
0,8 4 1,6 3 85.00
84628
0,8 4 1,6 7,5 175.00
14808
1,6 4,8 1,6 3 103.00
84629
1,6 4,8 1,6 7,5 216.00
14809
1,6 6,4 2,4 3 118.00
14810
1,6 6,4 2,4 7,5 234.00
84630
3,2 6,4 1,6 3 109.00
84631
3,2 6,4 1,6 7,5 224.00
14811
3,2 7,9 2,4 3 121.00
14812
3,2 7,9 2,4 7,5 242.00
14839
3,2 9,5 3,2 3 136.00
14840
3,2 9,5 3,2 7,5 273.00
84632
4,8 7,9 1,6 3 110.00
84633
4,8 7,9 1,6 7,5 226.00
14813
4,8 9,5 2,4 3 125.00
14814
4,8 9,5 2,4 7,5 250.00
84634
6,4 9,5 1,6 3 133.00
84635
6,4 9,5 1,6 7,5 275.00
14815
6,4 11,1 2,4 3 150.00
14816
6,4 11,1 2,4 7,5 300.00
84636
6,4 12,7 3,2 3 248.00
84637
6,4 12,7 3,2 7,5 494.00
84638
7,9 11,1 1,6 3 139.00
84639
7,9 11,1 1,6 7,5 287.00
14817
7,9 12,7 2,4 3 158.00
14818
7,9 12,7 2,4 7,5 315.00
14819
7,9 15,9 4 1 156.00
14820
7,9 15,9 4 3 388.00
14821
9,5 14,3 2,4 1 96.00
14822
9,5 14,3 2,4 3 234.00
84640
9,5 15,9 3,2 1 112.00
84641
9,5 15,9 3,2 3 279.00
14823
9,5 19 4,8 1 156.00
14824
9,5 19 4,8 3 388.00
14827
12 20 4 1 205.00
14828
12 20 4 3 510.00
84642
12,7 19 3,2 1 130.00
84643
12,7 19 3,2 3 323.00
14825
12,7 22,2 4,8 1 187.00
14826
12,7 22,2 4,8 3 465.00
84644
15,9 22,2 3,2 1 145.00
84645
15,9 22,2 3,2 3 364.00
14831
15,9 25,4 4,8 1 170.00
14832
15,9 25,4 4,8 3 405.00
14829
16 24 4 1 175.00
14830
16 24 4 3 419.00
84646
19 25,4 3,2 1 170.00
84647
19 25,4 3,2 3 405.00
14833
19 28,6 4,8 1 205.00
14834
19 28,6 4,8 3 491.00
14835
25,4 31,8 3,2 1 201.00
14836
25,4 31,8 3,2 3 467.00
14837
25,4 34,1 4,8 1 209.00
14838
25,4 34,1 4,8 3 598.00
