Application area
Dairy industry, mineral well production, beer filling, soft drink production, dairies, wine filling
Product specification
Resistant to animal and vegetable oils and fats.
Smooth inner surface ensures reliable empting of residual charge and sure cleaning at change of charge.
Liner is physiologically absolutely safe, it does not contain any extractable constituents.
Odourless and tasteless.
Steam strippable against bacteria up to max. +120 °C for a short time or washable with hot water and ordinary household cleaners.
High abrasion resistance.
Resistant to ozone and UV-radiation.
Technical specification

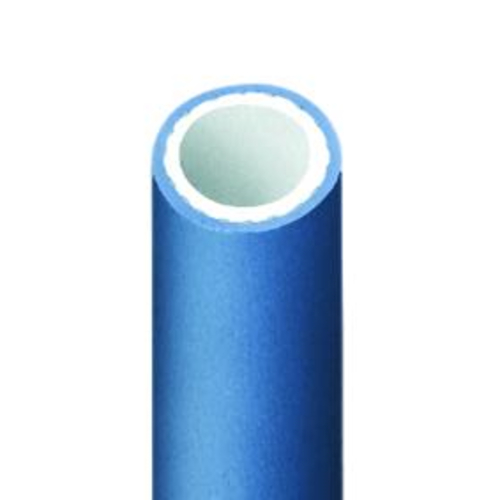

Material: TPE (thermoplastic elastomer)
Colour:
Liner: white, smooth
Jacket: blue, smooth
Temperature range: -15 to +95 °C, for a short period +120 °C
Max. operating pressure: 20 bar at +20 °C
Bursting pressure: 60 bar at +20 °C
Regulations: EG 10/2011
Tubing imprint: REG 10/2011 - SIM. A-B-C-D1-D2
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 340028 |
|
10 | 17 | 20 | 3 | 126.00 | |
| 340029 |
|
10 | 17 | 20 | 5 | 183.00 | |
| 340030 |
|
13 | 20 | 20 | 3 | 180.00 | |
| 340031 |
|
13 | 20 | 20 | 5 | 268.00 | |
| 340032 |
|
16 | 24 | 20 | 3 | 192.00 | |
| 340033 |
|
16 | 24 | 20 | 5 | 285.00 | |
| 340034 |
|
19 | 27 | 20 | 3 | 224.00 | |
| 340035 |
|
19 | 27 | 20 | 5 | 336.00 | |
| 340036 |
|
25 | 34 | 20 | 1 | 148.00 | |
| 340037 |
|
25 | 34 | 20 | 3 | 380.00 |
[1] at +20 °C
