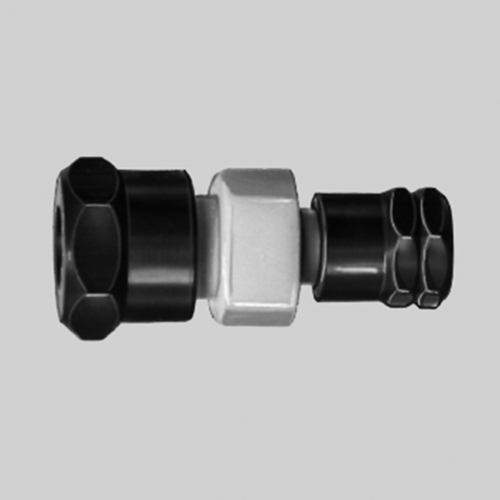

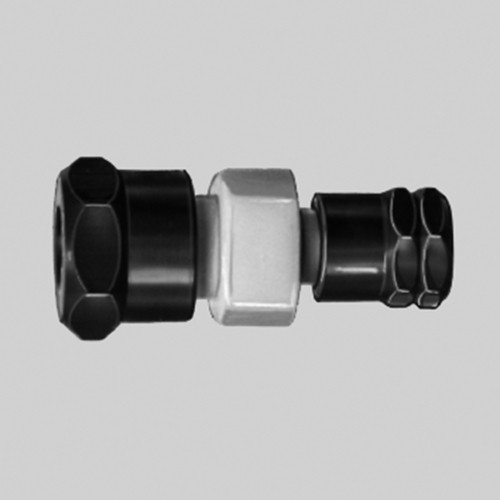

Straight Connector (reducing) made of PTFE

Straight Connector (reducing) made of PTFE

Product specification Straight connector for tubings / pipes of different size made of rigid... more

Close menu

Product specification

Straight connector for tubings / pipes of different size made of rigid plastics or metal.

General Information MULTIFIT ® MULTIFIT ® -couplings fix tubing / pipes by means... more

Close menu

General Information MULTIFIT^®

MULTIFIT^®-couplings fix tubing / pipes by means of a compressed FPM O-ring. The higher the internal pressure is, the tighter is the joint. MULTIFIT^®-connections are closed and opened within seconds.

Size A:

For PTFE tubing with outside Ø 0.6 to 1.0 mm (1/32”).

Size C:

For tubing used in many chromatography systems, with outside Ø 1.3 to 1.6 mm (1/16"). The cap nuts of size C and D have the same thread size. Therefore, the total versatile assortment of size D RCT^®-couplings, cocks, and columns can be coupled to the 1/16" tubes after changing the cap nut and the sealing ring.

Size D:

For 1/8" tubes of the THOMACHROM^®-chromatography system available in various materials and with inside diameters of 0.25 to 2.0 mm. Suitable for outside Ø 2.4 to 3.2 mm. The nuts of size D are marked with a notch.

Size E:

For 1/4" tubes and glass pipes of chromatography columns, suitable for outside Ø of 5.7 to 6.4 mm.

The series MULTIFIT^® are available as standard type with PVC-U nuts for aqueous and non-aggressive solvents, and as SR-type with nuts made of PCTFE for temperatures up to +120 °C. O-rings made of FFKM are available for particularly aggressive liquids such as pyridine, ketones, and esters (to request separately).

Material:

Body: PTFE (Polytetrafluorethylen)

Cap nuts: PVC-U or PCTFE

O-ring: FPM (Fluorkautschuk)

Max. operating pressure: 3 bar at +20 °C

Item	Tubing outside Ø (A) mm	Schlauch Außen-Ø (B) mm	Größe	Werkstoff Muttern	Einheit Stück	Price Euro*
93020146	0,6 - 1	2,4 - 3,2	A / D	PVC-U	1	68.00
93020147	0,6 - 1	5,7 - 6,4	A / E	PVC-U	1	68.00
93020156	1,3 - 1,6	2,4 - 3,2	C / D	PVC-U	1	68.00
93020157	1,3 - 1,6	5,7 - 6,4	C / E	PVC-U	1	68.00
93020167	2,4 - 3,2	5,7 - 6,4	D / E	PVC-U	1	68.00
930201469	0,6 - 1	2,4 - 3,2	A / D	PCTFE	1	92.00
930201479	0,6 - 1	5,7 - 6,4	A / E	PCTFE	1	92.00
930201569	1,3 - 1,6	2,4 - 3,2	C / D	PCTFE	1	92.00
930201579	1,3 - 1,6	5,7 - 6,4	C / E	PCTFE	1	92.00
930201679	2,4 - 3,2	5,7 - 6,4	D / E	PCTFE	1	92.00
