Reducing Nipple made of PP, PVDF or PFA

Product specification Straight, on one side external thread, other side internal thread more

Product specification

Straight, on one side external thread, other side internal thread

General Information Material: PP , grey (polypropylene) Temperature range: +5 to... more

General Information

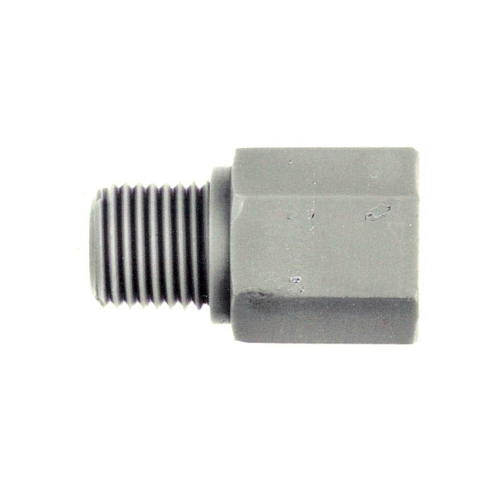

Material: PP, grey (polypropylene)

Temperature range: +5 to +90 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

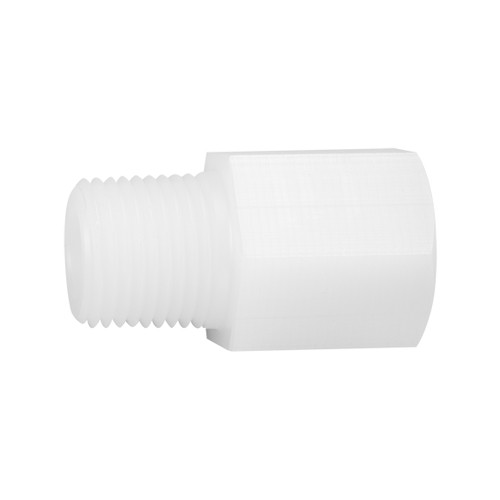

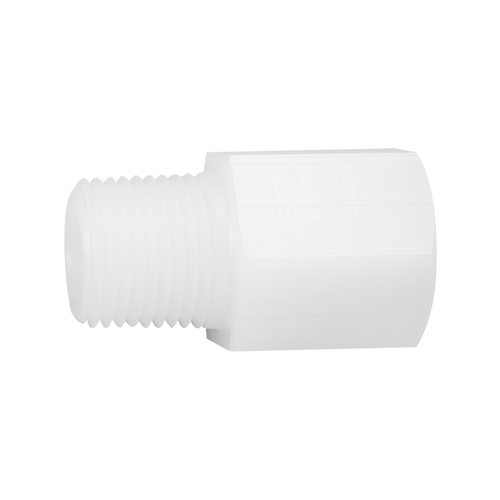

Material: PVDF, white (polyvinylidene fluoride)

Temperature range: -40 to +140 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Material: PFA, white (perfluoroalkoxy)

Temperature range: -150 to +180 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

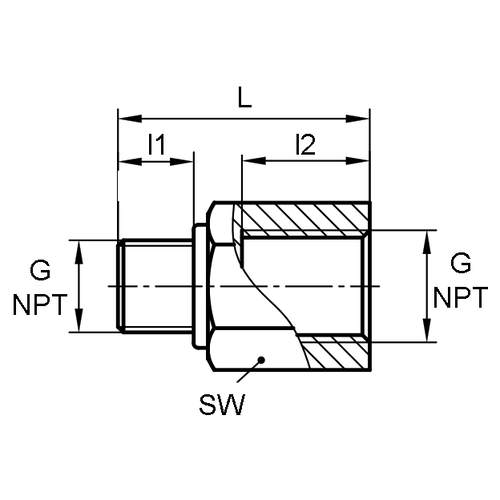

Item Image External thread Innengewinde l1
mm
l2
mm
L
mm
SW
mm
Werkstoff Einheit
Stück
Price
Euro*
Buy
24284
G 1/8" G 1/8" 8 10 22 14 PP 10 59.00
24285
G 1/8" G 1/8" 8 10 22 14 PVDF 5 76.00
24286
G 1/8" G 1/8" 8 10 22 14 PFA 5 99.00
24288
G 1/4" G 1/4" 12 15 34 17 PP 10 74.00
24289
G 1/4" G 1/4" 12 15 34 17 PVDF 5 106.00
24290
G 1/4" G 1/4" 12 15 34 17 PFA 5 160.00
24292
G 3/8" G 3/8" 12 15 33 22 PP 10 81.00
24293
G 3/8" G 3/8" 12 15 33 22 PVDF 5 135.00
24294
G 3/8" G 3/8" 12 15 33 22 PFA 5 225.00
24296
G 1/2" G 1/2" 14 16 37 27 PP 10 111.00
24297
G 1/2" G 1/2" 14 16 37 27 PVDF 5 174.00
24298
G 1/2" G 1/2" 14 16 37 27 PFA 5 278.00
