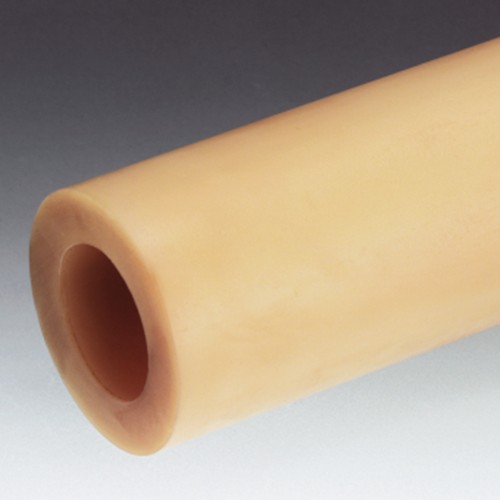

Product specification
Hard elastic behaviour, weather resistant, can be machine processed
Technical specification
Material: PUR (polyurethane based on polyesterpolyol / DESMODUR®15)
Colour: brown
Shore hardness A: 92° ±5 (DIN 53505)
Temperature range: -40 to +80 °C
Density: 1.26 g/cm3
Type of production: cast and tempered
| Item | Image |
Inside Ø mm
|
Toleranz Innen-Ø mm
|
Außen-Ø mm
|
Toleranz Außen-Ø mm
|
Länge mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Toleranz Innen-Ø mm
|
Außen-Ø mm
|
Toleranz Außen-Ø mm
|
Länge mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|
| 302254 |
|
28,5 | ±0,35 | 52 | ±0,45 | 250 | 1 | 192.00 | |
| 302255 |
|
28,5 | ±0,35 | 52 | ±0,45 | 500 | 1 | 286.00 | |
| 302258 |
|
29,5 | ±0,25 | 71 | ±0,45 | 250 | 1 | 277.00 | |
| 302259 |
|
29,5 | ±0,25 | 71 | ±0,45 | 500 | 1 | 368.00 | |
| 302260 |
|
35 | ±0,35 | 90 | ±0,6 | 250 | 1 | 339.00 | |
| 302256 |
|
39 | ±0,35 | 67 | ±0,45 | 250 | 1 | 255.00 | |
| 302257 |
|
39 | ±0,35 | 67 | ±0,45 | 500 | 1 | 355.00 | |
| 302261 |
|
39 | ±0,35 | 81 | ±0,6 | 250 | 1 | 302.00 | |
| 302262 |
|
48 | ±0,35 | 81 | ±0,6 | 250 | 1 | 312.00 | |
| 302264 |
|
59 | ±0,45 | 112 | ±0,6 | 250 | 1 | 434.00 | |
| 302263 |
|
77 | ±0,45 | 112 | ±0,6 | 245 | 1 | 397.00 |
