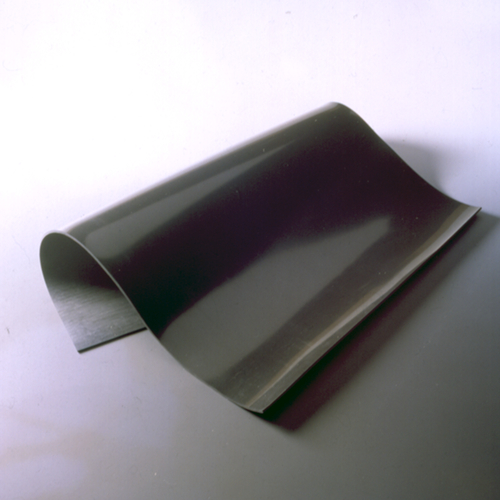

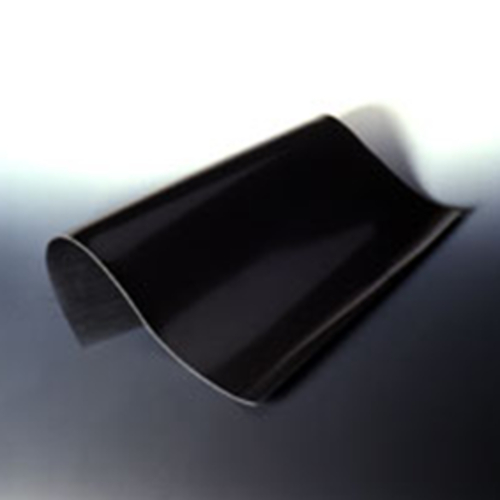

EPDM Plate - Shore 25°

Product specification Extra soft quality, no cellular rubber or foam rubber Very good... more

Product specification

Extra soft quality, no cellular rubber or foam rubber

Very good resistance to weather and aging

Very good cold and thermal resistance

Very good elastic behavior

Good dielectrical properties

Good resistance to hot water, hot steam, glycols, brake fluid, and polar solutions

Limited resistance to acids and alkalis

Poor resistance to mineral oils and fuels

Chemical features: EPDM is a sulfur vulcanized synthetic rubber containing diene components. The terpolymer EPDM is of outstanding stability to oxygen and ozone. Its chemical properties cause its excellent resistance to light, aging, and weather.

Technical specification

Material: EPDM (ethylene-propylene-diene rubber and terpolymer rubber resp.)

Colour: black

Shore hardness A: 25° ±5° (DIN ISO 7619-1)

Temperature range: -45 to +100 °C

Density: 1.00 g/cm3

Elongation at break: >400 % (DIN 53504/ISO 37)

Tearing strength: >3.5 MPa (DIN 53504/ISO 3)

Rebound elasticity: >50 % (DIN 53512)

Tear propagation resistance: 4.3 N/mm (DIN ISO 34-1, strip specimen); 50.7 N/mm (ASTM 624 D)

Compression set: 8.5 % at +70 °C / 24 h (DIN 53517/ISO 815)

Volume resistivity: 1.5 x 1013 Ohm x cm

Abrasion: 154 mm3 (DIN ISO 4649)

Burning behaviour: 34.5 mm/min. (2.0 mm)

Tolerance: DIN ISO 3302-1 E2

Specific features: nitrosamine-free, UV-resistant

No additional information available.
Item Image Thickness
mm
Abmessung
mm
Einheit
Stück
Price
Euro*
Buy
19187
1 650 x 650 1 130.00
19188
1,5 650 x 650 1 135.00
19189
2 650 x 650 1 144.00
19190
3 650 x 650 1 173.00
19191
4 650 x 650 1 223.00
19192
1 1300 x 1300 1 248.00
19193
1,5 1300 x 1300 1 273.00
19194
2 1300 x 1300 1 292.00
19195
3 1400 x 1400 1 351.00
19196
4 1300 x 1300 1 481.00
