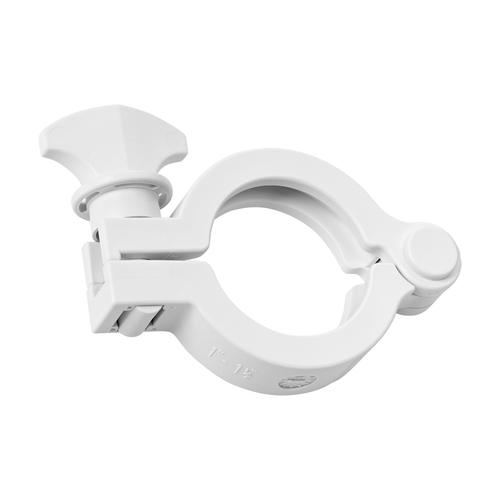

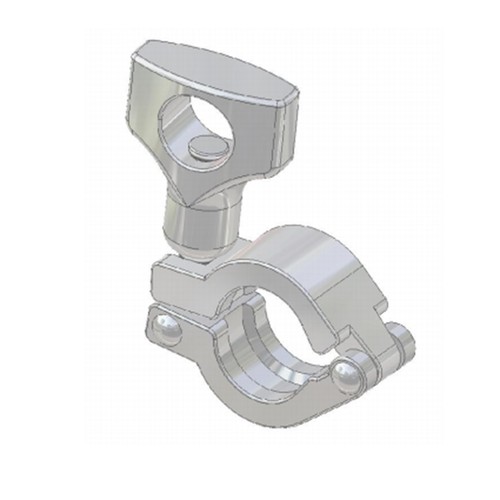

RCT®-Accessories: Tri-Clamp Double-Pin Clamp
Technical specification Material: stainless steel 1.4308 Temperature range: -50 to... more
Technical specification
Material: stainless steel 1.4308
Temperature range: -50 to +600 °C
Material: polyamide with 33 % glass fibre (ZYTEL)
Temperature range: -20 to +150 °C

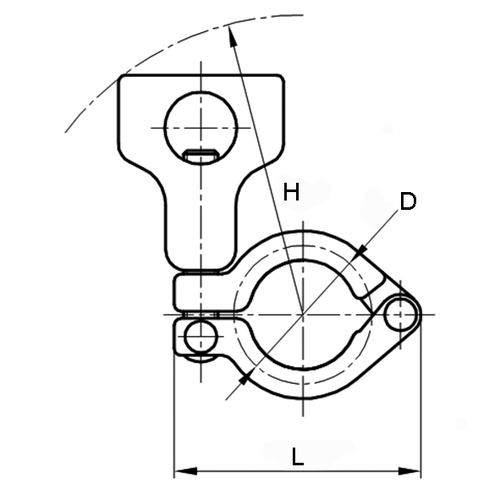

Item | Image |
Tri-Clamp Ø mm
|
D mm
|
H mm
|
L mm
|
Material |
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|
341140 |
|
25 | 28 | 63 | 46 | Edelstahl | 1 | 45.00 | |
341141 |
|
34 | 37 | 68 | 55 | Edelstahl | 1 | 50.00 | |
341142 |
|
50,5 | 53 | 75 | 72 | Edelstahl | 1 | 55.00 | |
341201 |
|
25 | 28 | 63 | 46 | Nylon (PA 6.6) | 1 | 76.00 | |
341202 |
|
50,5 | 53 | 75 | 72 | Nylon (PA 6.6) | 1 | 83.00 |
