Magic Box Pilot Plant made of POM - 63 pieces

Magic Box Pilot Plant made of POM - 63 pieces
Description General Information
Description
Product specification Connecting pieces and adapters made of POM . Set contains: 12... more
Close menu

Product specification

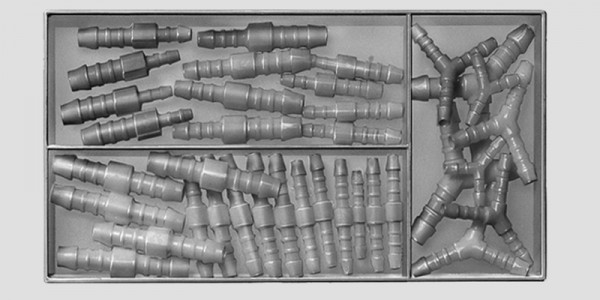

Connecting pieces and adapters made of POM. Set contains:

12 connectors à 2 pieces each: item 26380-85

8 adapters à 2 pieces each: item 26386-88 / 94909

12 T-connectors à 2 pieces each: item 26389-94

12 T-adapters à 2 pieces each: item 26400-05

12 Y-connectors à 2 pieces each: item 26410-15

4 Y-adapters à 2 pieces each: item 26416-1

3 Cross connectors à 1 piece each: item 26418-20

General Information
General Information Resistance to alcohols, aldehydes, petrol, ethers, esters, glycols, motor... more
Close menu

General Information

Resistance to alcohols, aldehydes, petrol, ethers, esters, glycols, motor oils, neutral salt solutions and water

Material: POM (acetal resin, polyoxymethylene)

Colour: white

Temperature range: -40 to +80 °C, for a short time (1 h) +110 °C

Max. operating pressure: 10 bar at +20 °C

Flammability rating: UL 94 HB

Item Image Unit
piece
 Price
Euro* 		Buy
942001
1 135.00
