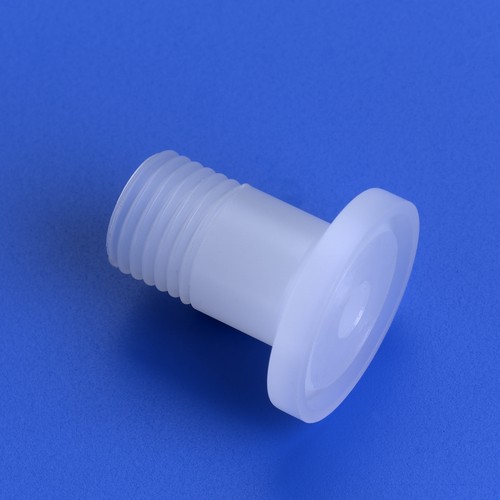

Straight Tri-Clamp Connector with Male Thread made of PP, PVDF or PFA

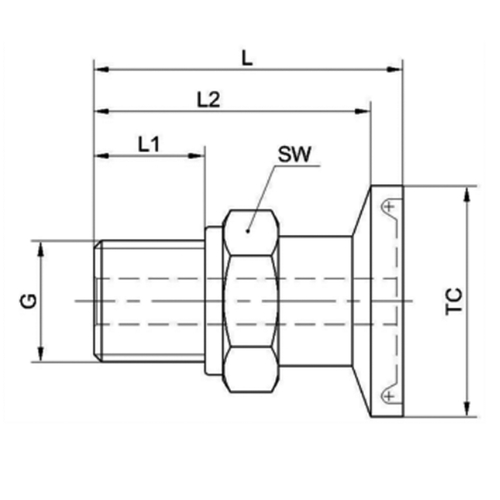

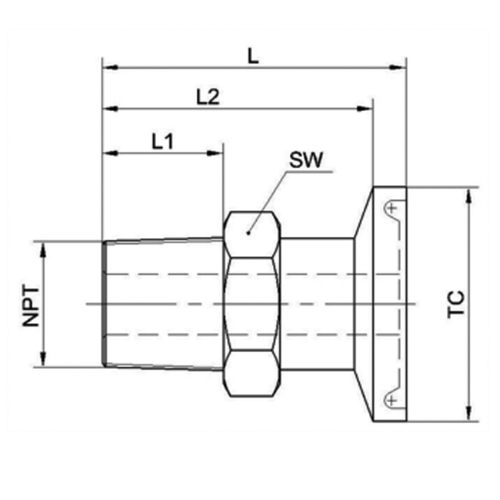

Item | External thread |
Tri-Clamp Ø mm
|
L mm
|
L1 mm
|
L2 mm
|
SW mm
|
Werkstoff |
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|---|
341124 | G 1/8" | 25 | 25,5 | 8 | 22 | 13 | PP | 4 | 42.00 | |
341125 | G 1/4" | 25 | 30 | 12 | 26,5 | 14 | PP | 4 | 60.00 | |
341126 | G 1/4" | 34 | 32 | 12 | 29 | 16 | PP | 4 | 70.00 | |
341127 | G 3/8" | 34 | 32,5 | 12 | 29,7 | 21 | PP | 4 | 91.00 | |
341128 | G 1/2" | 34 | 35 | 14 | 32 | 22 | PP | 4 | 112.00 | |
341129 | G 1/2" | 50,5 | 38,5 | 14 | 35,7 | 26 | PP | 4 | 130.00 | |
341130 | G 3/4" | 50,5 | 40,5 | 16 | 37,7 | 32 | PP | 4 | 183.00 | |
341131 | G 1" | 50,5 | 42,5 | 18 | 39,7 | 39 | PP | 4 | 248.00 | |
341132 | NPT 1/8" | 25 | 31 | 10 | 27,5 | 17 | PP | 4 | 42.00 | |
341133 | NPT 1/4" | 25 | 36 | 15,1 | 32,5 | 17 | PP | 4 | 60.00 | |
341134 | NPT 1/4" | 34 | 36 | 15,1 | 32,5 | 17 | PP | 4 | 70.00 | |
341135 | NPT 3/8" | 34 | 37,3 | 15,26 | 33,8 | 22 | PP | 4 | 91.00 | |
341136 | NPT 1/2" | 34 | 43 | 19,85 | 42,5 | 24 | PP | 4 | 112.00 | |
341137 | NPT 1/2" | 50,5 | 49 | 19,85 | 45,5 | 36 | PP | 4 | 130.00 | |
341138 | NPT 3/4" | 50,5 | 49 | 20,15 | 45,5 | 36 | PP | 4 | 183.00 | |
341139 | NPT 1" | 50,5 | 56 | 25,01 | 52,5 | 41 | PP | 4 | 248.00 | |
341164 | G 1/8" | 25 | 25,5 | 8 | 22 | 13 | PVDF | 4 | 155.00 | |
341165 | G 1/4" | 25 | 30 | 12 | 26,5 | 14 | PVDF | 4 | 170.00 | |
341166 | G 1/4" | 34 | 32 | 12 | 29 | 16 | PVDF | 4 | 214.00 | |
341167 | G 3/8" | 34 | 32,5 | 12 | 29,7 | 21 | PVDF | 4 | 284.00 | |
341168 | G 1/2" | 34 | 35 | 14 | 32 | 22 | PVDF | 4 | 352.00 | |
341169 | G 1/2" | 50,5 | 38,5 | 14 | 35,7 | 26 | PVDF | 2 | 202.00 | |
341170 | G 3/4" | 50,5 | 40,5 | 16 | 37,7 | 32 | PVDF | 2 | 219.00 | |
341171 | G 1" | 50,5 | 42,5 | 18 | 39,7 | 39 | PVDF | 2 | 287.00 | |
341172 | NPT 1/8" | 25 | 31 | 10 | 27,5 | 17 | PVDF | 4 | 155.00 | |
341173 | NPT 1/4" | 25 | 36 | 15,1 | 32,5 | 17 | PVDF | 4 | 170.00 | |
341174 | NPT 1/4" | 34 | 36 | 15,1 | 32,5 | 17 | PVDF | 4 | 214.00 | |
341175 | NPT 3/8" | 34 | 37,3 | 15,26 | 33,8 | 22 | PVDF | 4 | 284.00 | |
341176 | NPT 1/2" | 34 | 43 | 19,85 | 42,5 | 24 | PVDF | 4 | 352.00 | |
341177 | NPT 1/2" | 50,5 | 49 | 19,85 | 45,5 | 36 | PVDF | 2 | 202.00 | |
341178 | NPT 3/4" | 50,5 | 49 | 20,15 | 45,5 | 36 | PVDF | 2 | 219.00 | |
341179 | NPT 1" | 50,5 | 56 | 25,01 | 52,5 | 41 | PVDF | 2 | 287.00 | |
341087 | G 1/8" | 25 | 25,5 | 8 | 22 | 13 | PTFE | 2 | 119.00 | |
341088 | G 1/4" | 25 | 30 | 12 | 26,5 | 14 | PTFE | 2 | 123.00 | |
341089 | G 1/4" | 34 | 32 | 12 | 29 | 16 | PFA | 2 | 159.00 | |
341090 | G 3/8" | 34 | 32,5 | 12 | 29,7 | 21 | PFA | 2 | 180.00 | |
341091 | G 1/2" | 34 | 35 | 14 | 32 | 22 | PFA | 2 | 212.00 | |
341092 | G 1/2" | 50,5 | 38,5 | 14 | 35,7 | 26 | PTFE | 2 | 251.00 | |
341093 | G 3/4" | 50,5 | 40,5 | 16 | 37,7 | 32 | PTFE | 2 | 268.00 | |
341094 | G 1" | 50,5 | 42,5 | 18 | 39,7 | 39 | PTFE | 2 | 336.00 | |
341095 | NPT 1/8" | 25 | 31 | 10 | 27,5 | 17 | PFA | 2 | 119.00 | |
341096 | NPT 1/4" | 25 | 36 | 15,1 | 32,5 | 17 | PFA | 2 | 123.00 | |
341097 | NPT 1/4" | 34 | 36 | 15,1 | 32,5 | 17 | PFA | 2 | 159.00 | |
341098 | NPT 3/8" | 34 | 37,3 | 15,26 | 33,8 | 22 | PFA | 2 | 180.00 | |
341099 | NPT 1/2" | 34 | 43 | 19,85 | 42,5 | 24 | PFA | 2 | 212.00 | |
341100 | NPT 1/2" | 50,5 | 49 | 19,85 | 45,5 | 36 | PTFE | 2 | 251.00 | |
341101 | NPT 3/4" | 50,5 | 49 | 20,15 | 45,5 | 36 | PTFE | 2 | 268.00 | |
341102 | NPT 1" | 50,5 | 56 | 25,01 | 52,5 | 41 | PTFE | 2 | 336.00 |
