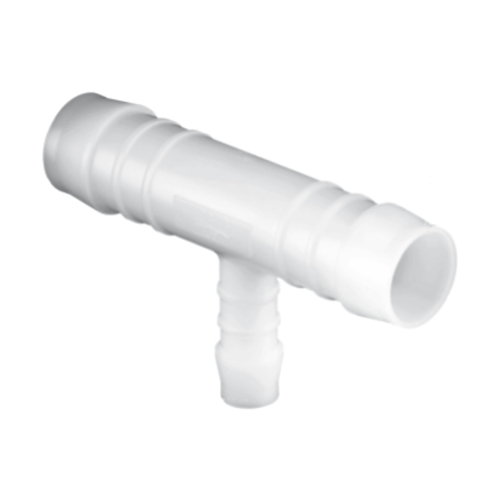

T-Shaped Reducing Connector made of POM

Preview: T-Shaped Reducing Connector made of POM Preview: T-Shaped Reducing Connector made of POM
T-Shaped Reducing Connector made of POM
T-Shaped Reducing Connector made of POM

Description General Information
Description
more
Close menu
No additional information available.
General Information
General Information Resistance to alcohols, aldehydes, petrol, ethers, esters, glycols, motor... more
Close menu

General Information

Resistance to alcohols, aldehydes, petrol, ethers, esters, glycols, motor oils, neutral salt solutions and water

Material: POM (acetal resin, polyoxymethylene)

Colour: white

Temperature range: -40 to +80 °C, for a short time (1 h) +110 °C

Max. operating pressure: 10 bar at +20 °C

Flammability rating: UL 94 HB

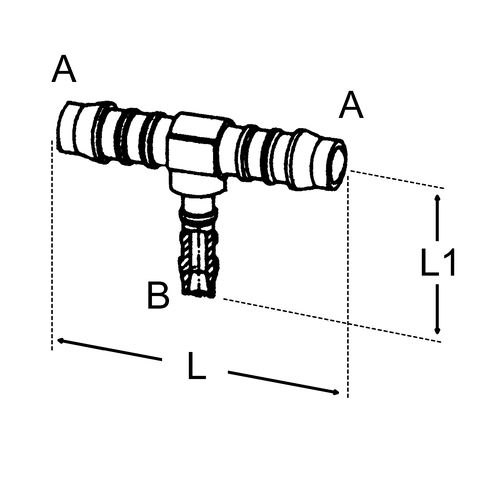

Item Image Tubing inside Ø (A)
mm
 NW (A)
mm
 Schlauch Innen-Ø (B)
mm
 NW (B)
mm
 L
mm
 L1
mm
 Einheit
Stück
 Price
Euro* 		Buy
26400
4 2,7 6 4 37 24 10 37.00
26401
6 4 4 2,5 49 21 10 37.00
26402
8 5,6 4 2,5 56 22 10 39.00
26403
8 5,6 6 4 56 28 10 39.00
26404
10 7 6 4 62 28 8 39.00
26405
10 7 8 5,6 62 31 8 48.00
26406
12 8,6 8 5,6 69 31 4 37.00
26407
12 8,6 10 7 69 33 4 48.00
26408
8 5,6 12 8,6 57 34 4 48.00
26409
18 14 15 11 80 44 4 58.00
