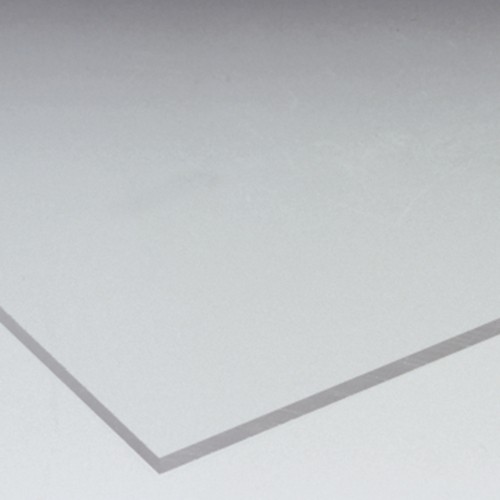

Plate made of PC

Plate made of PC
Application area Precision parts in precision mechanics, safety glasswork, optical parts in... more

Application area

Precision parts in precision mechanics, safety glasswork, optical parts in general, insulating parts in electrical engineering, computer cases, parts coming into contact with food, elements for medical and pharmaceutical devices.

Product specification

High mechanical stability

Very high impact toughness, also at low temperatures

Best temperature resistance

Maintenance of stiffness in a broad temperature range

Very high dimensional stability

Resistance to weather

Hardly inflammable

Good electrical insulating properties

Neutral in taste and odour

Bondable and weldable

Not usable for slid functions

Physiologically safe (approved for use with food)

Limited resistance to hydrolysis

Technical plastic for impact-loaded transparent constructions in machine building and electrical engineering

Technical specification

Material: PC (polycarbonate)

Colour: milky, colourless

Density: 1.2 g/cm3 (ISO 1183)

Temperature range: -60 to +120 °C, for a short time +130 °C

Thermal conductivity: 0.21 W/m * K (DIN 52612)

Flammability rating: UL 94 HB

Tensile strength: 70 N/mm2 (ISO 527-2)

Elongation at break: >50 % (ISO 527-2)

Tensile modulus: 2,400 N/mm2 (ISO 527-2)

Rockwell hardness: M 75 (ISO 20039-2)

Notch impact strength: 9 KJ/m2 (ISO 179/1eA)

Dielectric loss factor:

at 1 MHz: 0.009 (IEC 60250)

at 100 Hz: 0.006 (IEC 60250)

Dielectric strength: 29 kV/mm (IEC 60243-1)

Volume resistivity: 1013 Ohm x m (IEC 60093)

Surface resistivity: 1015 Ohm (IEC 60093)

Regulations: according to BfR and FDA

No additional information available.
Item Image Thickness
mm
Tolerance
mm
Dimensions
mm
Unit
piece
Price
Euro*
Buy
300454
15 +0,3 / +1,5 300 x 500 1 186.00
300455
20 +0,3 / +1,5 300 x 500 1 240.00
300456
25 +0,3 / +1,5 300 x 500 1 293.00
300457
30 +0,5 / +2,5 300 x 500 1 313.00
300458
40 +0,5 / +2,5 300 x 500 1 367.00
300459
50 +0,5 / +2,5 300 x 500 1 403.00
