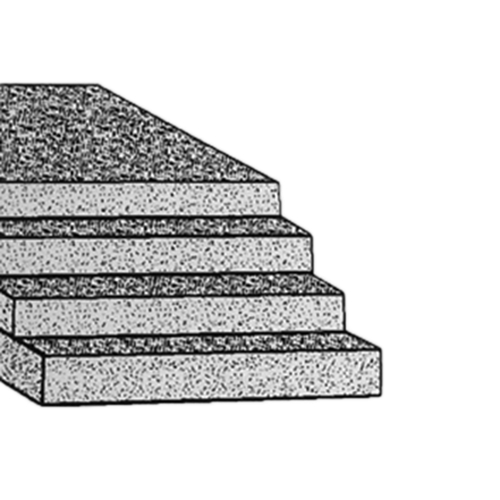

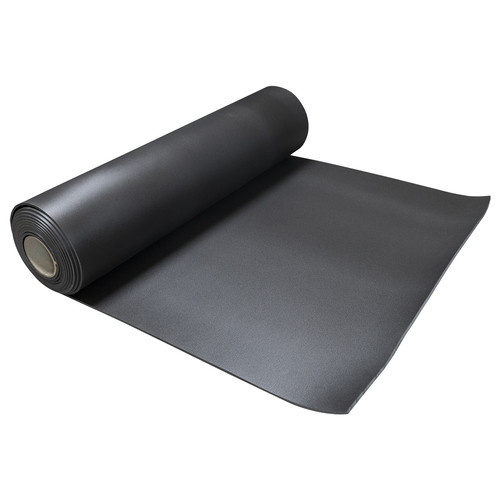

Cellular Rubber Plate made of NBR - Shore 15°

Product specification Best rubber-elastic properties Good weathering and aging resistance... more

Product specification

Best rubber-elastic properties

Good weathering and aging resistance

Very good mineral oil resistance, also to vegetable and animal oils

Very good UV resistance

Good resistance to gasoline

Moderate resistance to acids and alkalis.

Technical specification

Material: NBR (butadiene-acrylonitrile rubber)

Colour: black

Shore hardness A: 10° - 15°

(Shore hardness 00: 45° +-10°)

Temperature range: -10 to +90 °C

Density: 150 - 200 kg/m3

Compressive strength:

45 kPa (ASTM D 1056-85, 25 %)

150 kPa (NF R 99211-80, 50 %)

Compression set:

at +23 °C / 22 h: 14 % (ASTM D 1056-77)

at +40 °C / 22 h: 46 % (NF R 99211-80)

Elongation at break: >= 150 % (ISO 1798-97)

Tensile strength: >= 600 kPa (ISO 1798-97)

Tensile strength: >= 1.5 kN/m

Vacuum water absorption: 3 % (ASTM D 1056-80)

Linear shrinkage: -3.3 % (7 days, +70 °C)

Dimensional stability: -2.5 % (3 h, +80 °C)

Execution: closed cell

General Information Cellular rubber is a closed-cell, foam-like elastomer that is used, among... more

General Information

Cellular rubber is a closed-cell, foam-like elastomer that is used, among other things, for sealing, soft storage, insulation, insulation, Entklappern and deadening.

Cellular rubber has no outer skin, making the surface more delicate and easier to damage. Due to the porous but closed-cell structure, the penetration of aqueous medium is not possible.

Cell rubber seals are thus virtually water and air tight.

Foam rubber and cellular rubber are made from the same raw materials, often EPDM, CR, NR, NBR or SBR. Due to different manufacturing processes, however, the material structure of sponge rubber and cellular rubber differs fundamentally.

Item Image Thickness
mm
Toleranz
mm
Abmessung
mm
Einheit
Stück
Price
Euro*
Buy
332135
2 ±0,5 325 x 480 1 39.00
332136
2 ±0,5 480 x 650 1 78.00
332137
2 ±0,5 650 x 950 1 129.00
332138
2,5 ±0,5 325 x 480 1 48.00
332139
2,5 ±0,5 480 x 650 1 93.00
332140
2,5 ±0,5 650 x 950 1 155.00
332141
3 ±0,6 325 x 480 1 52.00
332142
3 ±0,6 480 x 650 1 105.00
332143
3 ±0,6 650 x 950 1 185.00
332144
4 ±0,6 325 x 480 1 56.00
332145
4 ±0,6 480 x 650 1 110.00
332146
4 ±0,6 650 x 950 1 195.00
332147
5 ±0,5 325 x 480 1 60.00
332148
5 ±0,5 480 x 650 1 120.00
332149
5 ±0,5 650 x 950 1 219.00
332150
6 ±0,7 325 x 480 1 63.00
332151
6 ±0,7 480 x 650 1 114.00
332152
6 ±0,7 650 x 950 1 225.00
332153
8 ±0,8 325 x 480 1 67.00
332154
8 ±0,8 480 x 650 1 131.00
332155
8 ±0,8 650 x 950 1 238.00
332156
10 ±0,8 325 x 480 1 71.00
332157
10 ±0,8 480 x 650 1 140.00
332158
10 ±0,8 650 x 950 1 255.00
332159
12 ±0,9 325 x 480 1 73.00
332160
12 ±0,9 480 x 650 1 146.00
332161
12 ±0,9 650 x 950 1 266.00
332162
15 ±1,0 325 x 480 1 75.00
332163
15 ±1,0 480 x 650 1 148.00
332164
15 ±1,0 650 x 950 1 274.00
332165
20 ±1,0 325 x 480 1 84.00
332166
20 ±1,0 480 x 650 1 170.00
332167
20 ±1,0 650 x 950 1 307.00
