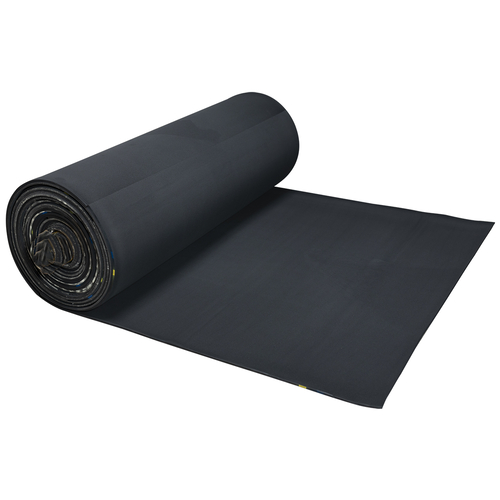

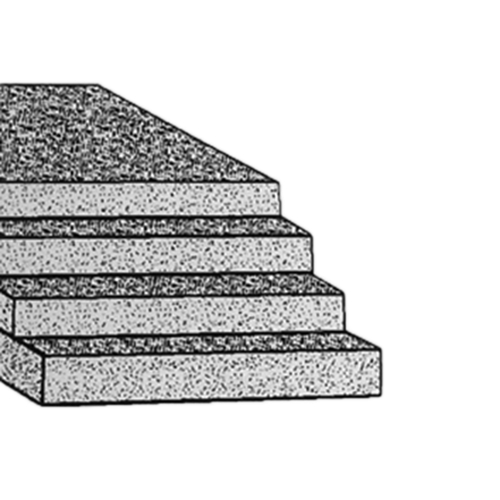

Cellular Rubber Plate made of EPDM - Shore 40°
Product specification
Outstanding elastic behavior, thus excellent deformability
Very good resistance to aging, weather, and ozone
Excellent resistance to heat, cold, hot water and steam
Flame-resistant
Conditionally resistant to acids and alkalis
Not recommended for oil and gasoline.
Technical specification
Material: EPDM (ethylene-propylene-diene rubber)
Colour: black
Shore hardness 00: 40° ±10° (DIN 53505)
Temperature range: -50 to +100 °C, for a short time +120 °C (5 h)
Specific weight: 175 +-25 kg/m3 (ISO 845-88)
Compressive strength: 35 - 65 kPa (ASTM D 1056-07, 25 % deformation)
Compression set: 25 % at +23 °C / 22 h / 50 % deformation (ASTM D 1056-07)
Elongation at break: >180 % (ISO 1798-97))
Tensile strength: >488 kPa (ISO 1798-97)
Tensile strength: 1.5 kN/m (ISO 34-1 (B-a) 94)
Water absorption: <5.0 % (ASTM D 1056-07)
Thermal conductivity: 0.090 W/m * K (NF X10-021)
Regulations: approvals according to ASTM D 1056-07; FMVSS 302; AFNOR NF-R 99211-80, ISO 3795
Flammability rating: UL 94 (>5 mm UL 94 HBF)
Tolerance: DIN ISO 3302-1 E3
Design: closed-cell
General Information
Cellular rubber is a closed-cell, foam-like elastomer that is used, among other things, for sealing, soft storage, insulation, insulation, Entklappern and deadening.
Cellular rubber has no outer skin, making the surface more delicate and easier to damage. Due to the porous but closed-cell structure, the penetration of aqueous medium is not possible.
Cell rubber seals are thus virtually water and air tight.
Foam rubber and cellular rubber are made from the same raw materials, often EPDM, CR, NR, NBR or SBR. Due to different manufacturing processes, however, the material structure of sponge rubber and cellular rubber differs fundamentally.
Item | Image |
Thickness mm
|
Abmessung mm
|
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|
332049 |
|
2 | 250 x 400 | 1 | 45.00 | |
332050 |
|
2 | 400 x 500 | 1 | 54.00 | |
332051 |
|
2 | 500 x 800 | 1 | 67.00 | |
332052 |
|
2 | 800 x 1000 | 1 | 82.00 | |
332053 |
|
2,5 | 250 x 400 | 1 | 54.00 | |
332054 |
|
2,5 | 400 x 500 | 1 | 67.00 | |
332055 |
|
2,5 | 500 x 800 | 1 | 82.00 | |
332056 |
|
2,5 | 800 x 1000 | 1 | 101.00 | |
332057 |
|
3 | 250 x 400 | 1 | 60.00 | |
332058 |
|
3 | 400 x 500 | 1 | 75.00 | |
332059 |
|
3 | 500 x 800 | 1 | 93.00 | |
332060 |
|
3 | 800 x 1000 | 1 | 116.00 | |
332061 |
|
4 | 250 x 400 | 1 | 69.00 | |
332062 |
|
4 | 400 x 500 | 1 | 86.00 | |
332063 |
|
4 | 500 x 800 | 1 | 107.00 | |
332064 |
|
4 | 800 x 1000 | 1 | 135.00 | |
332065 |
|
5 | 250 x 400 | 1 | 78.00 | |
332066 |
|
5 | 400 x 500 | 1 | 95.00 | |
332067 |
|
5 | 500 x 800 | 1 | 118.00 | |
332068 |
|
5 | 800 x 1000 | 1 | 148.00 | |
332069 |
|
6 | 250 x 400 | 1 | 84.00 | |
332070 |
|
6 | 400 x 500 | 1 | 103.00 | |
332071 |
|
6 | 500 x 800 | 1 | 129.00 | |
332072 |
|
6 | 800 x 1000 | 1 | 161.00 | |
332073 |
|
8 | 250 x 400 | 1 | 90.00 | |
332074 |
|
8 | 400 x 500 | 1 | 112.00 | |
332075 |
|
8 | 500 x 800 | 1 | 140.00 | |
332076 |
|
8 | 800 x 1000 | 1 | 174.00 | |
332077 |
|
10 | 250 x 400 | 1 | 105.00 | |
332078 |
|
10 | 400 x 500 | 1 | 133.00 | |
332079 |
|
10 | 500 x 800 | 1 | 165.00 | |
332080 |
|
10 | 800 x 1000 | 1 | 206.00 | |
332081 |
|
12 | 250 x 400 | 1 | 110.00 | |
332082 |
|
12 | 400 x 500 | 1 | 135.00 | |
332083 |
|
12 | 500 x 800 | 1 | 170.00 | |
332084 |
|
12 | 800 x 1000 | 1 | 212.00 | |
332085 |
|
15 | 250 x 400 | 1 | 116.00 | |
332086 |
|
15 | 400 x 500 | 1 | 146.00 | |
332087 |
|
15 | 500 x 800 | 1 | 182.00 | |
332088 |
|
15 | 800 x 1000 | 1 | 227.00 | |
332089 |
|
20 | 250 x 400 | 1 | 127.00 | |
332090 |
|
20 | 400 x 500 | 1 | 157.00 | |
332091 |
|
20 | 500 x 800 | 1 | 197.00 | |
332092 |
|
20 | 800 x 1000 | 1 | 247.00 | |
332093 |
|
25 | 250 x 400 | 1 | 133.00 | |
332094 |
|
25 | 400 x 500 | 1 | 167.00 | |
332095 |
|
25 | 500 x 800 | 1 | 210.00 | |
332096 |
|
25 | 800 x 1000 | 1 | 262.00 | |
332097 |
|
30 | 250 x 400 | 1 | 144.00 | |
332098 |
|
30 | 400 x 500 | 1 | 178.00 | |
332099 |
|
30 | 500 x 800 | 1 | 223.00 | |
332100 |
|
30 | 800 x 1000 | 1 | 281.00 | |
332101 |
|
40 | 250 x 400 | 1 | 155.00 | |
332102 |
|
40 | 400 x 500 | 1 | 193.00 | |
332103 |
|
40 | 500 x 800 | 1 | 240.00 | |
332104 |
|
40 | 800 x 1000 | 1 | 302.00 |
