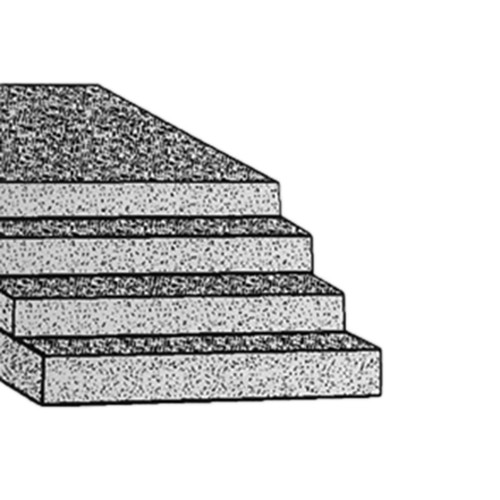

Foam Rubber Sheet made of CR - without skin

Product specification Remarkable temperature resistance, also for a short time Excellent... more

Close menu

Product specification

Remarkable temperature resistance, also for a short time

Excellent resistance to weather, aging and ozone

Good mechanical stability

High flame resistance

Technical specification

Material: CR (chloroprene rubber)

Colour: black

Shore hardness A: 15° ±3° (DIN 53505)

Temperature range: -40 to +110 °C

Elongation: 450 - 600 %

Density: 600 - 1,000 kg/m³

Compression set:

at +23 °C / 72 h: approx. 10 %

at +70 °C / 22 h: approx. 22 %

Compressibility: 150 ±60 kPa at 25 % deformation

Inflammability: self-extinguishing

Design: without skin on both sides, but closed-cell and mixed-cell

General Information Foam rubber has a mixed cell structure with mostly open cells and a dense... more

Close menu

General Information

Foam rubber has a mixed cell structure with mostly open cells and a dense outer skin. It is used in many ways as a sealing material in the form of round cords, square profiles, plates or moldings.

Since open-celled, these materials can therefore absorb liquids.

The surface of sponge rubber profiles and seals is better protected from external influences than with cellular rubber due to the dense, robust and elastic outer skin.

However, if the surface is damaged, then the foam rubber seal with the open-cell structure, through the capillary action with aqueous medium can soak.

Foam rubber and cellular rubber are made from the same raw materials, often EPDM, CR, NR, NBR or SBR. Due to different manufacturing processes, however, the material structure of sponge rubber and cellular rubber differs fundamentally.

Item	Thickness mm	Toleranz mm	Abmessung mm	Einheit Stück	Price Euro*
332210	2	±0,5	250 x 250	1	71.00
332211	2	±0,5	500 x 500	1	140.00
332212	2	±0,5	1000 x 1000	1	279.00
332213	3	±0,6	250 x 250	1	75.00
332214	3	±0,6	500 x 500	1	152.00
332215	3	±0,6	1000 x 1000	1	307.00
332216	5	±0,7	250 x 250	1	88.00
332217	5	±0,7	500 x 500	1	174.00
332218	5	±0,7	1000 x 1000	1	347.00
332219	8	±0,8	250 x 250	1	95.00
332220	8	±0,8	500 x 500	1	191.00
3322211	8	±0,8	1000 x 1000	1	381.00
