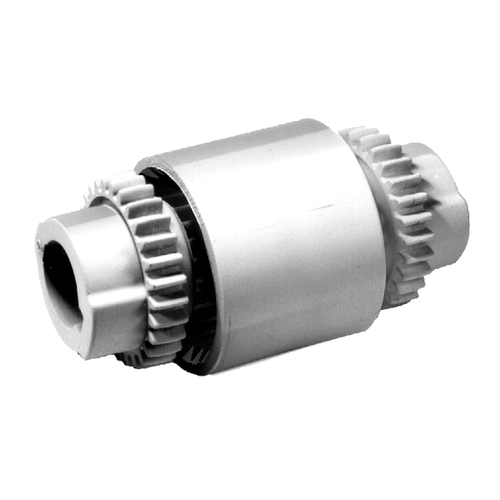

Curved-Tooth Gear Coupling Hub Part made of polyamide 6.6

Technical specification Material of hubs: polyamide 6.6 Max. speed: 6,000 min -1 more

Technical specification

Material of hubs: polyamide 6.6

Max. speed: 6,000 min-1

General Information Multi-part couplings with rounded teeth for connecting two shafts. Hubs... more

General Information

Multi-part couplings with rounded teeth for connecting two shafts.

Hubs made of resistant plastic for low to medium torques (food engineering)

Sleeve part or sleeve made of plastic, light and wear-resistant.

Hub parts and sleeve part or sleeve have to be ordered separately.

Torsionally-stiff and angle-compensating with axial movement.

For shaft diameters from 6 mm to 24 mm.

Ready-to-install with custom bore, feather keyway and set screw.

Easy mounting and dismounting without special tool.

Resistant to oils, fats, grease, fuels, various alcohols, esters, ketones, and grachatic hydrocarbons.

Not resistant against concentrated mineral acids, formic acid, kresol, glycol and benzyl alcohol.

Various possible combinations:

Two-part: 1 hub part plus 1 sleeve part

Three-part: 2 hub parts plus sleeve

Different hubs (various bores) can be combined with a sleeve. Each size (14, 19 or 24) has to match.

Material:

Casing: PA 6.6 (polyamide 6.6)

Hubs: plastics or sintered steel

Allen screws: steel, burnished

Temperature range: -25 to +100 °C, for short periods of time +120 °C

Custom bore: +0.05/-0.1 mm (with metal hub H7), feather keyway DIN 6885/1

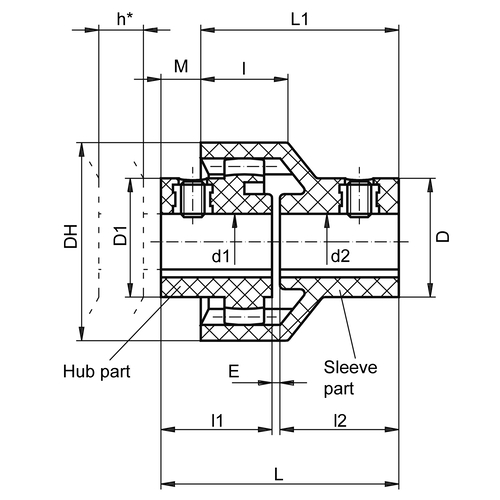

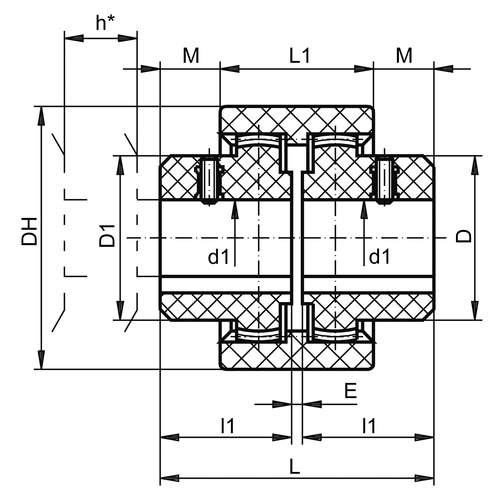

Item Image Size d1
mm
D1
mm
Taschenteil (2-teilig) Suitable for 2 Max. torque1
Nm
L
mm
l1
mm
h2
mm
E
mm
M
mm
Weight
g
Unit
piece
Price
Euro*
Buy
705877
14 6 22 705973 10 48 23 15 4 8 13,5 1 14.00
705878
14 6 22 705973 10 48 23 15 4 8 13,5 2 24.00
705879
14 7 22 705973 10 48 23 15 4 8 13,5 1 14.00
705880
14 7 22 705973 10 48 23 15 4 8 13,5 2 24.00
705881
14 8 22 705973 10 48 23 15 4 8 13,5 1 14.00
705882
14 8 22 705973 10 48 23 15 4 8 13,5 2 24.00
705883
14 9 22 705973 10 48 23 15 4 8 13,5 1 14.00
705884
14 9 22 705973 10 48 23 15 4 8 13,5 2 24.00
705885
14 10 23 705951 705973 10 48 23 15 4 8 13,5 1 14.00
705886
14 10 23 705951 705973 10 48 23 15 4 8 13,5 2 24.00
705887
14 11 23 705953 705973 10 48 23 15 4 8 13,5 1 14.00
705888
14 11 23 705953 705973 10 48 23 15 4 8 13,5 2 24.00
705889
14 12 26 705955 705973 10 48 23 15 4 8 13,5 1 14.00
705890
14 12 26 705955 705973 10 48 23 15 4 8 13,5 2 24.00
705891
14 14 26 705957 705973 10 48 23 15 4 8 13,5 1 14.00
705892
14 14 26 705957 705973 10 48 23 15 4 8 13,5 2 24.00
705893
19 12 27 705975 16 42 25 16 4 10 15,5 1 24.00
705894
19 12 27 705975 16 42 25 16 4 10 15,5 2 42.00
705895
19 14 27 705959 705975 16 42 25 16 4 10 15,5 1 24.00
705896
19 14 27 705959 705975 16 42 25 16 4 10 15,5 2 42.00
705897
19 16 30 705961 705975 16 42 25 16 4 10 15,5 1 24.00
705898
19 16 30 705961 705975 16 42 25 16 4 10 15,5 2 42.00
705899
19 19 32 705963 705975 16 42 25 16 4 10 15,5 1 24.00
705900
19 19 32 705963 705975 16 42 25 16 4 10 15,5 2 42.00
705901
24 10 26 705977 24 54 26 17 4 9 25 1 28.00
705902
24 10 26 705977 24 54 26 17 4 9 25 2 48.00
705903
24 11 26 705977 24 54 26 17 4 9 25 1 28.00
705904
24 11 26 705977 24 54 26 17 4 9 25 2 48.00
705905
24 12 26 705977 24 54 26 17 4 9 25 1 28.00
705906
24 12 26 705977 24 54 26 17 4 9 25 2 48.00
705907
24 14 32 705965 705977 24 54 26 17 4 9 25 1 28.00
705908
24 14 32 705965 705977 24 54 26 17 4 9 25 2 48.00
705909
24 15 32 705977 24 54 26 17 4 9 25 1 28.00
705910
24 15 32 705977 24 54 26 17 4 9 25 2 48.00
705911
24 16 32 705977 24 54 26 17 4 9 25 1 28.00
705912
24 16 32 705977 24 54 26 17 4 9 25 2 48.00
705913
24 18 36 705977 24 54 26 17 4 9 25 1 28.00
705914
24 18 36 705977 24 54 26 17 4 9 25 2 48.00
705915
24 19 36 705967 705977 24 54 26 17 4 9 25 1 28.00
705916
24 19 36 705967 705977 24 54 26 17 4 9 25 2 48.00
705917
24 20 36 705969 705977 24 54 26 17 4 9 25 1 28.00
705918
24 20 36 705969 705977 24 54 26 17 4 9 25 2 48.00
705919
24 24 38 705971 705977 24 54 26 17 4 9 25 1 28.00
705920
24 24 38,5 705971 705977 24 54 26 17 4 9 25 2 48.00
