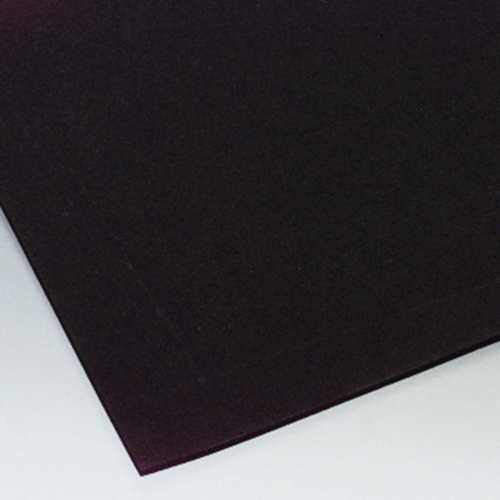

Cellular Rubber Plate made of CR - Shore 15°

Cellular Rubber Plate made of CR - Shore 15°

Product specification Good elastic properties Good abrasion resistance Good resistance to... more

Close menu

Product specification

Good elastic properties

Good abrasion resistance

Good resistance to weather, aging, and ozone

High flame resistance

Chemically resistant to dilute acids, alkalis, and mineral oils

Technical specification

Material: CR (chloroprene rubber)

Colour: black

Shore hardness A: 15° ±3° (DIN 53505)

Density: 0.18 g/cm³

Temperature range: -30 to +85 °C, for a short time 110 °C

Thickness tolerance: DIN 7715 P3

Design: foamed, closed-cell, without skin

General Information Cellular rubber is a closed-cell, foam-like elastomer that is used, among... more

Close menu

General Information

Cellular rubber is a closed-cell, foam-like elastomer that is used, among other things, for sealing, soft storage, insulation, insulation, Entklappern and deadening.

Cellular rubber has no outer skin, making the surface more delicate and easier to damage. Due to the porous but closed-cell structure, the penetration of aqueous medium is not possible.

Cell rubber seals are thus virtually water and air tight.

Foam rubber and cellular rubber are made from the same raw materials, often EPDM, CR, NR, NBR or SBR. Due to different manufacturing processes, however, the material structure of sponge rubber and cellular rubber differs fundamentally.

Item	Thickness mm	Abmessung mm	Einheit Stück	Price Euro*
300831	2	350 x 500	1	67.00
331615	2	700 x 500	1	78.00
331616	2	1000 x 700	1	118.00
331617	2	1400 x 1000	1	182.00
300832	3	350 x 500	1	91.00
331618	3	700 x 500	1	93.00
331619	3	1000 x 700	1	142.00
331620	3	1400 x 1000	1	217.00
300833	4	350 x 500	1	102.00
331621	4	700 x 500	1	99.00
331622	4	1000 x 700	1	152.00
331623	4	1400 x 1000	1	236.00
300834	5	350 x 500	1	111.00
331624	5	700 x 500	1	114.00
331625	5	1000 x 700	1	174.00
331626	5	1400 x 1000	1	266.00
300835	6	350 x 500	1	121.00
331627	6	700 x 500	1	120.00
331628	6	1000 x 700	1	185.00
331629	6	1400 x 1000	1	283.00
300836	8	350 x 500	1	130.00
331630	8	700 x 500	1	131.00
331631	8	1000 x 700	1	202.00
331632	8	1400 x 1000	1	309.00
300837	10	350 x 500	1	135.00
331633	10	700 x 500	1	142.00
331634	10	1000 x 700	1	217.00
331635	10	1400 x 1000	1	330.00
300838	12	350 x 500	1	146.00
331636	12	700 x 500	1	159.00
331637	12	1000 x 700	1	247.00
331638	12	1400 x 1000	1	356.00
300839	15	350 x 500	1	171.00
331639	15	700 x 500	1	174.00
331640	15	1000 x 700	1	270.00
331641	15	1400 x 1000	1	416.00
300840	20	350 x 500	1	181.00
331642	20	700 x 500	1	206.00
331643	20	1000 x 700	1	319.00
331644	20	1400 x 1000	1	493.00
300841	25	350 x 500	1	195.00
331645	25	700 x 500	1	225.00
331646	25	1000 x 700	1	349.00
331647	25	1400 x 1000	1	540.00
300842	30	350 x 500	1	211.00
300854	30	700 x 500	1	302.00
301039	30,5	700 x 1000	1	488.00
