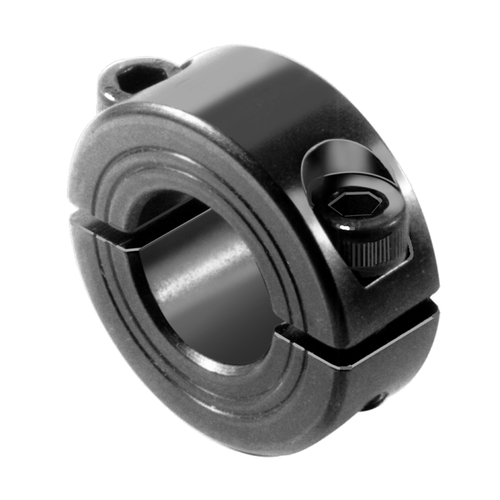

Clamp Collar - double-split

Product specification Double-split clamp collar made of aluminium or stainless steel Very... more

Product specification

Double-split clamp collar made of aluminium or stainless steel

Very even distribution of clamping forces

Before assembly the collar is unscrewed and can then be fitted and tightened. The shaft must not be dismantled for this.

General Information As stop collar / contact surface on shafts. For axial safety of shafts or... more

General Information

As stop collar / contact surface on shafts. For axial safety of shafts or of components on shafts, with the possibility of easy adjustment and readjustment.

High holding forces (significantly higher than with shaft collars)

Moveable after loosening a screw

No damage to the shaft

Easy mounting and dismounting without special tool

Material:

Clamp collar: either aluminium alloy or stainless steel 1.4301

Allen screws: in steel 12.9 or stainless steel V2A (DIN 912)

Max. speed: 4,000 min-1

Temperature range: -40 to +175 °C

Width tolerance (dimension b): +0.08 / -0.25 mm

Shaft:

Tolerance class: up to f11 or h11 (the shaft can also be slightly over-dimensioned)

Ø: 3 - 50 mm, precisely bored

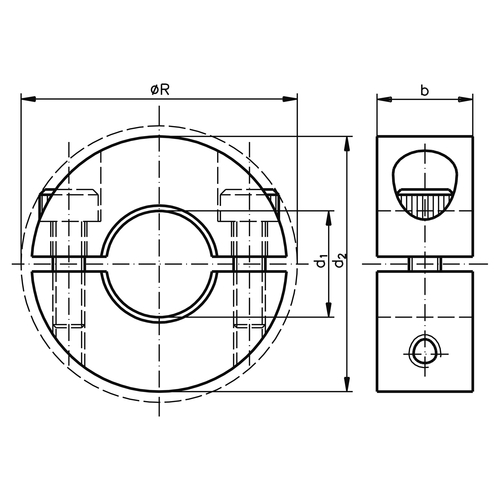

Item Image d1
mm
d2
mm
R
mm
b
mm
Screw size Werkstoff Gewicht
g
Einheit
Stück
Price
Euro*
Buy
706825
3 16 20,7 9 M3 x 8 Edelstahl 12 5 134.00
706826
3 16 20,7 9 M3 x 8 Edelstahl 12 10 225.00
706827
4 16 20,7 9 M3 x 8 Edelstahl 11 5 129.00
706828
4 16 20,7 9 M3 x 8 Edelstahl 11 10 214.00
706829
5 16 20,7 9 M3 x 8 Edelstahl 11 5 124.00
706830
5 16 20,7 9 M3 x 8 Edelstahl 11 10 204.00
706831
6 16 20,7 9 M3 x 8 Edelstahl 10 5 124.00
706832
6 16 20,7 9 M3 x 8 Edelstahl 10 10 204.00
706833
7 18 22,4 9 M3 x 8 Edelstahl 13 5 118.00
706834
7 18 22,4 9 M3 x 8 Edelstahl 13 10 193.00
706835
8 18 22,4 9 M3 x 8 Edelstahl 12 5 107.00
706836
8 18 22,4 9 M3 x 8 Edelstahl 12 10 172.00
706837
9 24 26 9 M3 x 8 Edelstahl 25 5 124.00
706838
9 24 26 9 M3 x 8 Edelstahl 25 10 209.00
706839
10 24 26 9 M3 x 8 Edelstahl 24 5 124.00
706840
10 24 26 9 M3 x 8 Edelstahl 24 10 209.00
706841
11 28 31,8 11 M4 x 12 Edelstahl 40 5 134.00
706842
11 28 31,8 11 M4 x 12 Edelstahl 40 10 220.00
706843
12 28 31,8 11 M4 x 12 Edelstahl 39 5 129.00
706844
12 28 31,8 11 M4 x 12 Edelstahl 39 10 214.00
706845
13 30 33,9 11 M4 x 12 Edelstahl 45 5 145.00
706846
13 30 33,9 11 M4 x 12 Edelstahl 45 10 231.00
706847
14 30 33,9 11 M4 x 12 Edelstahl 43 5 140.00
706848
14 30 33,9 11 M4 x 12 Edelstahl 43 10 225.00
706849
15 34 39,4 13 M5 x 14 Edelstahl 68 5 161.00
706850
15 34 39,4 13 M5 x 14 Edelstahl 68 10 257.00
706851
16 34 39,4 13 M5 x 14 Edelstahl 65 5 161.00
706852
16 34 39,4 13 M5 x 14 Edelstahl 65 10 257.00
706853
17 36 41,1 13 M5 x 14 Edelstahl 74 5 172.00
706854
17 36 41,1 13 M5 x 14 Edelstahl 74 10 284.00
706855
18 36 41,1 13 M5 x 14 Edelstahl 71 5 172.00
706856
18 36 41,1 13 M5 x 14 Edelstahl 71 10 284.00
706857
19 40 46,4 15 M6 x 16 Edelstahl 104 5 204.00
706858
19 40 46,4 15 M6 x 16 Edelstahl 104 10 332.00
706859
20 40 46,4 15 M6 x 16 Edelstahl 101 5 166.00
706860
20 40 46,4 15 M6 x 16 Edelstahl 101 10 273.00
706861
21 42 48,1 15 M6 x 16 Edelstahl 113 5 182.00
706862
21 42 48,1 15 M6 x 16 Edelstahl 113 10 295.00
706863
22 42 48,1 15 M6 x 16 Edelstahl 107 5 182.00
706864
22 42 48,1 15 M6 x 16 Edelstahl 107 10 295.00
706865
23 45 50,8 15 M6 x 16 Edelstahl 127 5 193.00
706866
23 45 50,8 15 M6 x 16 Edelstahl 127 10 316.00
706867
24 45 50,8 15 M6 x 16 Edelstahl 122 5 193.00
706868
24 45 50,8 15 M6 x 16 Edelstahl 122 10 316.00
706869
25 45 50,8 15 M6 x 16 Edelstahl 120 5 182.00
706870
25 45 50,8 15 M6 x 16 Edelstahl 120 10 295.00
706871
26 48 53,7 15 M6 x 18 Edelstahl 139 5 220.00
706872
26 48 53,7 15 M6 x 18 Edelstahl 139 10 359.00
706873
28 48 53,7 15 M6 x 18 Edelstahl 128 5 220.00
706874
28 48 53,7 15 M6 x 18 Edelstahl 128 10 359.00
706875
30 54 58,6 15 M6 x 18 Edelstahl 171 5 241.00
706876
30 54 58,6 15 M6 x 18 Edelstahl 171 10 391.00
706877
32 54 58,6 15 M6 x 18 Edelstahl 161 5 257.00
706878
32 54 58,6 15 M6 x 18 Edelstahl 161 10 423.00
706879
34 57 61,6 15 M6 x 18 Edelstahl 181 5 305.00
706880
34 57 61,6 15 M6 x 18 Edelstahl 181 10 487.00
706881
35 57 61,6 15 M6 x 18 Edelstahl 172 5 273.00
706882
35 57 61,6 15 M6 x 18 Edelstahl 172 10 439.00
706883
36 57 61,6 15 M6 x 18 Edelstahl 169 5 305.00
706884
36 57 61,6 15 M6 x 18 Edelstahl 169 10 487.00
706885
38 60 65 15 M6 x 20 Edelstahl 183 5 380.00
706886
38 60 65 15 M6 x 20 Edelstahl 183 10 610.00
706887
40 60 65 15 M6 x 20 Edelstahl 172 5 364.00
706888
40 60 65 15 M6 x 20 Edelstahl 172 10 589.00
706889
42 73 79,4 19 M8 x 25 Edelstahl 383 2 244.00
706890
42 73 79,4 19 M8 x 25 Edelstahl 383 6 559.00
706891
45 73 79,4 19 M8 x 25 Edelstahl 360 2 238.00
706892
45 73 79,4 19 M8 x 25 Edelstahl 360 6 546.00
706893
48 78 84,2 19 M8 x 25 Edelstahl 414 1 148.00
706894
48 78 84,2 19 M8 x 25 Edelstahl 414 3 344.00
706895
50 78 84,2 19 M8 x 25 Edelstahl 386 1 144.00
706896
50 78 84,2 19 M8 x 25 Edelstahl 386 3 331.00
706897
3 16 20,7 9 M3 x 8 Aluminium 4 5 59.00
706898
3 16 20,7 9 M3 x 8 Aluminium 4 10 97.00
706899
4 16 20,7 9 M3 x 8 Aluminium 4 5 59.00
706900
4 16 20,7 9 M3 x 8 Aluminium 4 10 97.00
706901
5 16 20,7 9 M3 x 8 Aluminium 4 5 59.00
706902
5 16 20,7 9 M3 x 8 Aluminium 4 10 97.00
706903
6 16 20,7 9 M3 x 8 Aluminium 3 5 59.00
706904
6 16 20,7 9 M3 x 8 Aluminium 3 10 97.00
706905
7 18 22,4 9 M3 x 8 Aluminium 4 5 65.00
706906
7 18 22,4 9 M3 x 8 Aluminium 4 10 107.00
706907
8 18 22,4 9 M3 x 8 Aluminium 4 5 65.00
706908
8 18 22,4 9 M3 x 8 Aluminium 4 10 107.00
706909
9 24 26 9 M3 x 8 Aluminium 9 5 91.00
706910
9 24 26 9 M3 x 8 Aluminium 9 10 145.00
706911
10 24 26 9 M3 x 8 Aluminium 8 5 91.00
706912
10 24 26 9 M3 x 8 Aluminium 8 10 145.00
706913
11 28 31,8 11 M4 x 12 Aluminium 14 5 97.00
706914
11 28 31,8 11 M4 x 12 Aluminium 14 10 156.00
706915
12 28 31,8 11 M4 x 12 Aluminium 13 5 97.00
706916
12 28 31,8 11 M4 x 12 Aluminium 13 10 156.00
706917
13 30 33,9 11 M4 x 12 Aluminium 16 5 97.00
706918
13 30 33,9 11 M4 x 12 Aluminium 16 10 156.00
706919
14 30 33,9 11 M4 x 12 Aluminium 15 5 97.00
706920
14 30 33,9 11 M4 x 12 Aluminium 15 10 156.00
706921
15 34 39,4 13 M5 x 14 Aluminium 23 5 107.00
706922
15 34 39,4 13 M5 x 14 Aluminium 23 10 172.00
706923
16 34 39,4 13 M5 x 14 Aluminium 22 5 124.00
706924
16 34 39,4 13 M5 x 14 Aluminium 22 10 198.00
706925
17 36 41,1 13 M5 x 14 Aluminium 26 5 124.00
706926
17 36 41,1 13 M5 x 14 Aluminium 26 10 198.00
706927
18 36 41,1 13 M5 x 14 Aluminium 24 5 140.00
706928
18 36 41,1 13 M5 x 14 Aluminium 24 10 220.00
706929
19 40 46,4 15 M6 x 16 Aluminium 36 5 140.00
706930
19 40 46,4 15 M6 x 16 Aluminium 36 10 220.00
706931
20 40 46,4 15 M6 x 16 Aluminium 35 5 140.00
706932
20 40 46,4 15 M6 x 16 Aluminium 35 10 220.00
706933
21 42 48,1 15 M6 x 16 Aluminium 39 5 140.00
706934
21 42 48,1 15 M6 x 16 Aluminium 39 10 220.00
706935
22 42 48,1 15 M6 x 16 Aluminium 37 5 140.00
706936
22 42 48,1 15 M6 x 16 Aluminium 37 10 220.00
706937
23 45 50,8 15 M6 x 16 Aluminium 44 5 150.00
706938
23 45 50,8 15 M6 x 16 Aluminium 44 10 236.00
706939
24 45 50,8 15 M6 x 16 Aluminium 42 5 166.00
706940
24 45 50,8 15 M6 x 16 Aluminium 42 10 257.00
706941
25 45 50,8 15 M6 x 16 Aluminium 41 5 166.00
706942
25 45 50,8 15 M6 x 16 Aluminium 41 10 257.00
706943
26 48 53,7 15 M6 x 18 Aluminium 48 5 193.00
706944
26 48 53,7 15 M6 x 18 Aluminium 48 10 300.00
706945
28 48 53,7 15 M6 x 18 Aluminium 44 5 193.00
706946
28 48 53,7 15 M6 x 18 Aluminium 44 10 300.00
706947
30 54 58,6 15 M6 x 18 Aluminium 59 5 204.00
706948
30 54 58,6 15 M6 x 18 Aluminium 59 10 316.00
706949
32 54 58,6 15 M6 x 18 Aluminium 56 5 225.00
706950
32 54 58,6 15 M6 x 18 Aluminium 56 10 354.00
706951
34 57 61,6 15 M6 x 18 Aluminium 62 5 225.00
706952
34 57 61,6 15 M6 x 18 Aluminium 62 10 354.00
706953
35 57 61,6 15 M6 x 18 Aluminium 60 5 231.00
706954
35 57 61,6 15 M6 x 18 Aluminium 60 10 359.00
706955
36 57 61,6 15 M6 x 18 Aluminium 59 5 241.00
706956
36 57 61,6 15 M6 x 18 Aluminium 59 10 375.00
706957
38 60 65 15 M6 x 20 Aluminium 63 5 247.00
706958
38 60 65 15 M6 x 20 Aluminium 63 10 380.00
706959
40 60 65 15 M6 x 20 Aluminium 59 5 247.00
706960
40 60 65 15 M6 x 20 Aluminium 59 10 380.00
706961
42 73 79,4 19 M8 x 25 Aluminium 132 5 295.00
706962
42 73 79,4 19 M8 x 25 Aluminium 132 10 445.00
706963
45 73 79,4 19 M8 x 25 Aluminium 124 5 300.00
706964
45 73 79,4 19 M8 x 25 Aluminium 124 10 455.00
706965
48 78 84,2 19 M8 x 25 Aluminium 143 5 321.00
706966
48 78 84,2 19 M8 x 25 Aluminium 143 10 487.00
706967
50 78 84,2 19 M8 x 25 Aluminium 133 5 321.00
706968
50 78 84,2 19 M8 x 25 Aluminium 133 10 488.00
