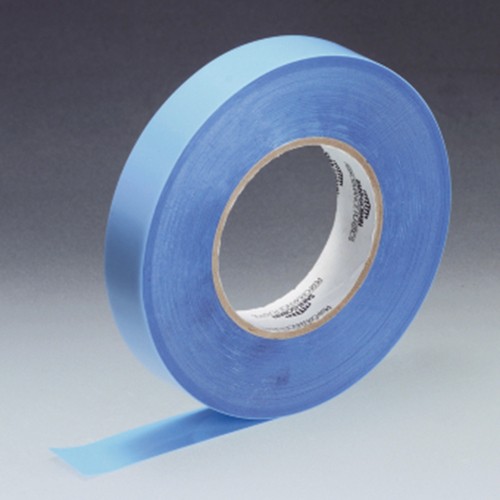

Slip Adhesive Tape made of UHMW-PE

Slip Adhesive Tape made of UHMW-PE
Description General Information
Description
Application area As slip layer without higher loading, e.g. in conveying channels, funnels,... more
Close menu

Application area

As slip layer without higher loading, e.g. in conveying channels, funnels, guides of packaging machines.

As antiadhesive and separating layer of filling stations and working devices in direct contact with sticky goods, food or pharmaceutical products.

As antiadhesive coating at measuring devices and sports articles used in the winter season, as no adherence of snow or ice occurs.

Product specification

Good coefficient of sliding friction (low cohesive friction)

Good abrasion resistance

Good impact toughness

Good dielectric properties

Antiadhesive surface

Good mechanical stability

Self-lubricating effect, extremely good sliding properties

Technical specification

Material: UHMW-PE (Ultra High Molecular Weight Polyethylene)

Colour: transparent/translucent, with blue carrier ribbon

Temperature range: -40 to +107 °C

Adhesive: acrylic

Adhesive layer: approx. 0.05 mm

Peel strength on steel: 19.8 N / 25 mm

Shear strength: 15.2 kPa

Design: sliced, self-adhesive

General Information
more
Close menu
No additional information available.
Item Image Width
mm
 Stärke
mm
 Länge
m
 Einheit
Stück
 Price
Euro* 		Buy
340421
9 0,125 33 1 124.00
340422
19 0,125 66 1 375.00
340423
25 0,125 33 1 325.00
301162
12,7 0,25 33 1 148.00
301163
25,4 0,25 33 1 239.00
301164
50,8 0,25 33 1 419.00
301165
76,2 0,25 33 1 799.00
301166
101,6 0,25 33 1 1,139.00
