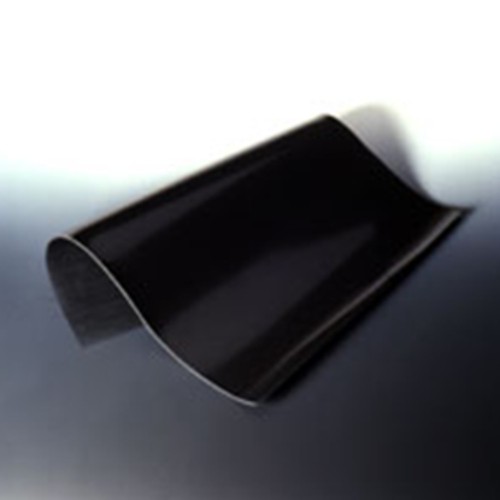

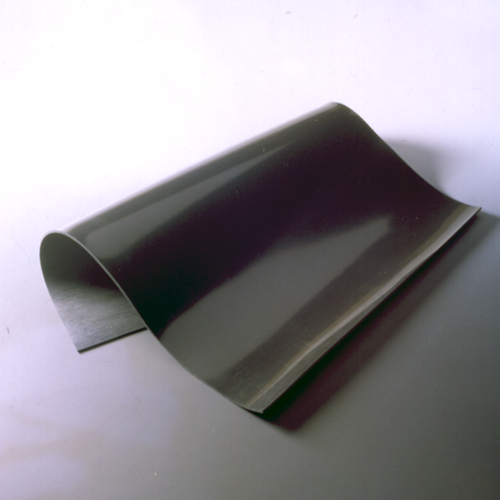

EPDM Plate - Shore 50°

Product specification Very good resistance to weather and aging Very good cold and thermal... more

Product specification

Very good resistance to weather and aging

Very good cold and thermal resistance

Good elastic behavior

Good dielectrical properties

Outstanding elongation at break and tearing strength

Halogen-free

Peroxidically cross-linked

Good resistance to acids and alkalis

Good resistance to hot water, hot steam, glycols, brake fluid, and polar solutions

Not recommended for mineral oils and fuels

Technical specification

Material: EPDM (ethylene-propylene-diene rubber and terpolymer rubber resp.)

Colour: black

Shore hardness A: 50° ±5° (DIN 53505)

Temperature range: -50 to +130 °C

Density: 1.05 g/cm3

Elongation at break: 350 % (DIN 53504)

Tearing strength: 12 MPa (DIN 53504)

Tear propagation resistance: 132.6 N/mm (ASTM 624 D)

Rebound elasticity: 45 %

Compression set: 20 % at +70 °C / 24 h

Surface resistivity: 108 Ohm (DIN EN 100 015/1)

Abrasion: 77 mm3 (DIN ISO 4649)

Burning behaviour: 20 mm/min (FMVSS302)

Tolerance: DIN ISO 3302-1 E2

Regulations: Works standard specification: Volkswagenwerk (VW 2.8.1 G50)

No additional information available.
Item Image Thickness
mm
Abmessung
mm
Einheit
Stück
Price
Euro*
Buy
19568
1 650 x 650 1 159.00
19569
1,5 650 x 650 1 165.00
19570
2 650 x 650 1 171.00
19572
3 650 x 650 1 209.00
19573
4 650 x 650 1 236.00
19574
5 650 x 650 1 271.00
19575
6 650 x 650 1 319.00
19576
1 1300 x 1300 1 266.00
19577
1,5 1300 x 1300 1 307.00
19578
2 1300 x 1300 1 325.00
19580
3 1300 x 1300 1 379.00
19581
4 1300 x 1300 1 507.00
19582
5 1300 x 1300 1 540.00
19583
6 1300 x 1300 1 592.00
