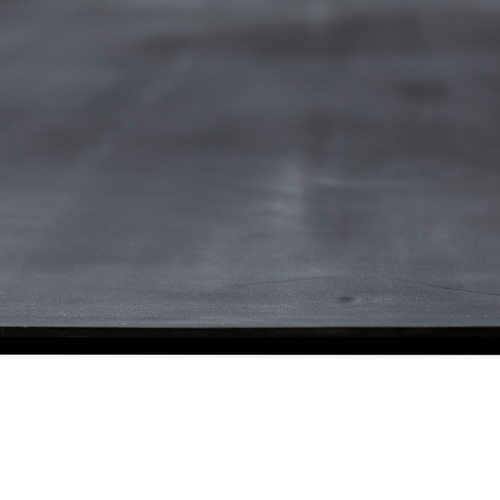

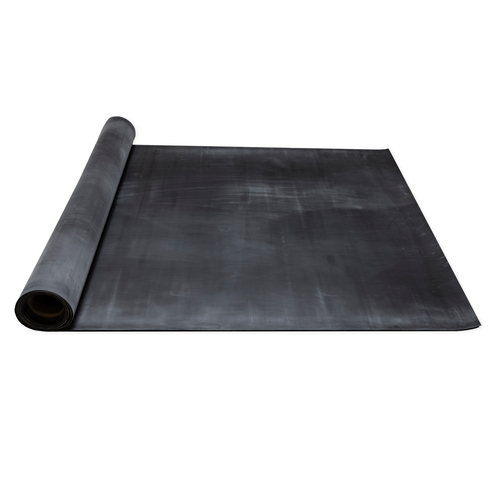

FPM Plate - Shore 70°
Product specification
Very good resistance to ozone and oxygen
Very good resistance to aging and weather
High flame resistance
Highest temperature resistance
Excellent thermal resistance
Good elongation at break
Relative abrasion resistance
Limited flexibility in cold
Sulfur-free
Very good chemical resistance to oil, petrol and acids, limited alkali resistance
Chemical features:
FPM are copolymers of highest quality made of fluorinated hydrocarbons.
Fluorinated rubber belongs to the most expensive elastomers and is used exclusively in chemical-technical application areas according to its highly qualified features.
Its outstanding thermal and chemical properties are unrenounceable especially in the sealing technique.
Basically, a difference is made between copolymer made of vinylidene fluoride with hexafluoro propylene and FPM-terpolymer with improved chemical resistance and flexibility in the cold.
Technical specification
Material: FPM (fluorinated rubber polymer)
Colour: black
Shore hardness A: 70° ±5° (DIN 53505)
Temperature range: -20 to +200 °C, for a short time +250 °C
Density: 1.9 - 2.1 g/cm3
Elongation at break: 270 % (DIN 53504)
Tearing strength: 7 MPa (DIN 53504)
Compression set: 40 % at +175 °C / 24 h
Volume resistivity: 5.5 x 1012 Ohm x cm
Tolerance: DIN ISO 3302-1 E2
Flammability rating: UL 94 V-0
Specific features: bisphenol-crosslinked
Item | Image |
Thickness mm
|
Abmessung mm
|
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|
333895 |
|
0,5 | 500 x 500 | 1 | 220.00 | |
19911 |
|
1 | 500 x 500 | 1 | 342.00 | |
19912 |
|
1,5 | 500 x 500 | 1 | 396.00 | |
19913 |
|
2 | 500 x 500 | 1 | 432.00 | |
19914 |
|
3 | 500 x 500 | 1 | 524.00 | |
19915 |
|
4 | 500 x 500 | 1 | 573.00 | |
19916 |
|
5 | 500 x 500 | 1 | 641.00 | |
333896 |
|
0,5 | 1000 x 1000 | 1 | 675.00 | |
19917 |
|
1 | 1500 x 500 | 1 | 920.00 | |
19918 |
|
1,5 | 1500 x 500 | 1 | 1,070.00 | |
19920 |
|
2 | 1500 x 1000 | 1 | 1,470.00 | |
19921 |
|
3 | 1500 x 1000 | 1 | 2,051.00 | |
19922 |
|
4 | 1500 x 1000 | 1 | 2,438.00 | |
19923 |
|
5 | 1500 x 1000 | 1 | 3,038.00 |
