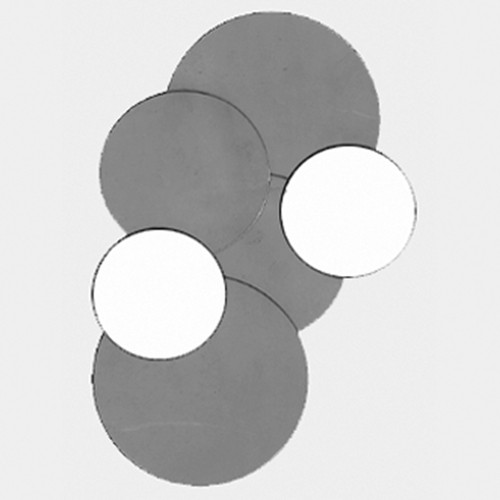

Capillary Pore Membrane made of Polycarbonate

Application area Polycarbonate membranes are recommended for microscopic, chemotactic and... more

Application area

Polycarbonate membranes are recommended for microscopic, chemotactic and cytological studies as well as aerosol filtration and subsequent analysis by X-ray fluorescence spectroscopy.

12.0 and 10.0 µm: general purification, prefiltration, purification and preliminary filtration of caustic fluids such as photoresist, concentrated acids, ester solutions

8.0 µm: as 12.0 µm: microfiltration of alcohols, of chemicals used as reagents

5.0 µm: in cytology, chemotaxis, and gravimetric analysis

3.0 µm: general microfiltration and purification; cytological evaluation of cerebrospinal fluids, chemotaxis, microfiltration of caustic fluids

2.0 µm: chemotaxis

1.0 µm: beer stabilization, prefiltration of serum, ultrapurification of fluids, ultrapurifications of caustic fluids, microfiltration of alcoholic solutions

0.8 µm: aerosol analysis, gravimetric analysis, wine stabilization, microscopic analysis of aerosols, yeasts and mould fungi

0.6 µm: biological determination of cells, wine and milk, plasmapheresis, particle analysis in caustic fluids

0.4 µm: biological determination of fluids, collection of asbestos fibres, dehydration and purification of cellular suspensions, immunology, particle analysis of caustic fluids, analysis of yeast, mould fungi and silicon oxide (silica)

0.2 µm: general sterile filtration, immunology, sterile filtration of caustic fluids

0.1 and 0.08 µm: virus filtration

0.05; 0.03 and 0.015 µm: virus and protein filtration

Product specification

Membranes can stand permanent temperatures of +140 °C (air or steam) for an indefinite time allowing repeated autoclaving. Polyester membranes are hydrophilic with chemical resistance similar to PTFE. Polyester membranes are recommended for filtration of HPLC solutions and samples which are to be analyzed by HPLC.

Technical specification

Thickness: 5 - 10 µm

Bursting pressure: >10 bar

Weight (tare): 1.0 mg/cm2

Density: 1.2 g/cm3

Temperature range for heat-sealing: +230 to +275 °C

Max. temperature: +140 °C

Ash weight: 0.92 µg/cm2

Porosity: 5 - 10 %

Number density of pores: 105 - 6 x 108 pores/cm2

Surface structure: flat and smooth

Optical properties: translucent

Hydrophilia: hydrophilic

Release of fibres: none

Sterilization: autoclavable (+121 °C)

Water absorption: 0.24 % by weight

Biological compatibility: inert

No additional information available.
Item Image Outside Ø
mm
Porengröße
µm
Einheit
Stück
Price
Euro*
Buy
50559
13 10 100 247.00
50578
13 8 100 247.00
50597
13 5 100 247.00
50616
13 3 100 247.00
50654
13 1 100 247.00
50673
13 0,8 100 247.00
50692
13 0,6 100 247.00
50711
13 0,4 100 193.00
50730
13 0,2 100 193.00
50749
13 0,1 100 332.00
50787
13 0,08 100 396.00
50768
13 0,05 100 343.00
50825
13 0,015 100 525.00
50541
25 12 100 279.00
50560
25 10 100 247.00
50579
25 8 100 247.00
50598
25 5 100 247.00
50617
25 3 100 247.00
50636
25 2 100 247.00
50655
25 1 100 247.00
50674
25 0,8 100 247.00
50693
25 0,6 100 247.00
50712
25 0,4 100 204.00
50731
25 0,2 100 204.00
50750
25 0,1 100 375.00
50788
25 0,08 100 514.00
50769
25 0,05 100 482.00
50807
25 0,03 100 525.00
50826
25 0,015 100 589.00
50542
37 12 100 375.00
50561
37 10 100 375.00
50580
37 8 100 300.00
50599
37 5 100 300.00
50637
37 2 100 300.00
50675
37 0,8 100 300.00
50713
37 0,4 100 257.00
50751
37 0,1 100 514.00
50789
37 0,08 100 653.00
50770
37 0,05 100 653.00
50808
37 0,03 100 653.00
50827
37 0,015 100 653.00
50543
43 12 100 396.00
50562
43 10 100 396.00
50581
43 8 100 354.00
50600
43 5 100 354.00
50619
43 3 100 354.00
50638
43 2 100 354.00
50657
43 1 100 354.00
50714
43 0,4 100 321.00
50752
43 0,1 100 632.00
50790
43 0,08 100 760.00
50809
43 0,03 100 760.00
50544
47 12 100 407.00
50563
47 10 100 375.00
50582
47 8 100 354.00
50601
47 5 100 354.00
50620
47 3 100 354.00
50639
47 2 100 354.00
50658
47 1 100 354.00
50677
47 0,8 100 354.00
50696
47 0,6 100 354.00
50715
47 0,4 100 289.00
50734
47 0,2 100 289.00
50753
47 0,1 100 739.00
50791
47 0,08 100 867.00
50772
47 0,05 100 867.00
50810
47 0,03 100 867.00
50545
50 12 100 482.00
50564
50 10 100 471.00
50583
50 8 100 407.00
50602
50 5 100 407.00
50621
50 3 100 407.00
50640
50 2 100 407.00
50659
50 1 100 407.00
50678
50 0,8 100 407.00
50697
50 0,6 100 407.00
50716
50 0,4 100 354.00
50735
50 0,2 100 354.00
50792
50 0,08 100 921.00
50773
50 0,05 100 921.00
50811
50 0,03 100 921.00
50546
76 12 100 696.00
50603
76 5 100 600.00
50698
76 0,6 100 589.00
50793
76 0,08 100 1,231.00
50549
90 12 100 856.00
50587
90 8 100 792.00
50606
90 5 100 792.00
50644
90 2 100 835.00
