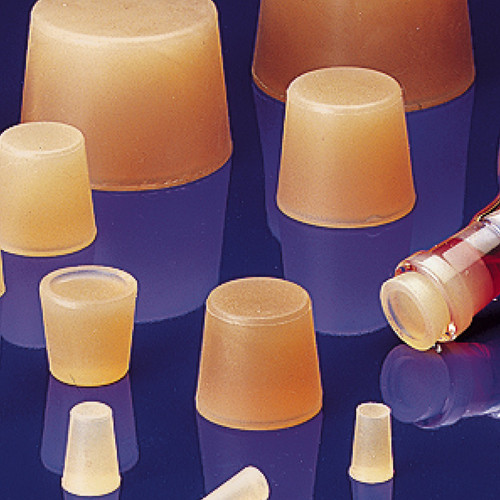

Stopper made of Silicone

Product specification Relatively resistant to most organic solvents, chemically neutral,... more

Product specification

Relatively resistant to most organic solvents, chemically neutral, non-toxic, resistant to ozone, physiologically harmless, floating, resistant to aging.

Technical specification

Material: silicone (silicone rubber)

Colour: translucent

Shore hardness A: 50° ±5°

Density: 1.13 ±0,02

Temperature range: -50 to +180 °C, for a short period +220 °C

Tensile strength: 9.7 MPa (DIN 53 504 / ISO 37)

Elongation at break: 460 % (DIN 53 504 / ISO 37)

Determination of tear strength: 23.5 N/mm2 (ISO 34:1-B,2mm)

Rebound elasticity: 49 % (DIN 53512)

Sterilization: autoclavable (+136 °C)

Tolerance: according to DIN 7715 T2 M3

No additional information available.

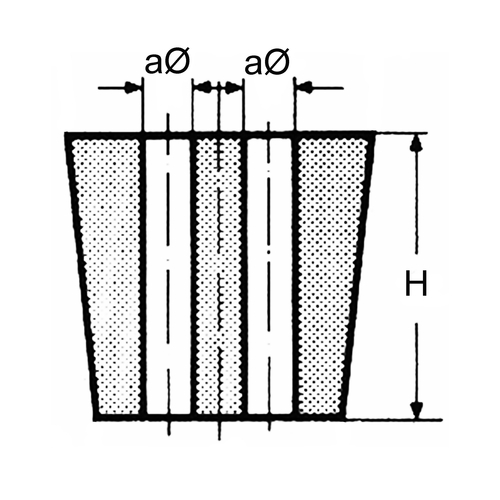

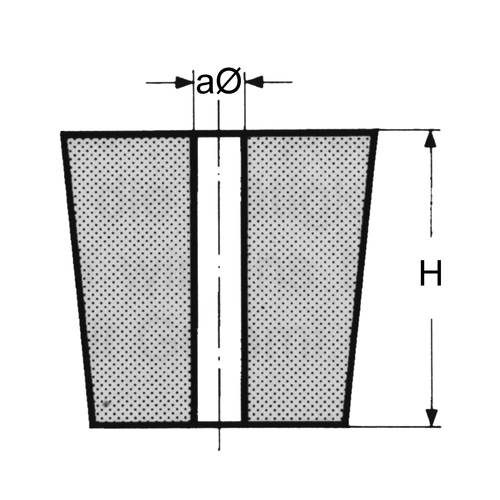

Item Image Ø bottom
mm
Ø top
mm
Height
mm
Ø a
mm
Bores Unit
piece
Price
Euro*
Buy
40395
3,5 6,5 15 50 31.00
40396
5 9 20 50 40.00
40397
7 12 20 50 49.00
40398
10,5 14,5 20 50 76.00
40399
10,5 14,5 20 3 1 40 72.00
40400
12,5 16,5 20 40 79.00
40401
12,5 16,5 20 3 1 40 93.00
40402
14 18 20 40 97.00
40403
14 18 20 3 1 30 81.00
40404
14 18 20 3 2 30 108.00
40405
17 22 25 20 88.00
40406
17 22 25 4 1 20 108.00
40407
17 22 25 4 2 20 108.00
40408
18 24 30 15 81.00
40409
18 24 30 4 1 15 94.00
40410
18 24 30 4 2 15 94.00
40411
21 27 30 10 72.00
40412
21 27 30 5 1 10 75.00
40413
21 27 30 5 2 10 77.00
40414
23 29 30 10 77.00
40415
23 29 30 5 1 10 90.00
40416
23 29 30 5 2 10 90.00
40417
26 32 30 10 91.00
40418
26 32 30 6 1 10 91.00
40419
26 32 30 6 2 10 91.00
40420
29 35 30 5 63.00
40421
29 35 30 6 1 5 67.00
40422
29 35 30 6 2 5 67.00
40423
31 38 35 5 69.00
40424
31 38 35 7 1 5 72.00
40425
31 38 35 7 2 5 76.00
40426
36 44 40 3 59.00
40427
41 49 40 3 72.00
40428
47 55 40 2 68.00
40429
50,5 59,5 45 2 81.00
40430
56 65 45 2 99.00
40431
60 70 50 1 76.00
40432
64,5 75,5 55 1 81.00
40433
71 83 60 1 106.00
40434
79 92 65 1 130.00
40435
87 100 65 1 152.00
40436
94 107 65 1 171.00
