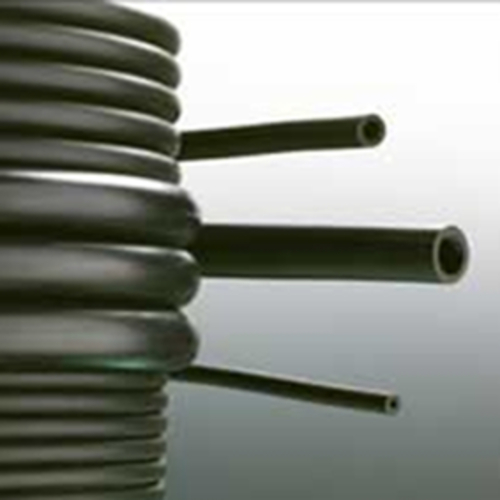

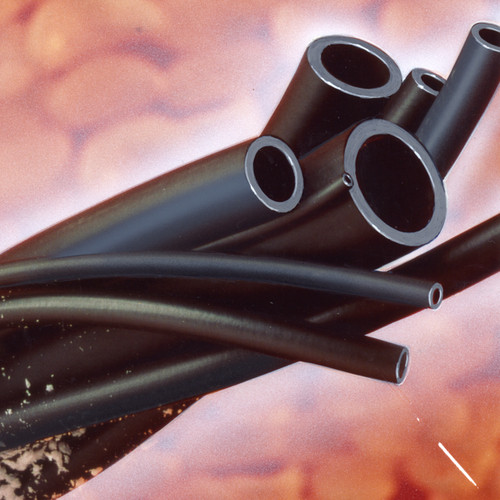

FPM-Chemieschlauch - FDA-konform

Preview: FPM-Chemieschlauch - FDA-konform Preview: FPM-Chemieschlauch - FDA-konform Preview: FPM-Chemieschlauch - FDA-konform Preview: FPM-Chemieschlauch - FDA-konform
FPM-Chemieschlauch - FDA-konform
FPM-Chemieschlauch - FDA-konform
FPM-Chemieschlauch - FDA-konform
FPM-Chemieschlauch - FDA-konform


Description General Information
Description
Einsatzgebiet Labor, Chemie, Petrochemie, Maschinen- und Gerätebau, Gas- und... more
Close menu

Einsatzgebiet

Labor, Chemie, Petrochemie, Maschinen- und Gerätebau, Gas- und Ölleitungen, Hydraulik, Tank- und Behälterbau, Kraftstoffleitungen für die Automobil-, Schiff- und Flugzeugindustrie, Pharma-, Kosmetik- und Lebensmittelproduktion, pastöse und ölige Flüssigkeiten.

Produktspezifikation

Spezielles Fluorelastomer mit hohem Fluoranteil

FDA-konformes Rohmaterial

Besonders gasundurchlässig

Sehr gut beständig gegen aliphatische, aromatische und halogensubstituierte Kohlenwasserstoffe, Benzin, Dieselkraftstoffe, Biodiesel, Öle, sowie Glykole, Kühl- und Hydraulikflüssigkeiten

Bei Kontakt mit Methanol, Biodiesel und Wasserdampf zu empfehlen

Technische Spezifikation

Werkstoff: FPM (Fluorkautschuk)

Shore-Härte A: 70° ±5°

Farbe: schwarz

Temperaturbereich: -8 bis +200 °C, kurzfristig bis +300 °C (trockene Luft)

Toleranz: DIN ISO 3302-1 E2

Regelwerk: FDA 21 CFR §177.2600, 2002/95/EG, 2011/65/EG, UL 94 V-0

General Information
General Information FPM For use in analytical technology, medical engineering, chemical... more
Close menu

General Information FPM

For use in analytical technology, medical engineering, chemical industry, biotechnology, laboratory technology and process engineering.

Extraordinary chemical resistance to hydrocarbons, mineral, vegetable, and animal oils, aromatic and chlorine containing solvents, many acids, alkalis, and oxidizing agents. Unstable to polar solvents and certain lyes.

Conveying tubing made of high-quality mixed polymers of fluorinated hydrocarbons

Very good chemical resistance

Very good heat resistance

Very good resistance to effects of ozone, oxygen, aging, and weather

Flame-resistant

Smooth surface

Low abrasion

Highest mechanical strength

Maximum dimensional stability

Material: FPM (fluorinated rubber)

Colour: black

Temperature range: -20 to +200 °C, for a short period +250 °C

Permeability: extremely low, nearly gas-tight

Dielectric constant: 15 at 50 Hz

Volume Resistivity: 2 x 1013 Ohm x cm

Abrasion: 190 mm3

Tolerances: DIN ISO 3302-1 E2
